Black malleable cast iron fitting with male union sleeve and conical seal 1/2" (15/21) brute / noire

Black or galvanized cast iron fitting
Raccord fonte malléable fileté Manchon union mâle à joint conique
search
  • Raccord fonte malléable fileté Manchon union mâle à joint conique
  • Raccord fonte malléable fileté Manchon union mâle à joint conique
  • Raccord fonte malléable fileté Manchon union mâle à joint conique
  • Raccord fonte malléable fileté Manchon union mâle à joint conique
  • Raccord fonte malléable fileté Manchon union mâle à joint conique
  • Raccord fonte malléable fileté Manchon union mâle à joint conique
  • Raccord fonte malléable fileté Manchon union mâle à joint conique

Photos non contractuelles

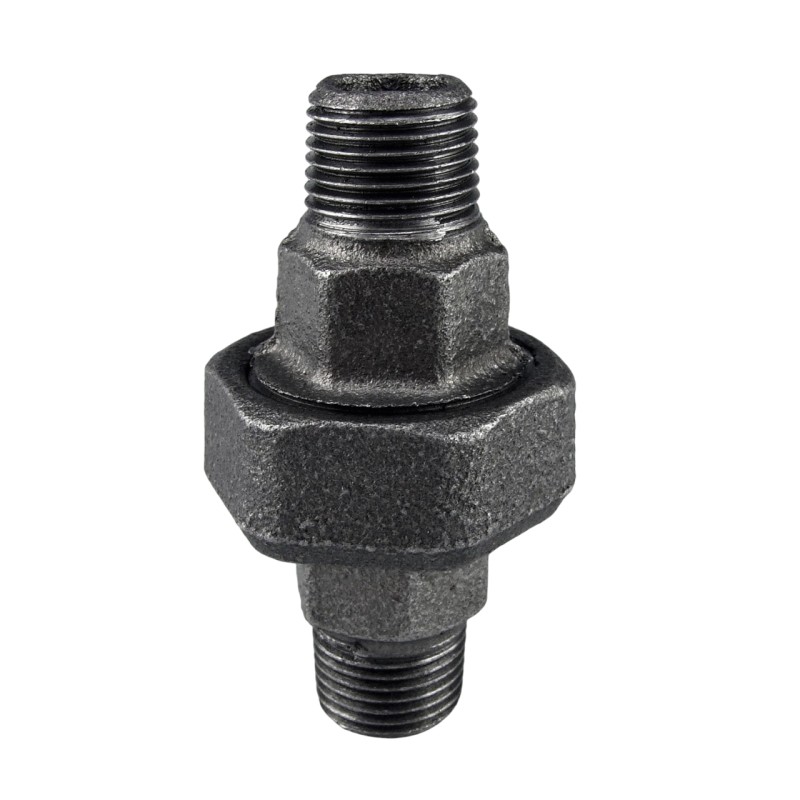

Black male malleable cast iron union fitting with conical seal for carbon steel pipe

Application:

These fittings are intended for the transport of fluids or gases in steel piping.

Black finish coating.

Product not authorized for natural gas and butane/propane applications

Plus de détails
Normes et certifications : ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21) brute / noire
Are you an individual?
Are you a professional?

Log in to find out your discount.

€11.32 Tax included

9.43 € tax excl.

Unité de vente : Pièce
00344N000000015
Surface Finish: Brute / Noire
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Black malleable cast iron fitting with male union sleeve and conical seal

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Material: Threaded fittings are made from W400-05 or W350-04 malleable cast iron

Maximum temperature: For threaded fittings with diameters from 1/8" to 1" inclusive, the working pressure is 25 bar at an operating temperature of -20°C to +120°C. For threaded fittings with diameters from 1-1/4" to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Thread: These fittings have a gas-tight internal thread with a thread seal. The internal thread is parallel (Rp) and the external thread is tapered (R) in accordance with ISO 7-1.

Coating:

Hot-dip galvanizing (zinc coating applied by hot-dip immersion) (If the fittings are supplied in other ferrous materials, other zinc-based coatings may be used in agreement with the buyer.)

Standards:

All malleable cast iron threaded fittings comply with standard NF EN 10242 and are ISO 9001 certified.

They also comply with the requirements of the Ministerial Decree of May 29, 1997, regarding drinking water systems; in accordance with European and international standards, malleable cast iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Black malleable cast iron fitting with male union sleeve and conical seal

Data sheet

Reference
00344N000000015
Finition corps
Noire
Matière
Fonte malléable W400-05 ou W350-04
Forme
Union
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications
Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
344

Download documentation

FT Raccords fonte malléable 131G

Fiche technique Raccords filetés fonte malléable

Download (1.14MB)

Caractéristiques liées à la version du produit Black malleable cast iron fitting with male union sleeve and conical seal

Voici la liste des références et poids correspondants aux options séléctionnées.
00344N000000008 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1/4" (8/13)
Surface Finish Brute / Noire
Diameter (in inches) 1/4" (8/13)
Packed weight 0,11025kg
12.45 € tax excl.
Consulter
00344N000000025 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1" (26/34)
Surface Finish Brute / Noire
Diameter (in inches) 1" (26/34)
Packed weight 0,567kg
12.87 € tax excl.
Consulter
00344N000000020 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 3/4" (20/27)
Surface Finish Brute / Noire
Diameter (in inches) 3/4" (20/27)
Packed weight 0,39165kg
10.92 € tax excl.
Consulter
00344N000000050 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 2" (50/60)
Surface Finish Brute / Noire
Diameter (in inches) 2" (50/60)
Packed weight 1,6065kg
45.57 € tax excl.
Consulter
00344N000000015 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1/2" (15/21)
Surface Finish Brute / Noire
Diameter (in inches) 1/2" (15/21)
Packed weight 0,2583kg
9.43 € tax excl.
Consulter
00344N000000040 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1"1/2 (40/49)
Surface Finish Brute / Noire
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,05kg
24.99 € tax excl.
Consulter
00344N000000010 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 3/8" (12/17)
Surface Finish Brute / Noire
Diameter (in inches) 3/8" (12/17)
Packed weight 0,147kg
10.4 € tax excl.
Consulter
00344N000000032 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1"1/4 (33/42)
Surface Finish Brute / Noire
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,86415kg
22.33 € tax excl.
Consulter
Référence - Désignation Surface Finish Diameter (in inches) Packed weight Prix
00344N000000008 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1/4" (8/13) Brute / Noire 1/4" (8/13) 0,11025kg 12.45 € tax excl.
00344N000000025 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1" (26/34) Brute / Noire 1" (26/34) 0,567kg 12.87 € tax excl.
00344N000000020 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 3/4" (20/27) Brute / Noire 3/4" (20/27) 0,39165kg 10.92 € tax excl.
00344N000000050 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 2" (50/60) Brute / Noire 2" (50/60) 1,6065kg 45.57 € tax excl.
00344N000000015 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1/2" (15/21) Brute / Noire 1/2" (15/21) 0,2583kg 9.43 € tax excl.
00344N000000040 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1"1/2 (40/49) Brute / Noire 1"1/2 (40/49) 1,05kg 24.99 € tax excl.
00344N000000010 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 3/8" (12/17) Brute / Noire 3/8" (12/17) 0,147kg 10.4 € tax excl.
00344N000000032 - Black malleable cast iron fitting with male union sleeve and conical seal - Brute / Noire - 1"1/4 (33/42) Brute / Noire 1"1/4 (33/42) 0,86415kg 22.33 € tax excl.
