Black malleable cast iron double 180° curved threaded fitting 1/2" (15/21) brute / noire

Black or galvanized cast iron fitting
Raccord fonte noir fileté courbe FF double 180° fonte malléable
search
  • Raccord fonte noir fileté courbe FF double 180° fonte malléable

Photo non contractuelle

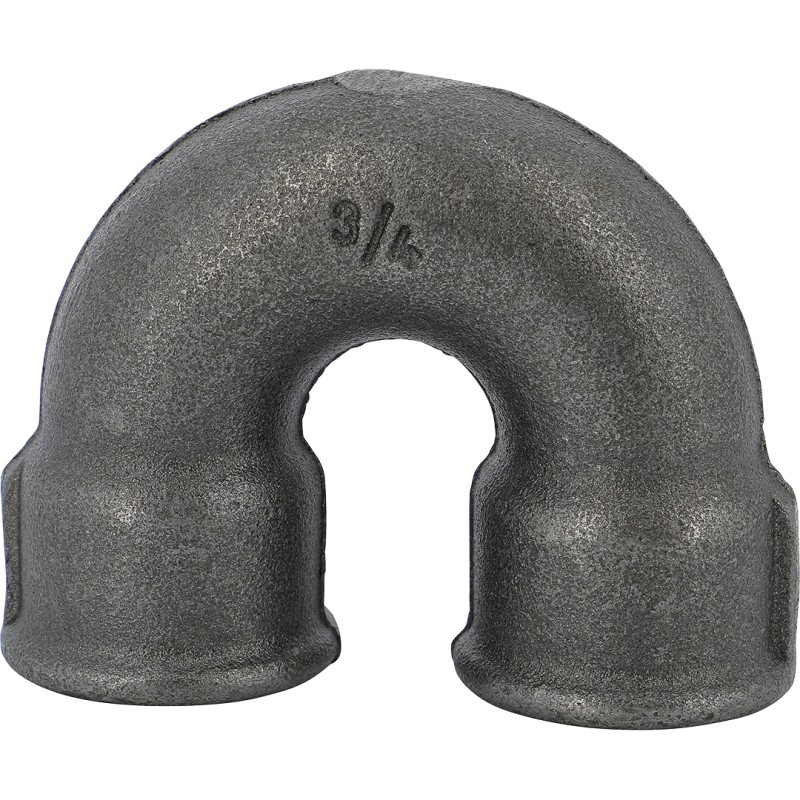

Black 180° double-bend threaded malleable iron fitting

Application:

These fittings must be used for transporting water or liquids.

Black finish coating

Product not approved for natural gas or butane/propane applications

Plus de détails
Normes et certifications : ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21) brute / noire
Are you an individual?
Are you a professional?

Log in to find out your discount.

€12.05 Tax included

10.04 € tax excl.

Unité de vente : Pièce
00060N000000015
Surface Finish: Brute / Noire
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Black malleable cast iron double 180° curved threaded fitting

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Material: The threaded fittings are made from W400-05 or W350-04 malleable cast iron

Maximum temperature: For threaded fittings with diameters from 1/2" to 1" (inclusive), the working pressure is 25 bar at an operating temperature of -20°C to +120°C. For threaded fittings with a diameter of 1-1/4", the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Thread: These fittings have a gas-tight internal thread with a thread seal. The internal thread is parallel (Rp) and the external thread is tapered (R) in accordance with ISO 7-1.

Coating:

Hot-dip galvanizing (zinc coating applied by hot-dip immersion) (If the fittings are supplied in other ferrous materials, other zinc-based coatings may be used in agreement with the buyer.)

Standards:

All malleable cast iron threaded fittings comply with standard NF EN 10242 and are ISO 9001 certified.

They also comply with the requirements of the Ministerial Decree of May 29, 1997, regarding drinking water systems; in accordance with European and international standards, malleable cast iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Black malleable cast iron double 180° curved threaded fitting

Data sheet

Reference
00060N000000015
Finition corps
Noire
Matière
Fonte malléable W400-05 ou W350-04
Forme
Coude 180°
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Eau
Normes et certifications
Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
060

Download documentation

FT FONTE MALLEABLE

fiche technique fonte malleable

Download (1.14MB)

Caractéristiques liées à la version du produit Black malleable cast iron double 180° curved threaded fitting

Voici la liste des références et poids correspondants aux options séléctionnées.
00060N000000025 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 1" (26/34)
Surface Finish Brute / Noire
Diameter (in inches) 1" (26/34)
Packed weight 0,6195kg
19.5 € tax excl.
Consulter
00060N000000050 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 2" (50/60)
Surface Finish Brute / Noire
Diameter (in inches) 2" (50/60)
Packed weight 1,995kg
48.46 € tax excl.
Consulter
00060N000000020 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 3/4" (20/27)
Surface Finish Brute / Noire
Diameter (in inches) 3/4" (20/27)
Packed weight 0,462kg
15.37 € tax excl.
Consulter
00060N000000040 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 1"1/2 (40/49)
Surface Finish Brute / Noire
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,344kg
31.79 € tax excl.
Consulter
00060N000000015 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 1/2" (15/21)
Surface Finish Brute / Noire
Diameter (in inches) 1/2" (15/21)
Packed weight 0,294kg
10.04 € tax excl.
Consulter
00060N000000032 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 1"1/4 (33/42)
Surface Finish Brute / Noire
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,05kg
26.85 € tax excl.
Consulter
Référence - Désignation Surface Finish Diameter (in inches) Packed weight Prix
00060N000000025 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 1" (26/34) Brute / Noire 1" (26/34) 0,6195kg 19.5 € tax excl.
00060N000000050 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 2" (50/60) Brute / Noire 2" (50/60) 1,995kg 48.46 € tax excl.
00060N000000020 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 3/4" (20/27) Brute / Noire 3/4" (20/27) 0,462kg 15.37 € tax excl.
00060N000000040 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 1"1/2 (40/49) Brute / Noire 1"1/2 (40/49) 1,344kg 31.79 € tax excl.
00060N000000015 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 1/2" (15/21) Brute / Noire 1/2" (15/21) 0,294kg 10.04 € tax excl.
00060N000000032 - Black malleable cast iron double 180° curved threaded fitting - Brute / Noire - 1"1/4 (33/42) Brute / Noire 1"1/4 (33/42) 1,05kg 26.85 € tax excl.
