Round threaded flange with mounting hole, made of malleable cast iron 1/2" (15/21) brute / noire

Black or galvanized cast iron fitting
Bride ronde taraudée avec trou de fixation fonte malléable
search
  • Bride ronde taraudée avec trou de fixation fonte malléable
  • Bride ronde taraudée avec trou de fixation fonte malléable
  • Bride ronde taraudée avec trou de fixation fonte malléable
  • Bride ronde taraudée avec trou de fixation fonte malléable
  • Bride ronde taraudée avec trou de fixation fonte malléable
  • Bride ronde taraudée avec trou de fixation fonte malléable

Photos non contractuelles

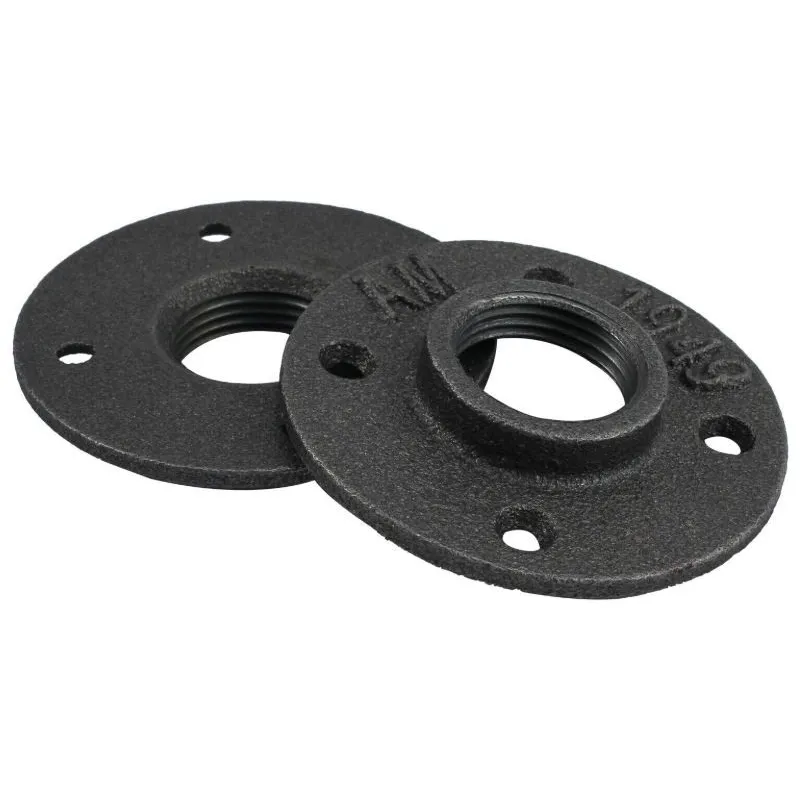

Round threaded flange with mounting hole, made of malleable cast iron

Application:

Water distribution.

Coating available in black finish

Product not approved for natural gas and butane/propane applications

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21) brute / noire
Are you an individual?
Are you a professional?

Log in to find out your discount.

€4.45 Tax included

3.71 € tax excl.

Unité de vente : Pièce
321BTN000000015
Surface Finish: Brute / Noire
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Round threaded flange with mounting hole, made of malleable cast iron

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Material: The threaded fittings are made from W400-05 malleable cast iron grades in accordance with EN 1562.

Maximum temperature and pressure: 9B max / -0°C to +120°C

Thread: These fittings have an internal gas-thread with a thread seal. The internal thread is parallel (Rp) and the external thread is tapered (R) in accordance with ISO 7-1.

Standards:

All malleable cast iron threaded fittings comply with standard NF EN 10242.

Caractéristiques techniques Round threaded flange with mounting hole, made of malleable cast iron

Data sheet

Reference
321BTN000000015
Finition corps
Noire
Matière
Fonte malléable W400-05 ou W350-04
Forme
Bride
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
1" 1"1/4 1/2" 3/4"
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Eau
Normes et certifications
Filetage ISO 7-1 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
321BTN

Download documentation

FT FONTE MALLEABLE

fiche technique fonte malleable

Download (1.14MB)

Caractéristiques liées à la version du produit Round threaded flange with mounting hole, made of malleable cast iron

Voici la liste des références et poids correspondants aux options séléctionnées.
321BTN000000032 - Round threaded flange with mounting hole, made of malleable cast iron - Brute / Noire - 1"1/4 (33/42)
Surface Finish Brute / Noire
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,798kg
7.12 € tax excl.
Consulter
321BTN000000025 - Round threaded flange with mounting hole, made of malleable cast iron - Brute / Noire - 1" (26/34)
Surface Finish Brute / Noire
Diameter (in inches) 1" (26/34)
Packed weight 0,3885kg
5.23 € tax excl.
Consulter
321BTN000000020 - Round threaded flange with mounting hole, made of malleable cast iron - Brute / Noire - 3/4" (20/27)
Surface Finish Brute / Noire
Diameter (in inches) 3/4" (20/27)
Packed weight 0,35175kg
4.52 € tax excl.
Consulter
321BTN000000015 - Round threaded flange with mounting hole, made of malleable cast iron - Brute / Noire - 1/2" (15/21)
Surface Finish Brute / Noire
Diameter (in inches) 1/2" (15/21)
Packed weight 0,2205kg
3.71 € tax excl.
Consulter
Référence - Désignation Surface Finish Diameter (in inches) Packed weight Prix
321BTN000000032 - Round threaded flange with mounting hole, made of malleable cast iron - Brute / Noire - 1"1/4 (33/42) Brute / Noire 1"1/4 (33/42) 0,798kg 7.12 € tax excl.
321BTN000000025 - Round threaded flange with mounting hole, made of malleable cast iron - Brute / Noire - 1" (26/34) Brute / Noire 1" (26/34) 0,3885kg 5.23 € tax excl.
321BTN000000020 - Round threaded flange with mounting hole, made of malleable cast iron - Brute / Noire - 3/4" (20/27) Brute / Noire 3/4" (20/27) 0,35175kg 4.52 € tax excl.
321BTN000000015 - Round threaded flange with mounting hole, made of malleable cast iron - Brute / Noire - 1/2" (15/21) Brute / Noire 1/2" (15/21) 0,2205kg 3.71 € tax excl.
