Galvanized malleable iron threaded fitting Female union with conical joint 1/2" (15/21) galvanisée / galva

Black or galvanized cast iron fitting
Raccord fonte malléable galvanisé fileté Coude union femelle à joint conique
search
  • Raccord fonte malléable galvanisé fileté Coude union femelle à joint conique

Photo non contractuelle

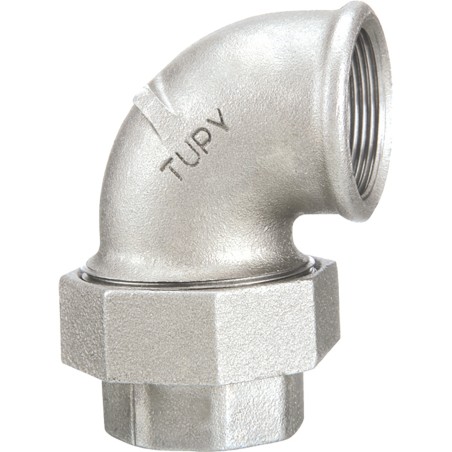

Galvanized malleableiron fitting 90° female union elbow with conical joint for carbon steel pipe

Application:

These fittings must be used to transport fluids or gases in steel pipes.

Coating available in black or hot-dip galvanized finish

Not authorized for natural gas and butane/propane applications

Plus de détails
Normes et certifications : ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21) galvanisée / galva
Are you an individual?
Are you a professional?

Log in to find out your discount.

€5.58 Tax included

4.65 € tax excl.

Unité de vente : Pièce
00096G000000015
Surface Finish: Galvanisée / Galva
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Galvanized malleable iron threaded fitting Female union with conical joint

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications :

Material: Threaded fittings are made from malleable iron grades W400-05 or W350-04

Maximum temperature: Threaded fittings from 1/8" to 1" 'inclusive have a working pressure of 25 bar at an operating temperature of -20°C to +120°C. For threaded connections from 1"1/4 to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Threading: These fittings are internally threaded to the gas pitch, with a thread seal. The internal thread is parallel (Rp) and the external thread tapered (R) in accordance with ISO 7-1.

Coating :

Hot-dip galvanized (zinc coating applied by hot dipping) (If fittings are supplied in other ferrous materials, other zinc-based coatings may be used by agreement with the purchaser)

Standards :

All threaded malleable iron fittings comply with NF EN 10242 and are ISO 9001 quality-certified.

They also comply with the requirements of the French ministerial decree of May 29, 1997 on A.C.S. According to European and international standards, malleable cast-iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Galvanized malleable iron threaded fitting Female union with conical joint

Data sheet

Reference
00096G000000015
Finition corps
Galvanisée / Galva
Matière
Fonte malléable W400-05 ou W350-04
Forme
Coude union 90°
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications
Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
96

Caractéristiques liées à la version du produit Galvanized malleable iron threaded fitting Female union with conical joint

Voici la liste des références et poids correspondants aux options séléctionnées.
00096G000000040 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1"1/2 (40/49)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,134kg
15.24 € tax excl.
Consulter
00096G000000015 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1/2" (15/21)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1/2" (15/21)
Packed weight 0,273kg
4.65 € tax excl.
Consulter
00096G000000032 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1"1/4 (33/42)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,84kg
12.77 € tax excl.
Consulter
00096G000000080 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 3" (80/90)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3" (80/90)
Packed weight 3,7275kg
71.37 € tax excl.
Consulter
00096G000000010 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 3/8" (12/17)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3/8" (12/17)
Packed weight 0,15015kg
11.7 € tax excl.
Consulter
00096G000000025 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1" (26/34)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1" (26/34)
Packed weight 0,5355kg
7.67 € tax excl.
Consulter
00096G000000065 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 2"1/2 (66/76)
Surface Finish Galvanisée / Galva
Diameter (in inches) 2"1/2 (66/76)
Packed weight 2,9295kg
54.96 € tax excl.
Consulter
00096G000000008 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1/4" (8/13)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1/4" (8/13)
Packed weight 0,1218kg
12.32 € tax excl.
Consulter
00096G000000020 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 3/4" (20/27)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3/4" (20/27)
Packed weight 0,42kg
5.36 € tax excl.
Consulter
00096G000000050 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 2" (50/60)
Surface Finish Galvanisée / Galva
Diameter (in inches) 2" (50/60)
Packed weight 1,785kg
25.68 € tax excl.
Consulter
Référence - Désignation Surface Finish Diameter (in inches) Packed weight Prix
00096G000000040 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1"1/2 (40/49) Galvanisée / Galva 1"1/2 (40/49) 1,134kg 15.24 € tax excl.
00096G000000015 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1/2" (15/21) Galvanisée / Galva 1/2" (15/21) 0,273kg 4.65 € tax excl.
00096G000000032 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1"1/4 (33/42) Galvanisée / Galva 1"1/4 (33/42) 0,84kg 12.77 € tax excl.
00096G000000080 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 3" (80/90) Galvanisée / Galva 3" (80/90) 3,7275kg 71.37 € tax excl.
00096G000000010 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 3/8" (12/17) Galvanisée / Galva 3/8" (12/17) 0,15015kg 11.7 € tax excl.
00096G000000025 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1" (26/34) Galvanisée / Galva 1" (26/34) 0,5355kg 7.67 € tax excl.
00096G000000065 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 2"1/2 (66/76) Galvanisée / Galva 2"1/2 (66/76) 2,9295kg 54.96 € tax excl.
00096G000000008 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 1/4" (8/13) Galvanisée / Galva 1/4" (8/13) 0,1218kg 12.32 € tax excl.
00096G000000020 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 3/4" (20/27) Galvanisée / Galva 3/4" (20/27) 0,42kg 5.36 € tax excl.
00096G000000050 - Galvanized malleable iron threaded fitting Female union with conical joint - Galvanisée / Galva - 2" (50/60) Galvanisée / Galva 2" (50/60) 1,785kg 25.68 € tax excl.
