Galvanized malleable iron threaded fitting Male nipple right/left thread 1/2" (15/21) galvanisée / galva

Black or galvanized cast iron fitting
Raccord fonte malléable noire fileté Mamelon mâle filetage droite/gauche
search

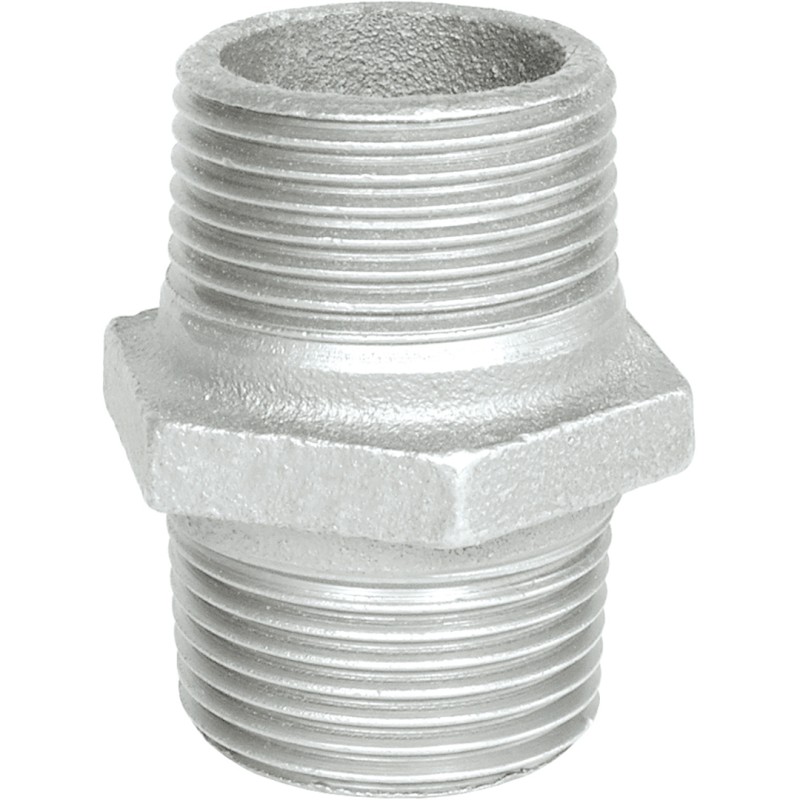

  • Raccord fonte malléable noire fileté Mamelon mâle filetage droite/gauche

Photo non contractuelle

Male galvanized malleable iron nipple right/left thread for carbon steel tube

Application:

These fittings are to be used for conveying fluids or gases in steel pipes.

Coating available in black or hot-dip galvanized finish

Not authorized for natural gas and butane/propane applications

Plus de détails
Normes et certifications : ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21) galvanisée / galva
Are you an individual?
Are you a professional?

Log in to find out your discount.

€2.89 Tax included

2.41 € tax excl.

Unité de vente : Pièce
00281G000000015
Surface Finish: Galvanisée / Galva
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Galvanized malleable iron threaded fitting Male nipple right/left thread

Technical specifications :

Material: Threaded fittings are made from malleable iron grades W400-05 or W350-04

Maximum temperature: Threaded fittings from 1/8" to 1" 'inclusive have a working pressure of 25 bar at an operating temperature of -20°C to +120°C. For threaded connections from 1"1/4 to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Threading: These fittings are internally threaded to the gas pitch, with a thread seal. The internal thread is parallel (Rp) and the external thread tapered (R) in accordance with ISO 7-1.

Coating :

Hot-dip galvanized (zinc coating applied by hot dipping) (If fittings are supplied in other ferrous materials, other zinc-based coatings may be used by agreement with the purchaser)

Standards :

All threaded malleable iron fittings comply with NF EN 10242 and are ISO 9001 quality-certified.

They also comply with the requirements of the French ministerial decree of May 29, 1997 on A.C.S. According to European and international standards, malleable cast-iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Galvanized malleable iron threaded fitting Male nipple right/left thread

Data sheet

Reference
00281G000000015
Finition corps
Galvanisée / Galva
Matière
Fonte malléable W400-05 ou W350-04
Forme
Mamelon
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications
Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
281

Caractéristiques liées à la version du produit Galvanized malleable iron threaded fitting Male nipple right/left thread

Voici la liste des références et poids correspondants aux options séléctionnées.
00281G000000015 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 1/2" (15/21)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1/2" (15/21)
Packed weight 0,0777kg
2.41 € tax excl.
Consulter
00281G000000040 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 1"1/2 (40/49)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1"1/2 (40/49)
Packed weight 0,3108kg
8.32 € tax excl.
Consulter
00281G000000010 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 3/8" (12/17)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3/8" (12/17)
Packed weight 0,0462kg
4.88 € tax excl.
Consulter
00281G000000032 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 1"1/4 (33/42)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,30135kg
7.02 € tax excl.
Consulter
00281G000000025 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 1" (26/34)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1" (26/34)
Packed weight 0,18165kg
4.97 € tax excl.
Consulter
00281G000000020 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 3/4" (20/27)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3/4" (20/27)
Packed weight 0,1134kg
2.96 € tax excl.
Consulter
Référence - Désignation Surface Finish Diameter (in inches) Packed weight Prix
00281G000000015 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 1/2" (15/21) Galvanisée / Galva 1/2" (15/21) 0,0777kg 2.41 € tax excl.
00281G000000040 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 1"1/2 (40/49) Galvanisée / Galva 1"1/2 (40/49) 0,3108kg 8.32 € tax excl.
00281G000000010 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 3/8" (12/17) Galvanisée / Galva 3/8" (12/17) 0,0462kg 4.88 € tax excl.
00281G000000032 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 1"1/4 (33/42) Galvanisée / Galva 1"1/4 (33/42) 0,30135kg 7.02 € tax excl.
00281G000000025 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 1" (26/34) Galvanisée / Galva 1" (26/34) 0,18165kg 4.97 € tax excl.
00281G000000020 - Galvanized malleable iron threaded fitting Male nipple right/left thread - Galvanisée / Galva - 3/4" (20/27) Galvanisée / Galva 3/4" (20/27) 0,1134kg 2.96 € tax excl.
