Galvanized malleable iron threaded fitting Reduced female elbow galvanisée / galva 1/4" - 1/8"

Name: Galvanized malleable iron threaded fitting Reduced female elbow galvanisée / galva 1/4 - 1/8
Brand: THERSANE
SKU: 0090RG000000806
Price: 6.9 EUR
Availability: InStock

Black or galvanized cast iron fitting

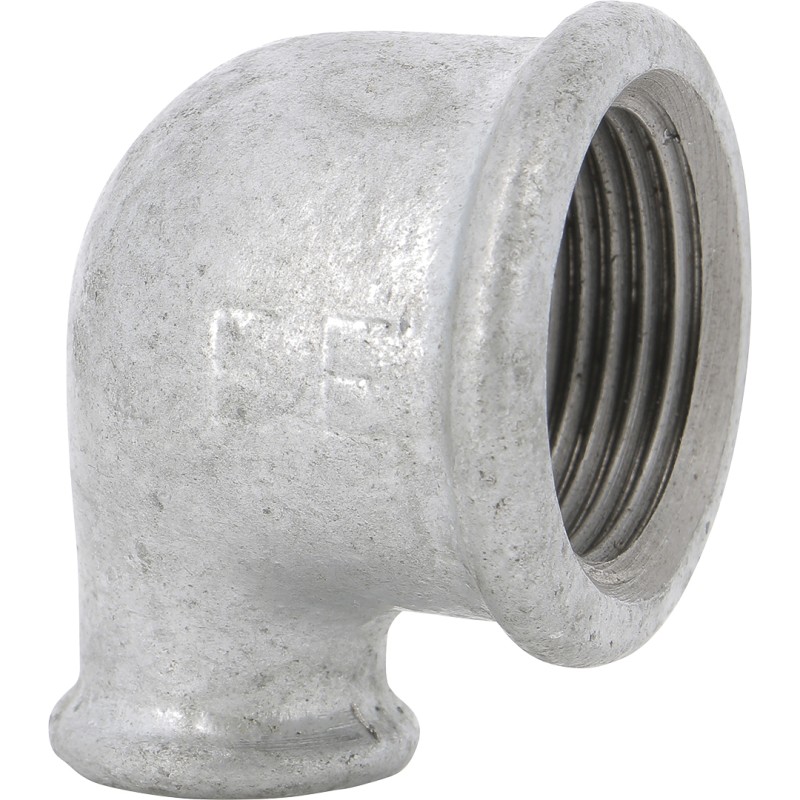

Raccord fonte malléable fileté coude réduit femelle

Photo non contractuelle

Galvanized malleable iron fitting 90° female reduced elbow for carbon steel pipe

Application:

These fittings must be used to transport fluids or gases in steel pipes.

Coating available in black or hot-dip galvanized finish

Not authorized for natural gas and butane/propane applications

Plus de détails

Type de raccordement : Á visser BSP (pas du gaz)

galvanisée / galva 1/4" - 1/8"

Are you an individual?

Are you a professional?

€6.90 Tax included

5.75 € tax excl.

Unité de vente : Pièce

Reference : 0090RG000000806

Surface Finish: Galvanisée / Galva

Galvanisée / Galva

Diamètre Ø: 1/4" - 1/8"

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Complément d'information Galvanized malleable iron threaded fitting Reduced female elbow

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications :

Material: Threaded fittings are made from malleable iron grades W400-05 or W350-04

Maximum temperature: Threaded fittings from 1/8" to 1" 'inclusive have a working pressure of 25 bar at an operating temperature of -20°C to +120°C. For threaded connections from 1"1/4 to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Threading: These fittings are internally threaded to the gas pitch, with a thread seal. The internal thread is parallel (Rp) and the external thread tapered (R) in accordance with ISO 7-1.

Coating :

Hot-dip galvanized (zinc coating applied by hot dipping) (If fittings are supplied in other ferrous materials, other zinc-based coatings may be used by agreement with the purchaser)

Standards :

All threaded malleable iron fittings comply with NF EN 10242 and are ISO 9001 quality-certified.

They also comply with the requirements of the French ministerial decree of May 29, 1997 on A.C.S. According to European and international standards, malleable cast-iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Galvanized malleable iron threaded fitting Reduced female elbow

Data sheet

Reference: 0090RG000000806
Finition corps: Galvanisée / Galva
Matière: Fonte malléable W400-05 ou W350-04
Forme: Coude 90° - Réduction
Rayon: Petit rayon
Type de raccordement: Á visser BSP (pas du gaz)
Raccordement: FF (femelle - femelle)
Diamètre: En fonction du modèle choisi
Pression de service: De 1"1/4 à 4" : 16B - De 1/8" à 1" : 25B
Température minimum: -20°C
Température maximum: 120°C
Fluide admissible: Air comprimé - Eau - Eau chauffage - Eau glacée et climatisation - Eau glycolée - Fluides courants compatibles
Normes et certifications: Filetage ISO 7-1 - ISO 9001 - NF EN 10242
Unité de vente: Pièce
Garantie fabricant: 1 an

Caractéristiques liées à la version du produit Galvanized malleable iron threaded fitting Reduced female elbow

Voici la liste des références et poids correspondants aux options séléctionnées.

0090RG000004032 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1"1/2 - 1"1/4

Surface Finish	Galvanisée / Galva
Diamètre Ø	1"1/2 - 1"1/4
Packed weight	0,42525kg

6.21 € tax excl.

Référence - Désignation	Surface Finish	Diamètre Ø	Packed weight	Prix
0090RG000004032 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1"1/2 - 1"1/4	Galvanisée / Galva	1"1/2 - 1"1/4	0,42525kg	6.21 € tax excl.
0090RG000002015 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 3/4" - 1/2"	Galvanisée / Galva	3/4" - 1/2"	0,13755kg	1.63 € tax excl.
0090RG000003220 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1"1/4 - 3/4"	Galvanisée / Galva	1"1/4 - 3/4"	0,3066kg	4.88 € tax excl.
0090RG000000806 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1/4" - 1/8"	Galvanisée / Galva	1/4" - 1/8"	0,04515kg	5.75 € tax excl.
0090RG000004025 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1"1/2 - 1"	Galvanisée / Galva	1"1/2 - 1"	0,34965kg	5.69 € tax excl.
0090RG000002010 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 3/4" - 3/8"	Galvanisée / Galva	3/4" - 3/8"	0,1134kg	2.05 € tax excl.
0090RG000005040 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 2" - 1"1/2	Galvanisée / Galva	2" - 1"1/2	0,66885kg	9.91 € tax excl.
0090RG000003215 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1"1/4 - 1/2"	Galvanisée / Galva	1"1/4 - 1/2"	0,2289kg	6.76 € tax excl.
0090RG000001510 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1/2" - 3/8"	Galvanisée / Galva	1/2" - 3/8"	0,10185kg	1.46 € tax excl.
0090RG000005032 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 2" - 1"1/4	Galvanisée / Galva	2" - 1"1/4	0,5691kg	19.73 € tax excl.
0090RG000002520 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1" - 3/4"	Galvanisée / Galva	1" - 3/4"	0,1827kg	2.41 € tax excl.
0090RG000004020 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1"1/2- 3/4"	Galvanisée / Galva	1"1/2- 3/4"	0,2877kg	6.01 € tax excl.
0090RG000001008 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 3/8" - 1/4"	Galvanisée / Galva	3/8" - 1/4"	0,0651kg	1.89 € tax excl.
0090RG000005025 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 2" - 1"	Galvanisée / Galva	2" - 1"	0,525kg	18.17 € tax excl.
0090RG000002515 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1" - 1/2"	Galvanisée / Galva	1" - 1/2"	0,168kg	2.31 € tax excl.
0090RG000003225 - Galvanized malleable iron threaded fitting Reduced female elbow - Galvanisée / Galva - 1"1/4 - 1"	Galvanisée / Galva	1"1/4 - 1"	0,315kg	3.9 € tax excl.
