Galvanized malleable iron fitting Reduced male nipple galvanisée / galva 3/8" - 1/4"

Name: Galvanized malleable iron fitting Reduced male nipple galvanisée / galva 3/8 - 1/4
Brand: THERSANE
SKU: 0245RG000001008
Price: 1.87 EUR
Availability: InStock

Black or galvanized cast iron fitting

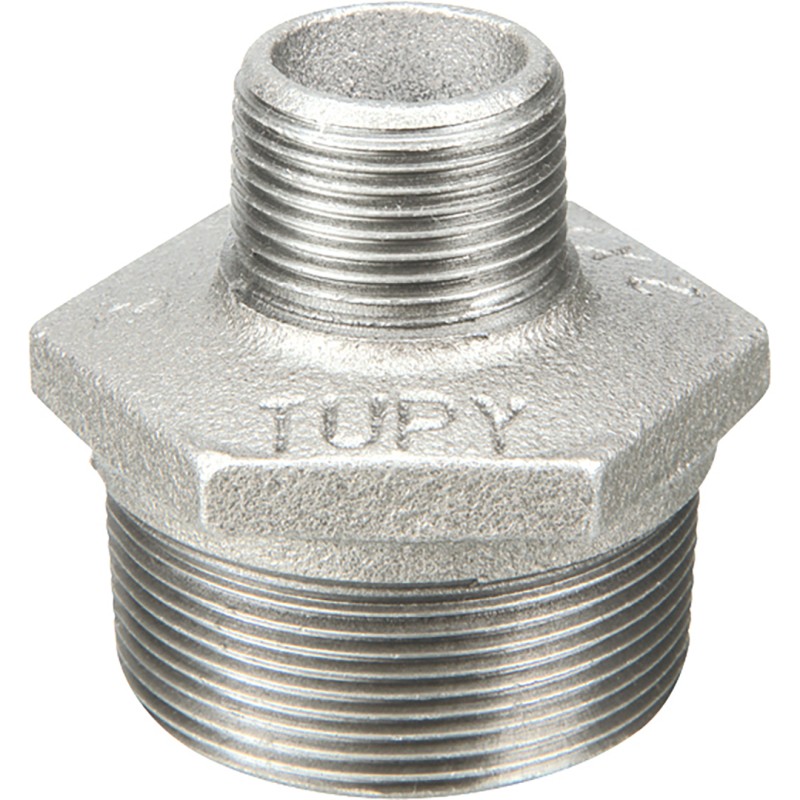

Raccord fonte malléable Mamelon réduit mâle

Photo non contractuelle

Male reduced malleable cast iron nipple for carbon steel tube

Application:

These fittings are to be used for conveying fluids or gases in steel pipes.

Coating available in black or hot-dip galvanized finish

Not authorized for natural gas and butane/propane applications

Plus de détails

Type de raccordement : Á visser BSP (pas du gaz)

galvanisée / galva 3/8" - 1/4"

Are you an individual?

Are you a professional?

€1.87 Tax included

1.56 € tax excl.

Unité de vente : Pièce

Reference : 0245RG000001008

Surface Finish: Galvanisée / Galva

Galvanisée / Galva

Diamètre Ø: 3/8" - 1/4"

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Complément d'information Galvanized malleable iron fitting Reduced male nipple

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications :

Material: Threaded fittings are made from malleable iron grades W400-05 or W350-04

Maximum temperature: Threaded fittings from 1/8" to 1" 'inclusive have a working pressure of 25 bar at an operating temperature of -20°C to +120°C. For threaded connections from 1"1/4 to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Threading: These fittings are internally threaded to the gas pitch, with a thread seal. The internal thread is parallel (Rp) and the external thread tapered (R) in accordance with ISO 7-1.

Coating :

Hot-dip galvanized (zinc coating applied by hot dipping) (If fittings are supplied in other ferrous materials, other zinc-based coatings may be used by agreement with the purchaser)

Standards :

All threaded malleable iron fittings comply with NF EN 10242 and are ISO 9001 quality-certified.

They also comply with the requirements of the French ministerial decree of May 29, 1997 on A.C.S. According to European and international standards, malleable cast-iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Galvanized malleable iron fitting Reduced male nipple

Data sheet

Reference: 0245RG000001008
Finition corps: Galvanisée / Galva
Matière: Fonte malléable W400-05 ou W350-04
Forme: Réduction
Type de raccordement: Á visser BSP (pas du gaz)
Raccordement: MM (mâle - mâle)
Diamètre: En fonction du modèle choisi
Pression de service: De 1"1/4 à 4" : 16B - De 1/8" à 1" : 25B
Température minimum: -20°C
Température maximum: 120°C
Fluide admissible: Air comprimé - Eau - Eau chauffage - Eau glacée et climatisation - Eau glycolée - Fluides courants compatibles
Normes et certifications: Filetage ISO 7-1 - ISO 9001 - NF EN 10242
Unité de vente: Pièce
Garantie fabricant: 1 an
Figure: 245R

Caractéristiques liées à la version du produit Galvanized malleable iron fitting Reduced male nipple

Voici la liste des références et poids correspondants aux options séléctionnées.

0245RG000003225 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1"1/4 - 1"

Surface Finish	Galvanisée / Galva
Diamètre Ø	1"1/4 - 1"
Packed weight	0,2415kg

2.83 € tax excl.

Référence - Désignation	Surface Finish	Diamètre Ø	Packed weight	Prix
0245RG000003225 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1"1/4 - 1"	Galvanisée / Galva	1"1/4 - 1"	0,2415kg	2.83 € tax excl.
0245RG000001510 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1/2" - 3/8"	Galvanisée / Galva	1/2" - 3/8"	0,0525kg	1.79 € tax excl.
0245RG000005025 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 2" - 1"	Galvanisée / Galva	2" - 1"	0,63kg	5.88 € tax excl.
0245RG000002515 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1" - 1/2"	Galvanisée / Galva	1" - 1/2"	0,126kg	3.12 € tax excl.
0245RG000006550 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 2" 1/2 - 2"	Galvanisée / Galva	2" 1/2 - 2"	0,7581kg	15.93 € tax excl.
0245RG000000806 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1/4" - 1/8"	Galvanisée / Galva	1/4" - 1/8"	0,0189kg	2.96 € tax excl.
0245RG000003220 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1"1/4 - 3/4"	Galvanisée / Galva	1"1/4 - 3/4"	0,252kg	4.06 € tax excl.
0245RG000001508 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1/2" - 1/4"	Galvanisée / Galva	1/2" - 1/4"	0,0525kg	1.95 € tax excl.
0245RG000004032 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1"1/2 - 1"1/4	Galvanisée / Galva	1"1/2 - 1"1/4	0,3255kg	3.54 € tax excl.
0245RG000002015 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 3/4" - 1/2"	Galvanisée / Galva	3/4" - 1/2"	0,105kg	1.59 € tax excl.
0245RG000006540 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 2"1/2 - 1"1/2	Galvanisée / Galva	2"1/2 - 1"1/2	0,61845kg	17.88 € tax excl.
0245RG000008065 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 3" - 2"1/2	Galvanisée / Galva	3" - 2"1/2	0,945kg	25.68 € tax excl.
0245RG000001008 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 3/8" - 1/4"	Galvanisée / Galva	3/8" - 1/4"	0,042kg	1.56 € tax excl.
0245RG000004025 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1"1/2 - 1"	Galvanisée / Galva	1"1/2 - 1"	0,3045kg	6.53 € tax excl.
0245RG000002010 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 3/4" - 3/8"	Galvanisée / Galva	3/4" - 3/8"	0,0945kg	3.15 € tax excl.
0245RG000005040 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 2" - 1"1/2	Galvanisée / Galva	2" - 1"1/2	0,42kg	6.66 € tax excl.
0245RG000003215 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1"1/4 - 1/2"	Galvanisée / Galva	1"1/4 - 1/2"	0,1932kg	8.84 € tax excl.
0245RG000001006 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 3/8" - 1/8"	Galvanisée / Galva	3/8" - 1/8"	0,0336kg	3.51 € tax excl.
0245RG000004020 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1"1/2- 3/4"	Galvanisée / Galva	1"1/2- 3/4"	0,25725kg	4.13 € tax excl.
0245RG000002008 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 3/4" - 1/4"	Galvanisée / Galva	3/4" - 1/4"	0,063kg	6.73 € tax excl.
0245RG000005032 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 2" - 1"1/4	Galvanisée / Galva	2" - 1"1/4	0,546kg	7.31 € tax excl.
0245RG000002520 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 1" - 3/4"	Galvanisée / Galva	1" - 3/4"	0,2415kg	1.79 € tax excl.
0245RG000008050 - Galvanized malleable iron fitting Reduced male nipple - Galvanisée / Galva - 3" - 2"	Galvanisée / Galva	3" - 2"	1,05kg	19.6 € tax excl.
