Galvanized malleable cast iron threaded fitting Equal female and male couplings 3/8" (12/17) galvanisée / galva

Black or galvanized cast iron fitting
Raccord fonte malléable galvanisé fileté Manchon égal femelle et mâle
search
  • Raccord fonte malléable galvanisé fileté Manchon égal femelle et mâle

Photo non contractuelle

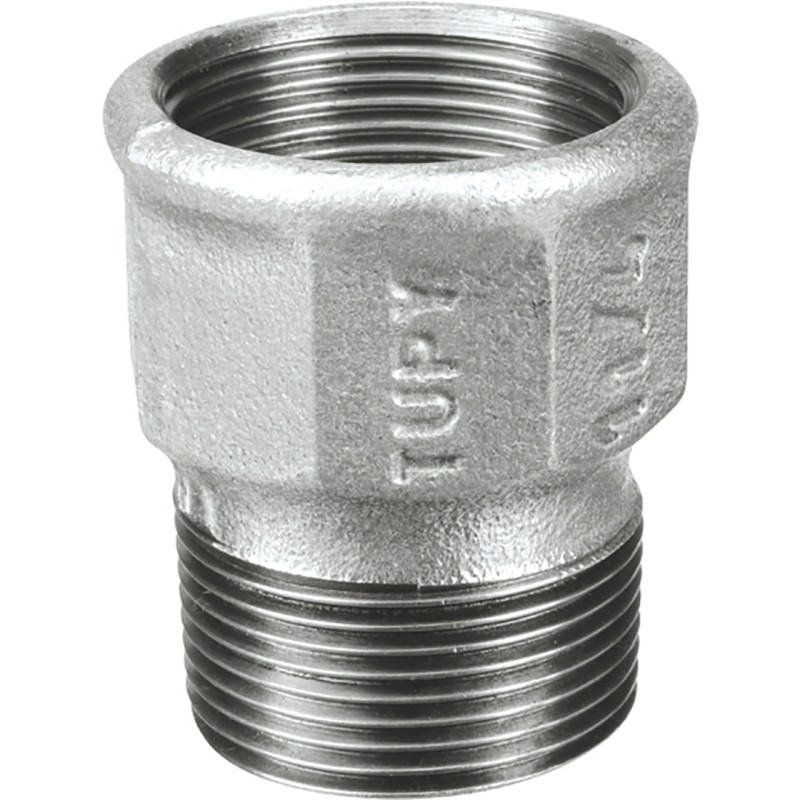

Galvanized malleable iron female and male equal bushing for carbon steel tube

Application:

These fittings are to be used for conveying fluids or gases in steel pipes.

Coating available in black or hot-dip galvanized finish

Not authorized for natural gas and butane/propane applications

Plus de détails
Normes et certifications : ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
3/8" (12/17) galvanisée / galva
Are you an individual?
Are you a professional?

Log in to find out your discount.

€3.05 Tax included

2.54 € tax excl.

Unité de vente : Pièce
0529AG000000010
Surface Finish: Galvanisée / Galva
Diameter (in inches): 3/8" (12/17)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Galvanized malleable cast iron threaded fitting Equal female and male couplings

Technical specifications :

Material: Threaded fittings are made from malleable iron grades W400-05 or W350-04

Maximum temperature: Threaded fittings from 1/8" to 1" 'inclusive have a working pressure of 25 bar at an operating temperature of -20°C to +120°C. For threaded connections from 1"1/4 to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Threading: These fittings are internally threaded to the gas pitch, with a thread seal. The internal thread is parallel (Rp) and the external thread tapered (R) in accordance with ISO 7-1.

Coating :

Hot-dip galvanized (zinc coating applied by hot dipping) (If fittings are supplied in other ferrous materials, other zinc-based coatings may be used by agreement with the purchaser)

Standards :

All threaded malleable iron fittings comply with NF EN 10242 and are ISO 9001 quality-certified.

They also comply with the requirements of the French ministerial decree of May 29, 1997 on A.C.S. According to European and international standards, malleable cast-iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Galvanized malleable cast iron threaded fitting Equal female and male couplings

Data sheet

Reference
0529AG000000010
Finition corps
Galvanisée / Galva
Matière
Fonte malléable W400-05 ou W350-04
Forme
Rallonge
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications
Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
529A

Caractéristiques liées à la version du produit Galvanized malleable cast iron threaded fitting Equal female and male couplings

Voici la liste des références et poids correspondants aux options séléctionnées.
0529AG000000025 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1" (26/34)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1" (26/34)
Packed weight 0,168kg
3.45 € tax excl.
Consulter
0529AG000000008 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1/4" (8/13)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1/4" (8/13)
Packed weight 0,02625kg
5.33 € tax excl.
Consulter
0529AG000000050 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 2" (50/60)
Surface Finish Galvanisée / Galva
Diameter (in inches) 2" (50/60)
Packed weight 0,4872kg
18.3 € tax excl.
Consulter
0529AG000000020 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 3/4" (20/27)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3/4" (20/27)
Packed weight 0,13125kg
2.24 € tax excl.
Consulter
0529AG000000040 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1"1/2 (40/49)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1"1/2 (40/49)
Packed weight 0,2961kg
11.02 € tax excl.
Consulter
0529AG000000015 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1/2" (15/21)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1/2" (15/21)
Packed weight 0,0966kg
1.5 € tax excl.
Consulter
0529AG000000032 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1"1/4 (33/42)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,26355kg
4.39 € tax excl.
Consulter
0529AG000000010 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 3/8" (12/17)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3/8" (12/17)
Packed weight 0,0483kg
2.54 € tax excl.
Consulter
Référence - Désignation Surface Finish Diameter (in inches) Packed weight Prix
0529AG000000025 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1" (26/34) Galvanisée / Galva 1" (26/34) 0,168kg 3.45 € tax excl.
0529AG000000008 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1/4" (8/13) Galvanisée / Galva 1/4" (8/13) 0,02625kg 5.33 € tax excl.
0529AG000000050 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 2" (50/60) Galvanisée / Galva 2" (50/60) 0,4872kg 18.3 € tax excl.
0529AG000000020 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 3/4" (20/27) Galvanisée / Galva 3/4" (20/27) 0,13125kg 2.24 € tax excl.
0529AG000000040 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1"1/2 (40/49) Galvanisée / Galva 1"1/2 (40/49) 0,2961kg 11.02 € tax excl.
0529AG000000015 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1/2" (15/21) Galvanisée / Galva 1/2" (15/21) 0,0966kg 1.5 € tax excl.
0529AG000000032 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 1"1/4 (33/42) Galvanisée / Galva 1"1/4 (33/42) 0,26355kg 4.39 € tax excl.
0529AG000000010 - Galvanized malleable cast iron threaded fitting Equal female and male couplings - Galvanisée / Galva - 3/8" (12/17) Galvanisée / Galva 3/8" (12/17) 0,0483kg 2.54 € tax excl.
