TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE dn 25

Name: TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE dn 25
Brand: TRELLEBORG
SKU: 15610000PN16025
Price: 391.96 EUR
Availability: InStock

Manchons compensateurs

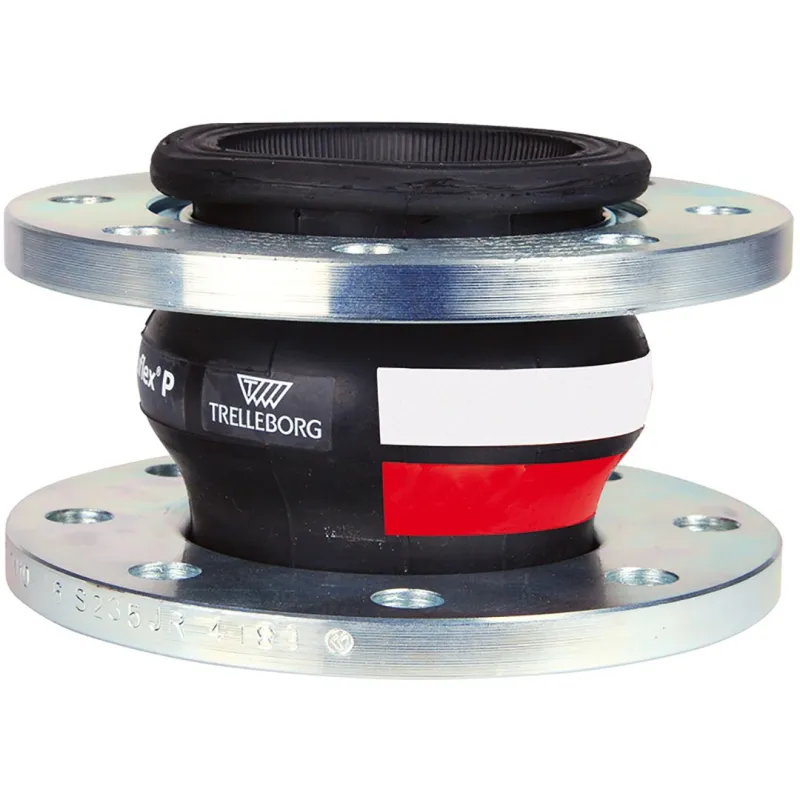

Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm EPDM ACS à brides ROUGE-BLANC

Photos non contractuelles

TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE, EN 1092-1

Application:

Drinking water
Not recommended for hydrocarbons, oily products, and abrasive products
Minimum and maximum permissible temperature Ts: -25°C to +90°C
Maximum permissible pressure Ps: 16 bar at 70°C and 10 bar at 90°C (6 bar with internal PTFE lining)

Available as: EPDM tube expansion joint with steel or 316 stainless steel flanges, PN10/16 from DN 25 to DN 150, PN10 and above

Follow the flow direction indicated on the body by an arrow

Plus de détails

Normes et certifications : Certification ACS

Type de raccordement : À brides EN1092-1 PN10

Type de raccordement : À brides EN1092-1 PN16

dn 25

Are you an individual?

Are you a professional?

€391.96 Tax included

326.63 € tax excl.

Unité de vente : Pièce

Reference : 15610000PN16025

Diameter DN: DN 25

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Complément d'information TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Flanged EPDM ACS expansion joint designed to absorb thermal expansion, vibrations, and noise in piping systems for drinking water networks.
The body is made of EPDM ACS and the flanges are made of electro-galvanized steel.
The expansion joint accommodates both linear and angular compression.
Length: 130 mm for all diameters.

Features:

Absorption of expansion, vibrations, and noise
Linear and angular compression
EPDM ACS tube
Length 130 mm
Electrogalvanized steel flanges PN10/16 up to DN150, PN10 above
PN6, PN16, and Class 150 PN20 flanges available upon request
316 stainless steel flanges available upon request
316 Ti stainless steel vacuum ring available upon request (Ref. 9815050 to 9815300)
Internal PTFE coating available upon request (permissible movement reduced by 50% and maximum pressure of 6 bar)
Burst pressure >50 bar at 20°C
Test pressure 25 bar at 20°C

Construction:

Dimensions: DN25 to DN300
Connection: PN10/16 flanges
Material: Electro-galvanized steel flanges

Standards:

Manufacturer certified to ISO 9001:2015 and ISO 14001:2015
DIRECTIVE 2014/68/EU: CE No. 0056 Risk
Category III Module H
Flanges in accordance with EN 1092-1 PN10/16
Sanitary Conformity Certificate A.C.S. No. 20 MAT LY 225

Caractéristiques techniques TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE

Data sheet

Reference: 15610000PN16025
Matière: Brides acier électrozingué
Entraxe: 130 mm
Type de raccordement: À brides EN1092-1 PN10 - À brides EN1092-1 PN16
Diamètre: En fonction du modèle choisi
Pression de service: 16B
Température minimum: -25°C
Température maximum: 90°C
Fluide admissible: Eau chaude, eau de refroidissement, solutions salines, solutions chlorées, esters et cétones
Normes et certifications: CE - Certification ACS - ISO 9001 : 2015
Normalisation: Directive 2014/68/UE
Unité de vente: Pièce
Garantie fabricant: 1 an

Download documentation

FT 1561

Fiche technique 1561

Download (575.11KB)

Accessoires et équipements (vendus séparément)

Quick view

130 mm center-to-center spacing limiter kit for models 1551 and 1506, steel, 2 flanged tie rods, EN 1092-1 PN10

From €121.72

Quick view

Bolting kit (screw + nut) zinc-plated steel 8-8 for flanged valve EN1092-1

From €6.08

Caractéristiques liées à la version du produit TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE

Voici la liste des références et poids correspondants aux options séléctionnées.

15610000PN16025 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 25

Diameter DN	DN 25
Packed weight	13,8kg

326.63 € tax excl.

Consulter

15610000PN16032 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 32

Diameter DN	DN 32
Packed weight	13,8kg

345.09 € tax excl.

Consulter

15610000PN16040 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 40

Diameter DN	DN 40
Packed weight	14kg

357.92 € tax excl.

Consulter

15610000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 50

Diameter DN	DN 50
Packed weight	14,1kg

386.82 € tax excl.

Consulter

15610000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 65

Diameter DN	DN 65
Packed weight	14,4kg

420.49 € tax excl.

Consulter

15610000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 80

Diameter DN	DN 80
Packed weight	14,8kg

446.97 € tax excl.

Consulter

15610000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 100

Diameter DN	DN 100
Packed weight	15,2kg

485.49 € tax excl.

Consulter

15610000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 125

Diameter DN	DN 125
Packed weight	16kg

546.49 € tax excl.

Consulter

15610000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 150

Diameter DN	DN 150
Packed weight	17,8kg

628.32 € tax excl.

Consulter

15610000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 200

Diameter DN	DN 200
Packed weight	20,2kg

714.19 € tax excl.

Consulter

15610000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 250

Diameter DN	DN 250
Packed weight	22,6kg

1107.34 € tax excl.

Consulter

15610000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 300

Diameter DN	DN 300
Packed weight	26,5kg

1380.96 € tax excl.

Consulter

Référence - Désignation	Diameter DN	Packed weight	Prix
15610000PN16025 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 25	DN 25	13,8kg	326.63 € tax excl.
15610000PN16032 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 32	DN 32	13,8kg	345.09 € tax excl.
15610000PN16040 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 40	DN 40	14kg	357.92 € tax excl.
15610000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 50	DN 50	14,1kg	386.82 € tax excl.
15610000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 65	DN 65	14,4kg	420.49 € tax excl.
15610000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 80	DN 80	14,8kg	446.97 € tax excl.
15610000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 100	DN 100	15,2kg	485.49 € tax excl.
15610000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 125	DN 125	16kg	546.49 € tax excl.
15610000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 150	DN 150	17,8kg	628.32 € tax excl.
15610000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 200	DN 200	20,2kg	714.19 € tax excl.
15610000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 250	DN 250	22,6kg	1107.34 € tax excl.
15610000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, EPDM ACS, Flanged, RED-WHITE - DN 300	DN 300	26,5kg	1380.96 € tax excl.
