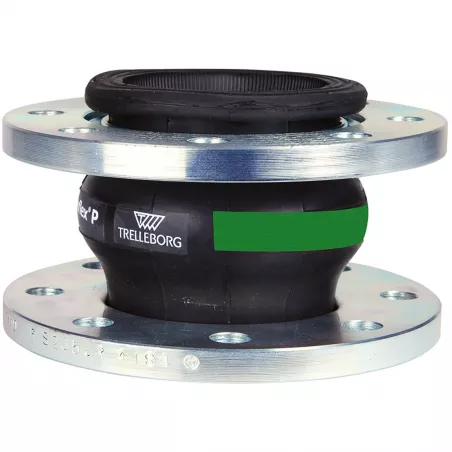

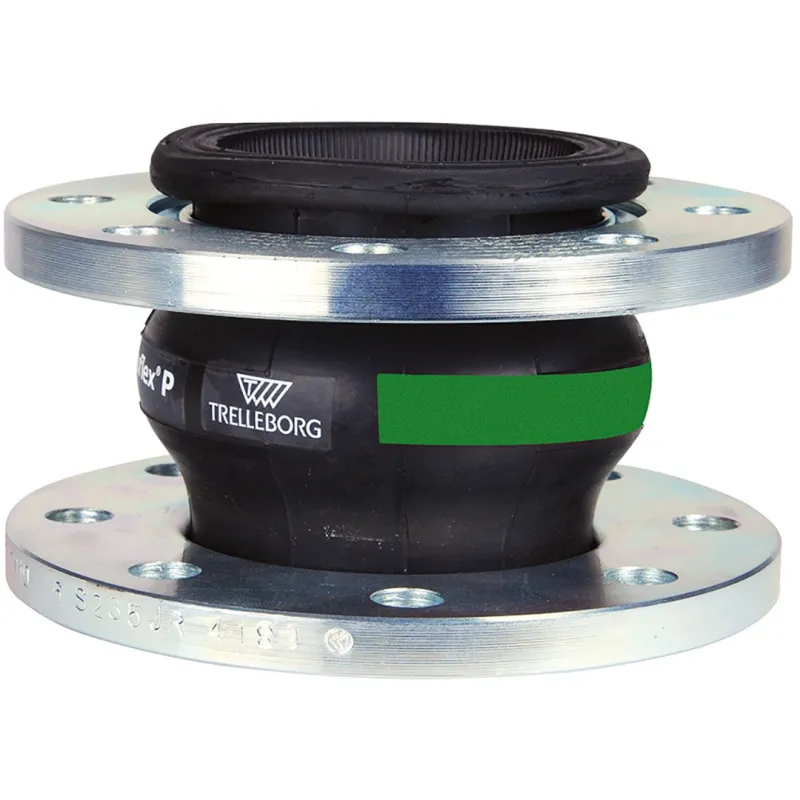

TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN dn 25

Name: TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN dn 25
Brand: TRELLEBORG
SKU: 15640000PN16025
Price: 360.17 EUR
Availability: InStock

Manchons compensateurs

Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm CSM à brides VERT

Photos non contractuelles

TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with EN 1092-1 Green Flanges

Applications:

Strong and/or concentrated acids, compressed air for propelling oil-based aerosols, chemicals, mineral oils, greases, and solvents
Not recommended for hydrocarbons
Minimum and maximum permissible temperature Ts: -25°C to +90°C
Maximum permissible pressure Ps: 16 bar at 70°C and 10 bar at 90°C (6 bar with internal PTFE coating)

Available as: CSM flanged steel tube expansion joint PN10/16 from DN 25 to DN 150, PN10

Follow the flow direction indicated on the body by an arrow

Plus de détails

Normes et certifications : Certification ACS

Type de raccordement : À brides EN1092-1 PN10

Type de raccordement : À brides EN1092-1 PN16

dn 25

Are you an individual?

Are you a professional?

€360.17 Tax included

300.14 € tax excl.

Unité de vente : Pièce

Reference : 15640000PN16025

Diameter DN: DN 25

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Complément d'information TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

CSM flanged expansion joint designed to absorb thermal expansion, vibrations, and noise in piping systems carrying strong and/or concentrated acids, compressed air used to propel oil-based aerosols, chemicals, mineral oils, greases, and solvents.
Not recommended for hydrocarbons.
The body is made of CSM and the flanges are made of electro-galvanized steel or 316 stainless steel.
The expansion joint accommodates both linear and angular compression.
Length of 130 mm for all diameters.

Features:

Absorption of expansion, vibrations, and noise
Linear and angular compression
CSM tube
Length 130 mm
Electrogalvanized steel flanges PN10/16 up to DN150, PN10 and above
PN6, PN16, and Class 150 PN20 flanges available upon request
316 stainless steel flanges available upon request
316 Ti stainless steel vacuum ring available upon request (Ref. 9815050 to 9815300)
Internal PTFE coating available upon request (permissible movement then reduced by 50% and maximum pressure of 6 bar)
Burst pressure >50 bar at 20°C
Test pressure 25 bar at 20°C

Construction:

Dimensions: DN25 to DN300
Connection: PN10/16 flanges
Material: Electro-galvanized steel flanges

Standards:

Manufacturer certified to ISO 9001:2015 and ISO 14001:2015
DIRECTIVE 2014/68/EU: Compatible for Group 1 Liquids and
Gases oDN32-50: Risk Category I, CE marking 0056
o DN65-200: Risk Category II, CE marking 0056
o DN250-300: Risk Category III, CE marking 0056
Flanges in accordance with EN 1092-1 PN10/16
Expansion joints with type approval (Product type approved), Marine ABS

Caractéristiques techniques TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN

Data sheet

Reference: 15640000PN16025
Matière: Brides acier électrozingué
Entraxe: 130 mm
Type de raccordement: À brides EN1092-1 PN10 - À brides EN1092-1 PN16
Diamètre: En fonction du modèle choisi
Pression de service: 16B
Température minimum: -25°C
Température maximum: 90°C
Fluide admissible: Acides forts et/ou concentrés, air comprimé de propulsion des aérosols à huiles, produits chimiques, huiles minérales, graisses et solvants
Normes et certifications: CE - Certification ACS - ISO 9001 : 2015
Normalisation: Directive 2014/68/UE
Unité de vente: Pièce
Garantie fabricant: 1 an

Download documentation

FT 1564

Fiche technique manchon compensateur industrie

Download (589.75KB)

Accessoires et équipements (vendus séparément)

Quick view

130 mm center-to-center spacing limiter kit for models 1551 and 1506, steel, 2 flanged tie rods, EN 1092-1 PN10

From €121.72

Quick view

Bolting kit (screw + nut) zinc-plated steel 8-8 for flanged valve EN1092-1

From €6.08

Caractéristiques liées à la version du produit TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN

Voici la liste des références et poids correspondants aux options séléctionnées.

15640000PN16025 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 25

Diameter DN	DN 25
Packed weight	2,8kg

300.14 € tax excl.

Consulter

15640000PN16032 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 32

Diameter DN	DN 32
Packed weight	2,8kg

300.14 € tax excl.

Consulter

15640000PN16040 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 40

Diameter DN	DN 40
Packed weight	3,3kg

312.98 € tax excl.

Consulter

15640000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 50

Diameter DN	DN 50
Packed weight	3,7kg

337.87 € tax excl.

Consulter

15640000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 65

Diameter DN	DN 65
Packed weight	4,8kg

362.73 € tax excl.

Consulter

15640000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 80

Diameter DN	DN 80
Packed weight	5,3kg

386.82 € tax excl.

Consulter

15640000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 100

Diameter DN	DN 100
Packed weight	6,2kg

420.49 € tax excl.

Consulter

15640000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 125

Diameter DN	DN 125
Packed weight	8,2kg

485.49 € tax excl.

Consulter

15640000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 150

Diameter DN	DN 150
Packed weight	11,2kg

560.92 € tax excl.

Consulter

15640000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 200

Diameter DN	DN 200
Packed weight	16,8kg

680.49 € tax excl.

Consulter

15640000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 250

Diameter DN	DN 250
Packed weight	21,6kg

970.94 € tax excl.

Consulter

15640000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 300

Diameter DN	DN 300
Packed weight	30,1kg

1245.37 € tax excl.

Consulter

Référence - Désignation	Diameter DN	Packed weight	Prix
15640000PN16025 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 25	DN 25	2,8kg	300.14 € tax excl.
15640000PN16032 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 32	DN 32	2,8kg	300.14 € tax excl.
15640000PN16040 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 40	DN 40	3,3kg	312.98 € tax excl.
15640000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 50	DN 50	3,7kg	337.87 € tax excl.
15640000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 65	DN 65	4,8kg	362.73 € tax excl.
15640000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 80	DN 80	5,3kg	386.82 € tax excl.
15640000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 100	DN 100	6,2kg	420.49 € tax excl.
15640000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 125	DN 125	8,2kg	485.49 € tax excl.
15640000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 150	DN 150	11,2kg	560.92 € tax excl.
15640000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 200	DN 200	16,8kg	680.49 € tax excl.
15640000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 250	DN 250	21,6kg	970.94 € tax excl.
15640000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, CSM, with Flanges, GREEN - DN 300	DN 300	30,1kg	1245.37 € tax excl.
