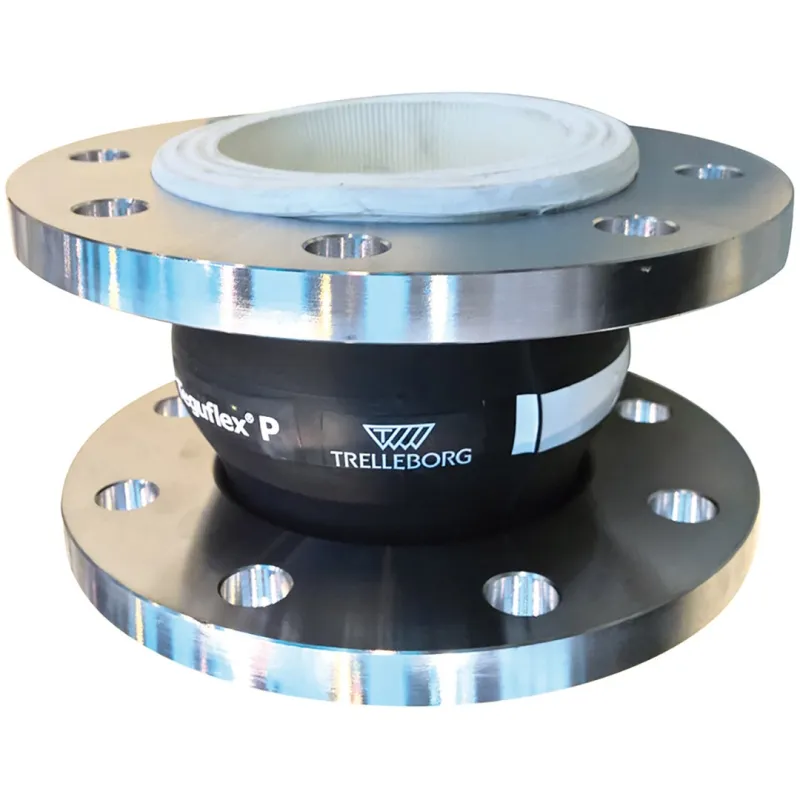

TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White dn 50

Manchons compensateurs
Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm NBR ALIMENTAIRE à brides BLANC
search
  • Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm NBR ALIMENTAIRE à brides BLANC
  • NOMENCLATURE Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm NBR ALIMENTAIRE à brides BLANC
  • DIMENSIONS Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm NBR ALIMENTAIRE à brides BLANC
  • COURBE PRESSION TEMPERATURE Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm NBR ALIMENTAIRE à brides BLANC
  • MOUVEMENTS Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm NBR ALIMENTAIRE à brides BLANC

Photos non contractuelles

TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, Food-Grade NBR with Flanges, White, EN 1092-1

Application:

  • Food products, fats, and oils
  • Not recommended for aromatic solvents (50%), ozone, and UV
  • Minimum and maximum permissible temperature Ts: -25°C to +90°C
  • Maximum permissible pressure Ps: 16 bar at 70°C and 10 bar at 90°C (6 bar with internal PTFE coating)

Available as: Food-grade NBR (FDA) tube expansion joint with steel or 316 stainless steel flanges, PN10/16, from DN 25 to DN 150, PN10

Observe the flow direction indicated on the body by an arrow

Galvanized steel flange version available upon request

Plus de détails
Normes et certifications : CEType de raccordement : À brides EN1092-1 PN10Type de raccordement : À brides EN1092-1 PN161
dn 50
Are you an individual?
Are you a professional?

Log in to find out your discount.

€602.82 Tax included

502.35 € tax excl.

Unité de vente : Pièce
15650000PN16050
Diameter DN: DN 50
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

White food-grade NBR expansion joint with flanges designed to absorb thermal expansion, vibrations, and noise in piping systems for food products, fats, and oils.
Not recommended for aromatic solvents (50%), ozone, or UV exposure.
The body is made of white food-grade nitrile, and the flanges are made of electro-galvanized steel or 316 stainless steel.
The expansion joint accommodates both linear and angular compression.
Length: 130 mm for all diameters.
Expansion joint compliant with EC Regulation 1935/2004.

Features:

  • Absorption of expansion, vibrations, and noise
  • Linear and angular compression
  • Food-grade NBR tube (FDA)
  • Length 130 mm
  • 316 stainless steel or electro-galvanized steel flanges, PN10/16 up to DN150, PN10 and above
  • PN6, PN16, and Class 150 PN20 flanges available upon request
  • 316 Ti stainless steel vacuum ring available upon request (Ref. 9815050 to 9815300)
  • Internal PTFE coating available upon request (permissible movement reduced by 50% and maximum pressure of 6 bar)
  • Burst pressure >50 bar at 20°C
  • Test pressure 25 bar at 20°C

Construction:

  • Dimensions: DN25 to DN300
  • Connection: PN10/16 flanges
  • Material: 316 stainless steel flanges or electro-galvanized steel

Standards:

  • Manufacturer certified to ISO 9001:2015 and ISO 14001:2015
  • DIRECTIVE 2014/68/EU: Compatible for Group 1 Liquids and
    Gases o DN32-50: Risk Category I, CE marking 0056
    o DN65-200: Risk Category II, CE marking 0056
    o DN250-300: Risk Category III, CE marking
    0056• Flanges in accordance with EN 1092-1 PN10/16
  • Pipe compliant with FDA CFR-21 food standards
  • Expansion joint compliant with EC Regulation 1935/2004

Caractéristiques techniques TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White

Data sheet

Reference
15650000PN16050
Matière
Brides inox 316 ou acier électrozingué
Entraxe
130 mm
Type de raccordement
À brides EN1092-1 PN10 - À brides EN1092-1 PN16
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-25°C
Température maximum
90°C
Fluide admissible
Produits alimentaires, graisses et huiles
Normes et certifications
CE - ISO 9001 : 2015
Normalisation
Directive 2014/68/UE
Homologation
conforme au règlement CE 1935/2004.
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 1565

Fiche technique manchon compensateur industrie L130mm NBR alimentaire blanc FDA

Download (559.62KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White

Voici la liste des références et poids correspondants aux options séléctionnées.
15650000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 50
Diameter DN DN 50
Packed weight 3,7kg
502.35 € tax excl.
Consulter
15650000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 65
Diameter DN DN 65
Packed weight 4,8kg
633.13 € tax excl.
Consulter
15650000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 80
Diameter DN DN 80
Packed weight 5,3kg
689.29 € tax excl.
Consulter
15650000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 100
Diameter DN DN 100
Packed weight 6,2kg
775.16 € tax excl.
Consulter
15650000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 125
Diameter DN DN 125
Packed weight 8,2kg
964.54 € tax excl.
Consulter
15650000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 150
Diameter DN DN 150
Packed weight 11,2kg
1225.28 € tax excl.
Consulter
15650000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 200
Diameter DN DN 200
Packed weight 16,8kg
1685.06 € tax excl.
Consulter
15650000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 250
Diameter DN DN 250
Packed weight 21,6kg
2423.27 € tax excl.
Consulter
15650000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 300
Diameter DN DN 300
Packed weight 30,1kg
3174.31 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
15650000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 50 DN 50 3,7kg 502.35 € tax excl.
15650000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 65 DN 65 4,8kg 633.13 € tax excl.
15650000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 80 DN 80 5,3kg 689.29 € tax excl.
15650000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 100 DN 100 6,2kg 775.16 € tax excl.
15650000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 125 DN 125 8,2kg 964.54 € tax excl.
15650000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 150 DN 150 11,2kg 1225.28 € tax excl.
15650000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 200 DN 200 16,8kg 1685.06 € tax excl.
15650000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 250 DN 250 21,6kg 2423.27 € tax excl.
15650000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, Food-Grade NBR, Flanged, White - DN 300 DN 300 30,1kg 3174.31 € tax excl.
