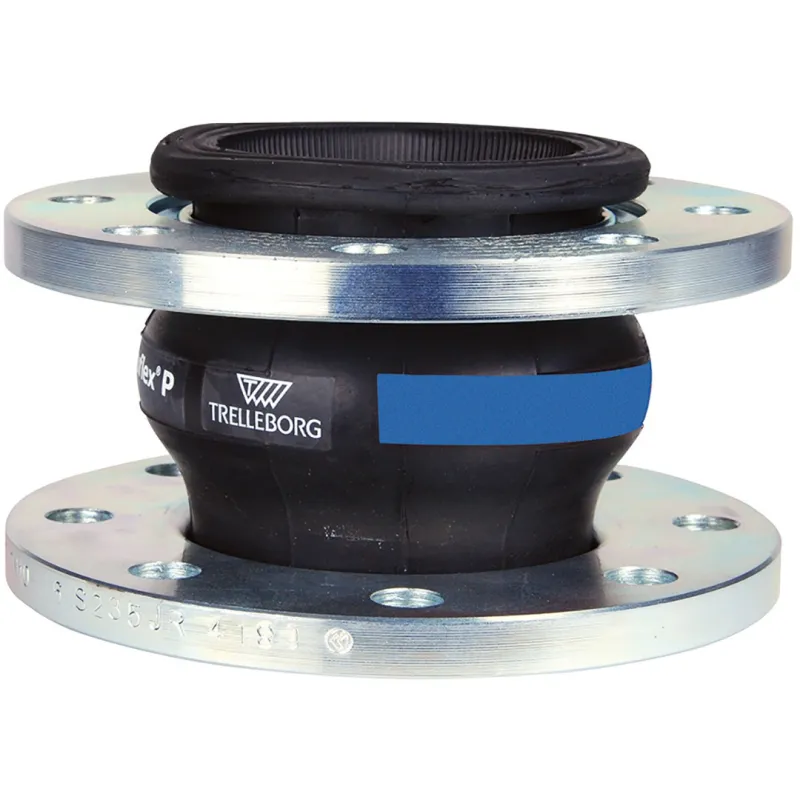

TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, Blue, EN 1092-1

Application:

  • Abrasive products, suspended solids, slurries, calcium
  • Not recommended for hydrocarbons and oily products
  • Minimum and maximum permissible temperature Ts: -35°C to +90°C
  • Maximum permissible pressure Ps: 16 bar at 70°C and 10 bar at 90°C (6 bar with internal PTFE lining)

Available as: Rubber tube (SBR) expansion joint with steel flanges, PN10/16, from DN 25 to DN 150, PN10

Follow the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : CEType de raccordement : À brides EN1092-1 PN10Type de raccordement : À brides EN1092-1 PN161
dn 50
Are you an individual?
Are you a professional?

Log in to find out your discount.

€392.93 Tax included

327.44 € tax excl.

Unité de vente : Pièce
15660000PN16050
Diameter DN: DN 50
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Blue SBR expansion joint with flanges designed to absorb thermal expansion, vibrations, and noise in piping systems carrying abrasive products, suspended solids, slurries, and
calcium. Not recommended for hydrocarbons or oily products.
The body is made of blue SBR and the flanges are made of electro-galvanized steel.
The expansion joint accommodates linear and angular compression.
Length: 130 mm for all diameters.

Features:

  • Absorption of expansion, vibrations, and noise
  • Linear and angular compression
  • Rubber tube (SBR)
  • Length 130 mm
  • Electrogalvanized steel flanges PN10/16 up to DN150, PN10 and above
  • PN6, PN16, and Class 150 PN20 flanges available upon request
  • 316 stainless steel flanges available upon request
  • 316 Ti stainless steel vacuum ring available upon request (Ref. 9815050 to 9815300)
  • Internal PTFE coating available upon request (permissible movement then reduced by 50% and maximum pressure of 6 bar)
  • Burst pressure >50 bar at 20°C
  • Test pressure 25 bar at 20°C

Construction:

  • Dimensions: DN50 to DN300
  • Connection: PN10/16 flanges
  • Material: Electrogalvanized steel flanges

Standards:

  • Manufacturer certified to ISO 9001:2015 and ISO 14001:2015
  • DIRECTIVE 2014/68/EU: CE No. 0056 Risk
    Category III Module H
  • Flanges in accordance with EN 1092-1 PN10/16
  • Sanitary Conformity Certificate A.C.S. No. 20 MAT LY 225

Caractéristiques techniques TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE

Data sheet

Reference
15660000PN16050
Matière
Brides acier électrozingué
Entraxe
130 mm
Type de raccordement
À brides EN1092-1 PN10 - À brides EN1092-1 PN16
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-25°C
Température maximum
90°C
Fluide admissible
Eau chaude, eau de refroidissement, solutions salines, solutions chlorées, esters et cétones
Normes et certifications
CE - Certification ACS - ISO 9001 : 2015
Normalisation
Directive 2014/68/UE
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 1566

Fiche technique manchon compensateur industrie PN10/16 L130mm SBR bleu

Download (571.09KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE

Voici la liste des références et poids correspondants aux options séléctionnées.
15660000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 50
Diameter DN DN 50
Packed weight 3,7kg
327.44 € tax excl.
Consulter
15660000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 65
Diameter DN DN 65
Packed weight 4,8kg
357.92 € tax excl.
Consulter
15660000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 80
Diameter DN DN 80
Packed weight 5,3kg
386.82 € tax excl.
Consulter
15660000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 100
Diameter DN DN 100
Packed weight 6,2kg
431.73 € tax excl.
Consulter
15660000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 125
Diameter DN DN 125
Packed weight 8,2kg
501.54 € tax excl.
Consulter
15660000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 150
Diameter DN DN 150
Packed weight 11,2kg
589 € tax excl.
Consulter
15660000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 200
Diameter DN DN 200
Packed weight 16,8kg
741.46 € tax excl.
Consulter
15660000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 250
Diameter DN DN 250
Packed weight 21,6kg
982.96 € tax excl.
Consulter
15660000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 300
Diameter DN DN 300
Packed weight 30,1kg
1263.02 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
15660000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 50 DN 50 3,7kg 327.44 € tax excl.
15660000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 65 DN 65 4,8kg 357.92 € tax excl.
15660000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 80 DN 80 5,3kg 386.82 € tax excl.
15660000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 100 DN 100 6,2kg 431.73 € tax excl.
15660000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 125 DN 125 8,2kg 501.54 € tax excl.
15660000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 150 DN 150 11,2kg 589 € tax excl.
15660000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 200 DN 200 16,8kg 741.46 € tax excl.
15660000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 250 DN 250 21,6kg 982.96 € tax excl.
15660000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center-to-Center, SBR, Flanged, BLUE - DN 300 DN 300 30,1kg 1263.02 € tax excl.
