TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE dn 50

Manchons compensateurs
Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm FKM à brides VIOLET
search
  • Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm FKM à brides VIOLET
  • Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm FKM à brides VIOLET
  • NOMENCLATURE Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm FKM à brides VIOLET
  • DIMENSIONS Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm FKM à brides VIOLET
  • COURBE PRESSION TEMPERATURE Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm FKM à brides VIOLET
  • MOUVEMENTS Compensateur de dilatation industriel TEGUFLEX® entraxe 130mm FKM à brides VIOLET

Photos non contractuelles

TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, VIOLET, EN 1092-1

Application:

  • Highly aggressive chemicals at high temperatures, hydrocarbons, aromatic solvents
  • Minimum and maximum permissible temperature Ts: -20°C to +150°C
  • Maximum permissible pressure Ps: 16 bar at 70°C up to DN150 (6 bar with internal PTFE lining)
    8 bar at 90°C from DN200 to DN300
    8 bar at 150°C up to DN150
    6 bar at 150°C from DN200 to DN300

Available as: FKM-lined expansion sleeve with steel flanges, PN10/16 from DN 25 to DN 150, PN10

Follow the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : CEType de raccordement : À brides EN1092-1 PN10Type de raccordement : À brides EN1092-1 PN161
dn 50
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,408.72 Tax included

1173.93 € tax excl.

Unité de vente : Pièce
15670000PN16050
Diameter DN: DN 50
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

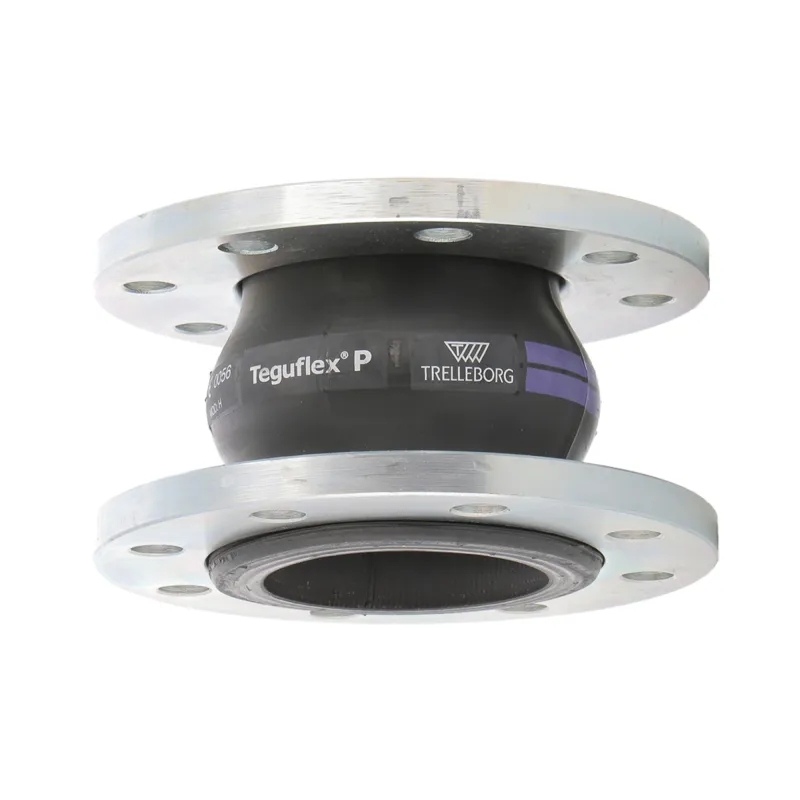

Purple FKM expansion joint with flanges designed to absorb thermal expansion, vibrations, and noise in piping systems carrying highly corrosive chemicals at high temperatures, hydrocarbons, and aromatic solvents.
The body is made of silicone-free FKM, and the flanges are made of electro-galvanized steel.
The expansion joint accommodates both linear and angular compression.
Length: 130 mm for all diameters.

Features:

  • Absorption of expansion, vibrations, and noise
  • Linear and angular compression
  • Silicone-free FKM tube
  • Length: 130 mm
  • Electrogalvanized steel flanges PN10/16 up to DN150, PN10 thereafter
  • PN6, PN16, and Class 150 PN20 flanges available upon request
  • 316 stainless steel flanges available upon request
  • 316 Ti stainless steel vacuum ring available upon request (Ref. 9815050 to 9815300)
  • Internal PTFE coating available upon request (permissible movement then reduced by 50% and maximum pressure of 6 bar)
  • Burst pressure >50 bar at 20°C
  • Test pressure 25 bar at 20°C

Construction:

  • Dimensions: DN50 to DN300
  • Connection: PN10/16 flanges
  • Material: Electrogalvanized steel flanges

Standards:

  • Manufacturer certified to ISO 9001:2015 and ISO 14001:2015
  • DIRECTIVE 2014/68/EU: Compatible for Group 1 Liquids and
    Gases o DN32-50: Risk Category I, CE marking 0056
    o DN65-300: Risk Category II, CE marking 0056
  • Flanges in accordance with EN 1092-1 PN10/16

Caractéristiques techniques TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE

Data sheet

Reference
15670000PN16050
Matière
Brides acier électrozingué
Entraxe
130 mm
Type de raccordement
À brides EN1092-1 PN10 - À brides EN1092-1 PN16
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-20°C
Température maximum
150°C
Fluide admissible
Produits chimiques hautement agressifs à hautes températures, hydrocarbures, solvants aromatiques
Normes et certifications
CE - ISO 9001 : 2015
Normalisation
Directive 2014/68/UE
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 1567

Fiche technique 1567

Download (601.21KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE

Voici la liste des références et poids correspondants aux options séléctionnées.
15670000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 50
Diameter DN DN 50
Packed weight 3,7kg
1173.93 € tax excl.
Consulter
15670000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 65
Diameter DN DN 65
Packed weight 4,8kg
1281.48 € tax excl.
Consulter
15670000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 80
Diameter DN DN 80
Packed weight 5,3kg
1398.61 € tax excl.
Consulter
15670000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 100
Diameter DN DN 100
Packed weight 6,2kg
1579.14 € tax excl.
Consulter
15670000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 125
Diameter DN DN 125
Packed weight 8,2kg
1860.79 € tax excl.
Consulter
15670000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 150
Diameter DN DN 150
Packed weight 11,2kg
2164.08 € tax excl.
Consulter
15670000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 200
Diameter DN DN 200
Packed weight 16,8kg
2799.58 € tax excl.
Consulter
15670000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 250
Diameter DN DN 250
Packed weight 21,6kg
3862.76 € tax excl.
Consulter
15670000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 300
Diameter DN DN 300
Packed weight 30,1kg
4412.4 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
15670000PN16050 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 50 DN 50 3,7kg 1173.93 € tax excl.
15670000PN16065 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 65 DN 65 4,8kg 1281.48 € tax excl.
15670000PN16080 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 80 DN 80 5,3kg 1398.61 € tax excl.
15670000PN16100 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 100 DN 100 6,2kg 1579.14 € tax excl.
15670000PN16125 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 125 DN 125 8,2kg 1860.79 € tax excl.
15670000PN16150 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 150 DN 150 11,2kg 2164.08 € tax excl.
15670000PN10200 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 200 DN 200 16,8kg 2799.58 € tax excl.
15670000PN10250 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 250 DN 250 21,6kg 3862.76 € tax excl.
15670000PN10300 - TEGUFLEX® Industrial Expansion Joint, 130 mm Center Distance, FKM, Flanged, PURPLE - DN 300 DN 300 30,1kg 4412.4 € tax excl.
