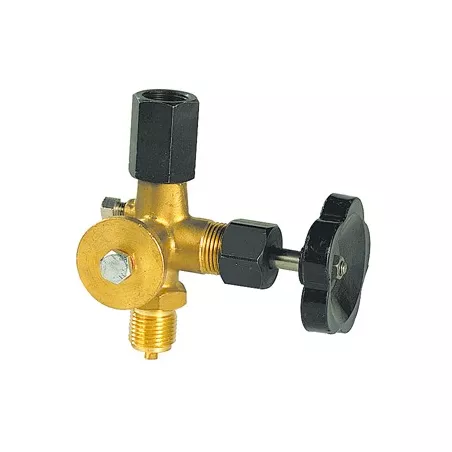

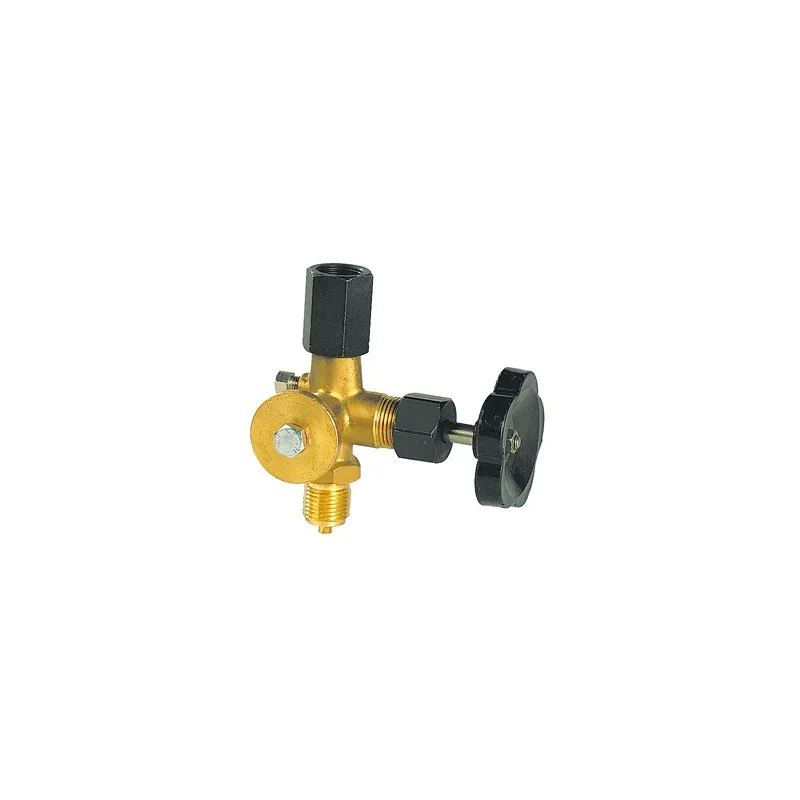

High-pressure gauge valve with lock nut and Ø 40 mm brass BSP MF test flange

Manomètres
Robinet porte manomètre haute pression avec écrou tendeur et bride de contrôle Ø 40 mm laiton BSP MF
search
  • Robinet porte manomètre haute pression avec écrou tendeur et bride de contrôle Ø 40 mm laiton BSP MF
  • DIMENSIONS MODELE MALE - FEMELLE AVEC BRIDE DE CONTROLE REF.1391 ( en mm )
  • NOMENCLATURE 1390 et 1391

Photos non contractuelles

High-pressure gauge valve with lock nut and Ø 40 mm brass BSP male/female control flange

Application:

  • For gases and non-viscous, non-crystallizing liquids that do not attack copper alloys
  • Minimum permissible temperature Ts: -10 °C
  • Maximum permissible temperature Ts: +120°C
  • Maximum allowable pressure Ps: 250 bar

Available in:

  • Male/Female BSP with locknut and Ø 40 mm DN 1/2“ control flange
Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€101.68 Tax included

84.73 € tax excl.

Unité de vente : Pièce
RPMHPLAB0BMF015
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information High-pressure gauge valve with lock nut and Ø 40 mm brass BSP MF test flange

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • High pressure
  • PTFE gland
  • Reduced bore
  • With bleed screw

Construction:

  • Dimensions: DN 1/2"
  • Connection: Male / Female BSP
  • Material: Brass

Caractéristiques techniques High-pressure gauge valve with lock nut and Ø 40 mm brass BSP MF test flange

Data sheet

Reference
RPMHPLAB0BMF015
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Diamètre
1/2"
Pression de service
250B
Température minimum
-10°C
Température maximum
120°C
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781116487

Download documentation

FT 1390 1391

Fiche technique robinet porte-manomètre haute pression mâle femelle BSP1/2'' écrou tendeur

Download (450.88KB)
