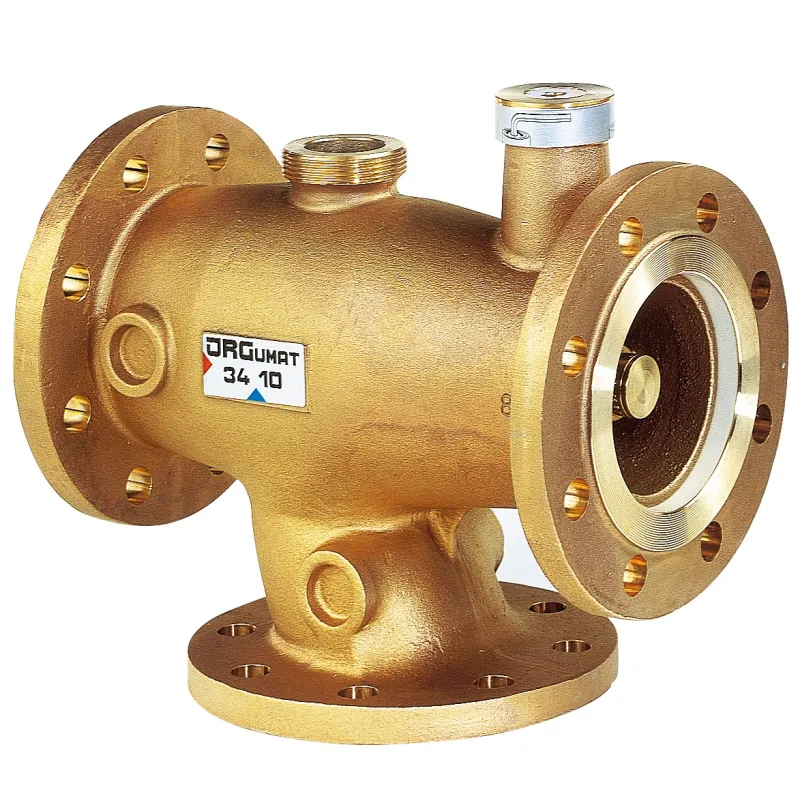

JRG34 Centralized Thermostatic Mixer for Multi-Unit Buildings

Function:

The JRG34 thermostatic mixer, installed at the tank outlet, delivers domestic hot water at a constant temperature.
It provides the convenience of instant hot water and enables significant savings.

Supplied with gaskets - Without circuit board.

Adjustable mixed temperature. Bronze
body, integrated connection for loop return (except 1/2").

Plus de détails
Normes et certifications : Certification ACSType de raccordement : À brides EN1092-1 PN16Fluide admissible : Eau sanitaire et potable1
dn 65 20 - 30°c
Are you an individual?
Are you a professional?

Log in to find out your discount.

€4,315.78 Tax included

3596.48 € tax excl.

Unité de vente : Pièce
JGR34B203001665
Temperature ranges: 20 - 30°C
Flanges: DN 65
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information JRG34 Centralized Flanged Thermostatic Mixing Valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Max. pressure 10 bar
  • Max. temperature 90 °C
  • The JRG34 thermostatic mixing valve series ranges from 1/2" to 2" with union fittings, and DN 65 and DN 80 with PN 10/16 flanges
  • The return from the loop circuit connects directly to the unit (except 1/2")

Construction:

  • Bronze body
  • flanged models

Specify the temperature range when ordering:

25 °C adjustable from 20 to 30 °C,
40 °C adjustable from 30 to 45 °C,
48 °C adjustable from 36 to 53 °C,
55 °C adjustable from 45 to 65 °C.

Caractéristiques techniques JRG34 Centralized Flanged Thermostatic Mixing Valve

Data sheet

Reference
JGR34B203001665
Matière
Bronze
Type de raccordement
À brides EN1092-1 PN16
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température maximum
90°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523830014438

Download documentation

FT JRG34

Fiche technique Mitigeurs thermostatique JRG34 centralisés

Download (890.29KB)

Caractéristiques liées à la version du produit JRG34 Centralized Flanged Thermostatic Mixing Valve

Voici la liste des références et poids correspondants aux options séléctionnées.
JGR34B203001665 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 20 - 30°C - DN 65
Temperature ranges 20 - 30°C
Flanges DN 65
Packed weight 24,36kg
3596.48 € tax excl.
Consulter
JGR34B203001680 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 20 - 30°C - DN 80
Temperature ranges 20 - 30°C
Flanges DN 80
Packed weight 28,98kg
4080.41 € tax excl.
Consulter
JGR34B304501665 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 30 - 45°C - DN 65
Temperature ranges 30 - 45°C
Flanges DN 65
Packed weight 24,36kg
3596.48 € tax excl.
Consulter
JGR34B304501680 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 30 - 45°C - DN 80
Temperature ranges 30 - 45°C
Flanges DN 80
Packed weight 29,4kg
4080.41 € tax excl.
Consulter
JGR34B365301665 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 36 - 53°C - DN 65
Temperature ranges 36 - 53°C
Flanges DN 65
Packed weight 24,57kg
3500.9 € tax excl.
Consulter
JGR34B365301680 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 36 - 53°C - DN 80
Temperature ranges 36 - 53°C
Flanges DN 80
Packed weight 27,93kg
3966.89 € tax excl.
Consulter
JGR34B456501680 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 45 - 65°C - DN 80
Temperature ranges 45 - 65°C
Flanges DN 80
Packed weight 29,82kg
4080.41 € tax excl.
Consulter
JGR34B456501665 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 45 - 65°C - DN 65
Temperature ranges 45 - 65°C
Flanges DN 65
Packed weight 24,78kg
3596.48 € tax excl.
Consulter
Référence - Désignation Temperature ranges Flanges Packed weight Prix
JGR34B203001665 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 20 - 30°C - DN 65 20 - 30°C DN 65 24,36kg 3596.48 € tax excl.
JGR34B203001680 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 20 - 30°C - DN 80 20 - 30°C DN 80 28,98kg 4080.41 € tax excl.
JGR34B304501665 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 30 - 45°C - DN 65 30 - 45°C DN 65 24,36kg 3596.48 € tax excl.
JGR34B304501680 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 30 - 45°C - DN 80 30 - 45°C DN 80 29,4kg 4080.41 € tax excl.
JGR34B365301665 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 36 - 53°C - DN 65 36 - 53°C DN 65 24,57kg 3500.9 € tax excl.
JGR34B365301680 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 36 - 53°C - DN 80 36 - 53°C DN 80 27,93kg 3966.89 € tax excl.
JGR34B456501680 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 45 - 65°C - DN 80 45 - 65°C DN 80 29,82kg 4080.41 € tax excl.
JGR34B456501665 - JRG34 Centralized Flanged Thermostatic Mixing Valve - 45 - 65°C - DN 65 45 - 65°C DN 65 24,78kg 3596.48 € tax excl.
