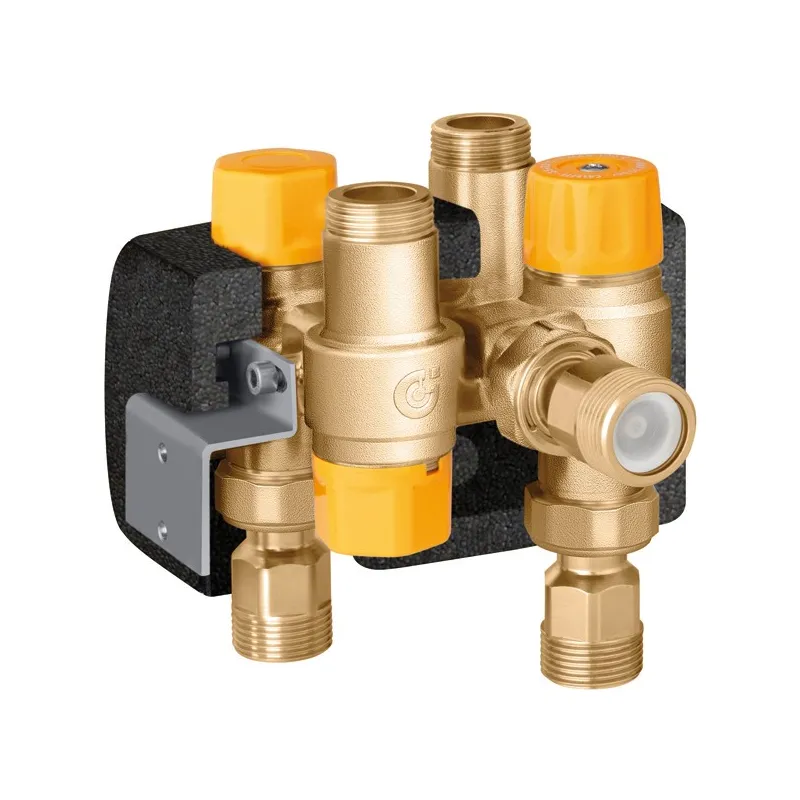

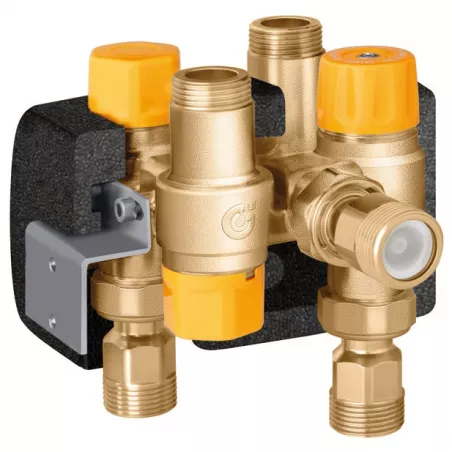

Solar thermostatic module for boilers with instantaneous DHW production (non-modulating boiler)

Function:

The solar tank-boiler connection module automatically manages and optimizes the use of thermal energy stored in a domestic hot water tank.
It ensures that the user always receives hot water at the set temperature, using the boiler only if the water from the solar tank is too cold.
These modules are available in two versions depending on the boiler type: with a storage tank or instantaneous.

The thermostatic kits allow for easy and automatic management of the distribution of domestic hot water produced by a solar system, with a boiler or an electric backup water heater.

Burn protection is ensured.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€382.16 Tax included

318.47 € tax excl.

Unité de vente : Pièce
MBSIE000000ECSI
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Solar thermostatic module for boilers with instantaneous DHW production

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

A thermostatic directional valve (1), located at the module’s inlet, receives hot water from the solar water heater.
Depending on the set temperature, the valve automatically directs the water between the distribution circuit and the boiler
circuit. A thermostatic device (2) controls the boiler’s inlet temperature to prevent it from cycling on and off, which can shorten its service life.
An anti-scald thermostatic mixing valve (3), located at the module’s outlet, controls the temperature of the water sent to the taps.

Construction:

  • Thermostatic mixing valve
  • Non-dezincification brass body
  • EPDM seals
  • Stainless steel springs
  • ABS lever



Features:

  • Compatible fluid: drinking water
  • Max. pressure: 10 bar
  • Max. inlet temperature: 100°C
  • Temperature range: 35–55°C

Directional valve:

  • Brass body
  • Ball seals: PTFE + EPDM O-ring
  • Shaft seals: Double EPDM O-ring
  • Max. operating pressure: 10 bar
  • Max. differential pressure: 5 bar
  • Max. inlet temperature: 100°C
  • Factory calibration: 45°C
  • Accuracy: ±2

Thermal insulation:

  • PVC, 7 mm thick
  • Density: 1.29 kg/dm³
  • Class B
  • Temperature range: -5 / 110°C

Caractéristiques techniques Solar thermostatic module for boilers with instantaneous DHW production

Data sheet

Reference
MBSIE000000ECSI
Matière
Laiton
Joint
EPDM
Internes
Inox
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
3/4"
Pression différentielle
Max 5B
Pression maximum
10 bar
Température maximum
100°C
Fluide admissible
Eau sanitaire et potable Installation solaire
Normes et certifications
Certification ACS
Équipements
Coque d'isolation
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615268676

Download documentation

FT KTSOL

Fiche technique Modules thermostatiques solaires
