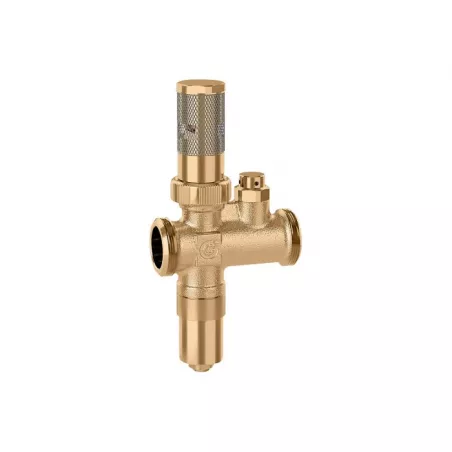

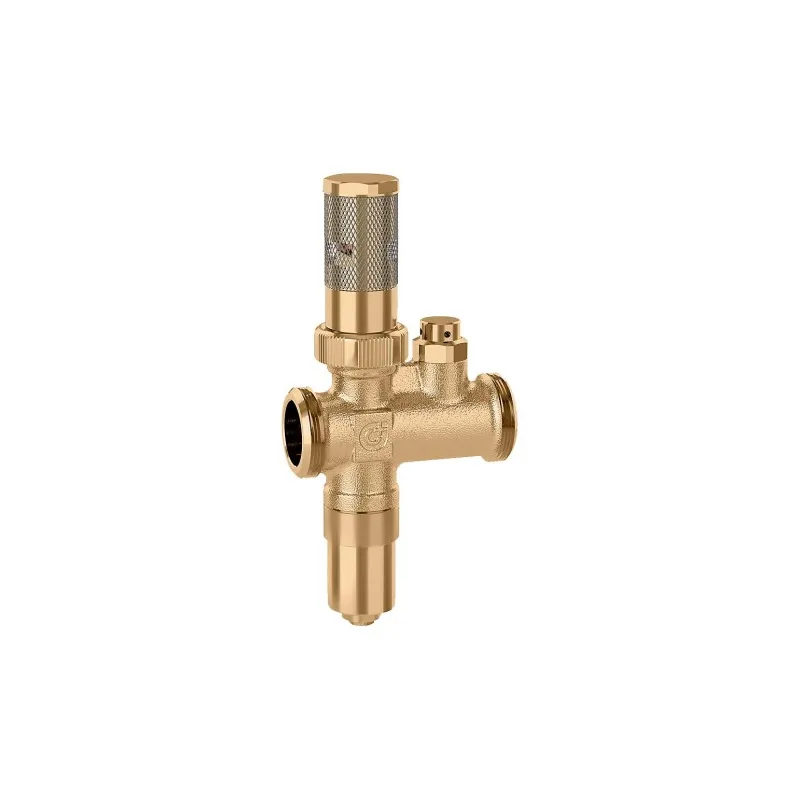

Anti-freeze valve with iStop air sensor

Function:

The frost protection valve allows fluid to be drained from the circuit when the temperature reaches an average value of 3°C. This prevents the formation of ice in the system, usually with a heat pump, thus avoiding damage to the machine and piping. The version with air sensor allows the system to operate in cooling mode even when water temperatures are close to 3°C. In these conditions, the intervention of the air sensor prevents water evacuation.

Plus de détails
1" (26/34)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€193.09 Tax included

160.91 € tax excl.

Unité de vente : Pièce
SP000000CA26MCL
Diameter (in inches): 1" (26/34)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Anti-freeze valve with iStop air sensor

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Materials
  • Body: brass EN 12164 CW614N (CA33M - CA40M) brass EN 12165 CW724R-M (CA26M) brass EN 12165 CW617N (CA26MCL - CA33MCL)stainless steel EN 10270-3 (AISI 302)
  • Springs: EPDM
  • Seals: CA26M - CA26MCL: G 1 "M (ISO 228-1)
  • Connections: CA33M - CA33MCL: G 1" 1/4M (ISO 228-1) CA40M: G 1" 1/2M (ISO 228-1)
Performance data
  • Medium: water
  • Max. working pressure:CAxxM: 10 barCAxxMCL: 5 bar
  • Temperature range: 0/+65°C
  • Ambient temperature range: -30/+60°C
  • Fluid temperature (opening): +3°C
  • Fluid temperature (closing): +4°C
  • Activation of antifreeze function depending on outside air temperature: <5°C for CAxxMCL
  • Accuracy: ± 1°C
  • Kv (right-hand channel): CA26M - CA26MCL: 55m3 /h CA33M - CA33MCL: 70m3 /h CA40M: 72m3 /h

Caractéristiques techniques Anti-freeze valve with iStop air sensor

Data sheet

Reference
SP000000CA26MCL
Matière
Laiton
Joint
EPDM
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température maximum
90°C
Plage de température d'exercice
0/65°C
Fluide admissible
Eau chauffage
Unité de vente
Pièce

Download documentation

FT CAMCL

Fiche technique CAMCL

Download (901.47KB)

Caractéristiques liées à la version du produit Anti-freeze valve with iStop air sensor

Voici la liste des références et poids correspondants aux options séléctionnées.
SP000000CA26MCL - Anti-freeze valve with iStop air sensor - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,8kg
160.91 € tax excl.
Consulter
SP000000CA33MCL - Anti-freeze valve with iStop air sensor - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1kg
181.9 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
SP000000CA26MCL - Anti-freeze valve with iStop air sensor - 1" (26/34) 1" (26/34) 0,8kg 160.91 € tax excl.
SP000000CA33MCL - Anti-freeze valve with iStop air sensor - 1"1/4 (33/42) 1"1/4 (33/42) 1kg 181.9 € tax excl.
