Discalair High-Flow Automatic Air Vent Kit, 1/2" 1"1/4 (33/42)

Purgeur automatique grands débits et haut de colonne
KIT Purgeur automatique Discalair grands débits F 1/2"
search
  • KIT Purgeur automatique Discalair grands débits F 1/2"
  • Purgeur automatique Discalair grands débits F 1/2"

Photos non contractuelles

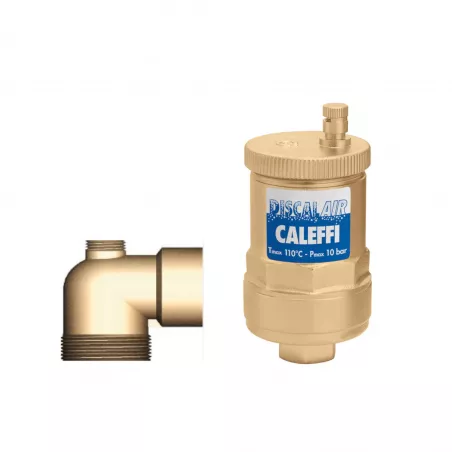

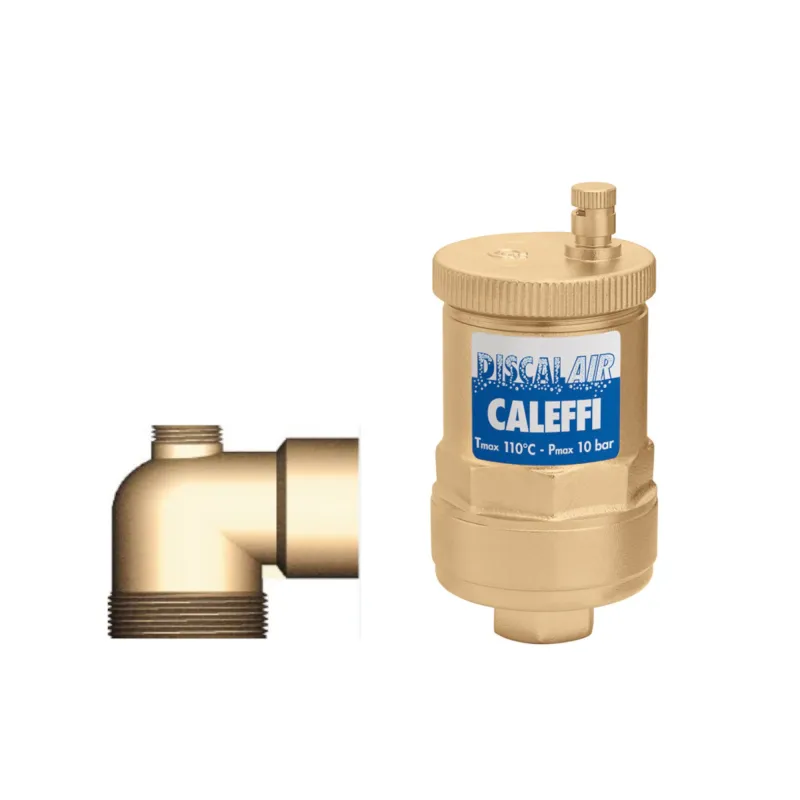

Discalair high-flow, top-of-column degassing kit with automatic vent

Function:

The DISCALAIR automatic air vent ensures that the heating system operates under optimal conditions. It removes air, the presence of which disrupts heat transfer, causes noise, and promotes internal corrosion in the circuits.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)1
1"1/4 (33/42)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€97.74 Tax included

81.45 € tax excl.

Unité de vente : Pièce
PAGDDL0KIT00F32
Diameter (in inches): 1"1/4 (33/42)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Discalair High-Flow Automatic Air Vent Kit, 1/2"

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional features:

  • This "high-capacity" air vent is capable of discharging large volumes of air, even at high pressure levels.
  • Maximum operating pressure: 10 bar
  • Discharge pressure: 10 bar
  • Max. temperature: 110°C
  • Max. glycol content: 50%

Construction:

  • MF brass elbow with M1/2" port
  • CW617N brass body and cover
  • PP float
  • EPDM seals
  • Stainless steel spring

Installation:

Install vertically at all points in the system where gas accumulation could interfere with proper operation in the event of freezing; install the MAXCAL air vent.

Operating principle:

The accumulation of air bubbles in the trap body causes the float to drop, thereby opening the valve.
Proper operation is guaranteed as long as the water pressure remains below the maximum venting pressure.
The internal geometry and sizing have been designed to vent air up to a pressure of 10 bar.

It is recommended to replace the trap cap with a hygroscopic cap when installing in hard-to-reach locations.

Hygroscopic plug: Click here

Caractéristiques techniques Discalair High-Flow Automatic Air Vent Kit, 1/2"

Data sheet

Reference
PAGDDL0KIT00F32
Matière
Laiton
Joint
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
1/2"
Pression maximum
10 bar
Température maximum
110°C
Fluide admissible
Eau chauffage Eau glycolée
Normes et certifications
Certification ACS
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT KP55133

Fiche technique kit purgeur pour ballon d'eau chaude sanitaire

Download (449.11KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Discalair High-Flow Automatic Air Vent Kit, 1/2"

Voici la liste des références et poids correspondants aux options séléctionnées.
PAGDDL0KIT00F32 - Discalair High-Flow Automatic Air Vent Kit, 1/2" - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,8kg
81.45 € tax excl.
Consulter
PAGDDL0KIT00F40 - Discalair High-Flow Automatic Air Vent Kit, 1/2" - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 0,9kg
82.78 € tax excl.
Consulter
PAGDDL0KIT00F50 - Discalair High-Flow Automatic Air Vent Kit, 1/2" - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 1kg
93.28 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
PAGDDL0KIT00F32 - Discalair High-Flow Automatic Air Vent Kit, 1/2" - 1"1/4 (33/42) 1"1/4 (33/42) 0,8kg 81.45 € tax excl.
PAGDDL0KIT00F40 - Discalair High-Flow Automatic Air Vent Kit, 1/2" - 1"1/2 (40/49) 1"1/2 (40/49) 0,9kg 82.78 € tax excl.
PAGDDL0KIT00F50 - Discalair High-Flow Automatic Air Vent Kit, 1/2" - 2" (50/60) 2" (50/60) 1kg 93.28 € tax excl.
