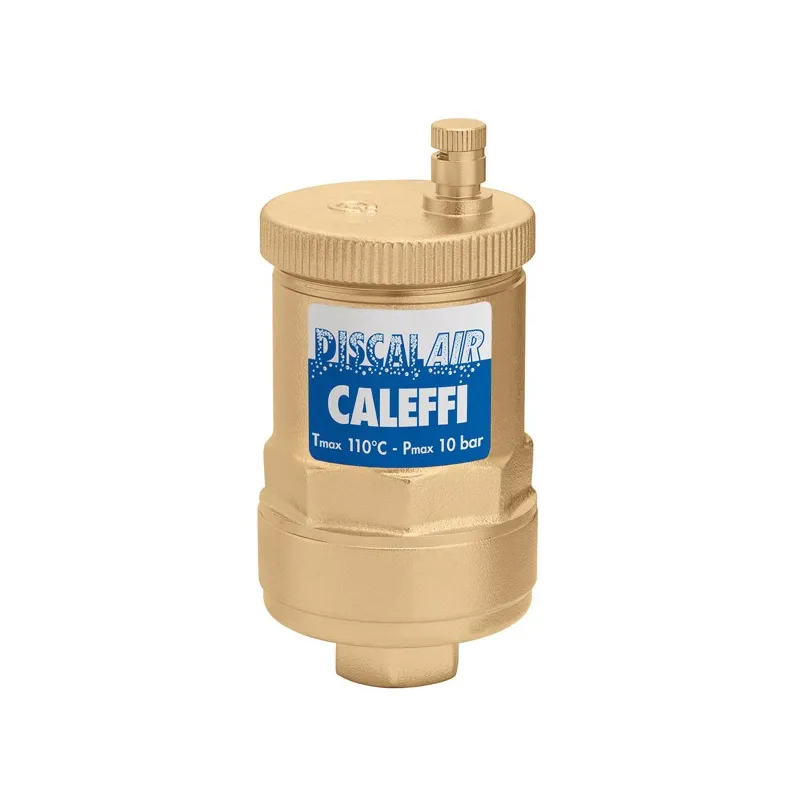

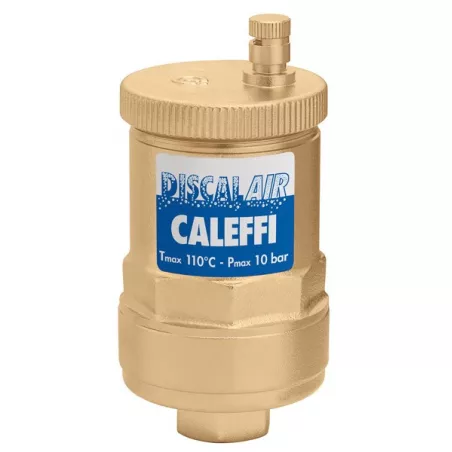

Discalair automatic air vent for high flow rates and top of column

Function:

The DISCALAIR automatic air vent allows the heating system to operate under optimal conditions. It removes air that disrupts heat exchange, causes noise, and promotes internal corrosion of the circuits.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€68.52 Tax included

57.1 € tax excl.

Unité de vente : Pièce
PAGDDL000000F15
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Discair automatic air vent, high flow rate, F 1/2"

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional characteristics:

  • This "high capacity" air vent is capable of evacuating large quantities of air, even at high pressure values.
  • Maximum working pressure: 10 bar
  • Venting pressure: 10 bar
  • Maximum temperature: 110°C
  • Maximum glycol content: 50%

Construction:

  • Body and cover: CW617N brass
  • PP float
  • EPDM seals
  • Stainless steel spring
  • F 1/2" connection

Installation:

Install vertically at all points in the system where gas accumulation could interfere with proper operation in the event of freezing. Install the MAXCAL air vent.

Operating principle:

The accumulation of air bubbles in the body of the vent causes the float to descend and consequently opens the shutter.
Proper operation is guaranteed as long as the water pressure remains below the maximum venting pressure.
The internal geometry and dimensions have been designed to vent air up to a pressure of 10 bar.

It is advisable to replace the air vent cap with a hygroscopic cap when installing in hard-to-reach locations.

Hygroscopic cap: Click here

Caractéristiques techniques Discair automatic air vent, high flow rate, F 1/2"

Data sheet

Reference
PAGDDL000000F15
Matière
Laiton
Joint
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
1/2"
Pression maximum
10 bar
Température maximum
110°C
Fluide admissible
Eau chauffage Eau glycolée
Normes et certifications
Certification ACS
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615113891

Download documentation

FT P551

Fiche technique purgeurs automatiques Discalair grands débits F 1/2"

Download (420.97KB)
