Radial-type brass equal tee fitting for multilayer tubing ø 63

Raccords à sertir type radial

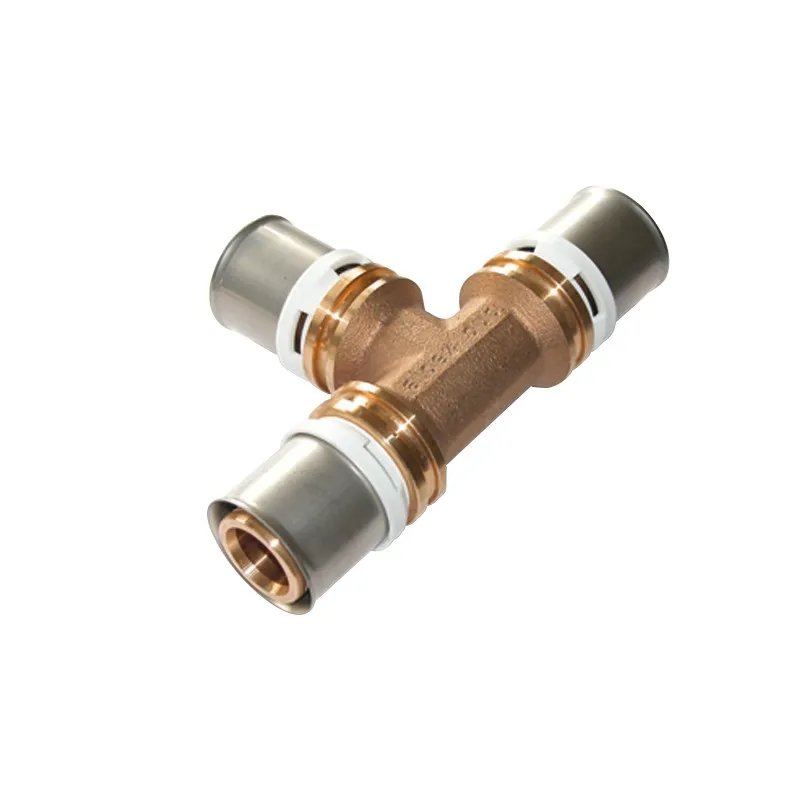

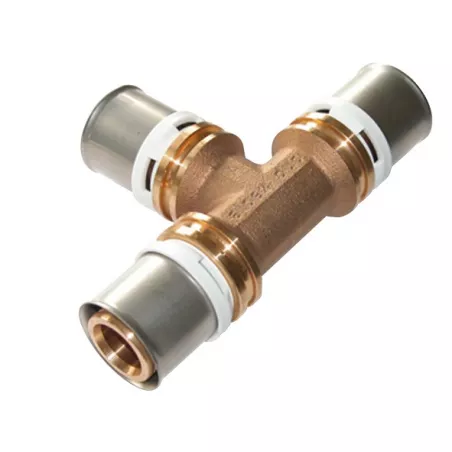

Raccord Té égal en Laiton à sertir type radial pour tube multicouche
search
  • Raccord Té égal en Laiton à sertir type radial pour tube multicouche
  • Schéma Raccord Té égal en Laiton à sertir type radial pour tube multicouche

Photos non contractuelles

Radial-type brass equal tee fitting for the Alpex-Duo XS and Alpex-Duo multilayer systems

Brass body.

Available for the following pipe dimensions:

  • 63 x 4.5
  • 75 x 5

Standards, certification:

  • Technical Approval 14/13-1852
  • Technical Approval 14/13-1880
Plus de détails
Normes et certifications : Avis technique CSTB 14/13-1852Normes et certifications : Avis technique CSTB 14/13-1880Fluide admissible : Eau sanitaire et potable
ø 63
Are you an individual?
Are you a professional?

Log in to find out your discount.

€91.03 Tax included

75.86 € tax excl.

Unité de vente : Pièce
MCRTML000000063
Diamètre: Ø 63
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Radial-type brass equal tee fitting for multilayer tubing

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

  • Class 2: 10 bar – Domestic hot water supply (and domestic cold water supply at 20°C / 10 bar)
  • Class 4: 10 bar – Low-temperature radiators, underfloor heating
  • Class 5: 6 bar – High-temperature radiators
  • "Chilled water" class: 10 bar

Technical specifications:

  • Brass body = CuZn35Pb2AI-C
  • Sleeve = X5CrNi18-10 stainless steel
  • O-ring = EPDM
  • Minimum crimping force = 32 kN

"ALPEX DUO" system with a 10-year warranty on pipes and fittings

Type F crimping
die Compatible with TH and B dies from Ø16 to Ø32 only

Installation:

The fitting consists of:

  • a body consisting of an insert with an EPDM O-ring designed to receive the pipe and an end for connecting to the system or to another pipe,
  • a ring for securing the crimp sleeve to the body, ensuring the tube is properly seated
  • a crimp sleeve that compresses the tube onto the insert through mechanical deformation

Pipe assembly must be performed using the tools recommended by the manufacturer and in the following order:

  • Cut the tube with a tube cutter
  • Deburr and calibrate the tube
  • Insert the tube into the fitting until it stops
  • Place the assembly to be crimped into the tool head and close the head
  • Engage the clamping mechanism, and press the button to release the crimped assembly

Caractéristiques techniques Radial-type brass equal tee fitting for multilayer tubing

Data sheet

Reference
MCRTML000000063
Système
ALPEX DUO Multicouches
Matière
Inox Laiton
Joint
EPDM Torique
Forme
Té
Type de raccordement
Sertissage radial
Diamètre
En fonction du modèle choisi
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Avis technique CSTB 14/13-1852 Avis technique CSTB 14/13-1880
Unité de vente
Pièce
Garantie fabricant
Système ALPEX DUO garantie 10 ans Tubes + Raccords + Empreintes

Specific References

ean13
4013960152944

Download documentation

FT FT77-V1 MCRT63

Fiche technique FT77-V1 Té égal à sertir laiton MCRT63

Download (447.51KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Radial-type brass equal tee fitting for multilayer tubing

Voici la liste des références et poids correspondants aux options séléctionnées.
MCRTML000000063 - Radial-type brass equal tee fitting for multilayer tubing - Ø 63
Diamètre Ø 63
Packed weight 1,9278kg
75.86 € tax excl.
Consulter
MCRTML000000075 - Radial-type brass equal tee fitting for multilayer tubing - Ø 75
Diamètre Ø 75
Packed weight 3,14895kg
235.72 € tax excl.
Consulter
Référence - Désignation Diamètre Packed weight Prix
MCRTML000000063 - Radial-type brass equal tee fitting for multilayer tubing - Ø 63 Ø 63 1,9278kg 75.86 € tax excl.
MCRTML000000075 - Radial-type brass equal tee fitting for multilayer tubing - Ø 75 Ø 75 3,14895kg 235.72 € tax excl.
