90-degree radial-type brass press fitting for Ø75 multilayer pipes

Raccords à sertir type radial
Raccord coude 90 à sertir laiton de type radial pour tubes multicouches Ø75
search

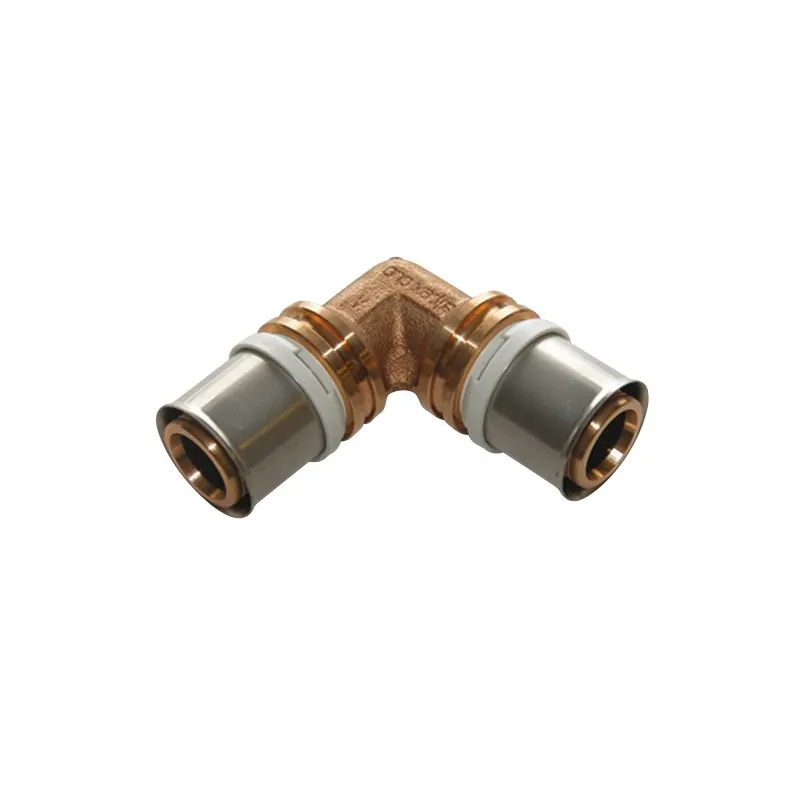

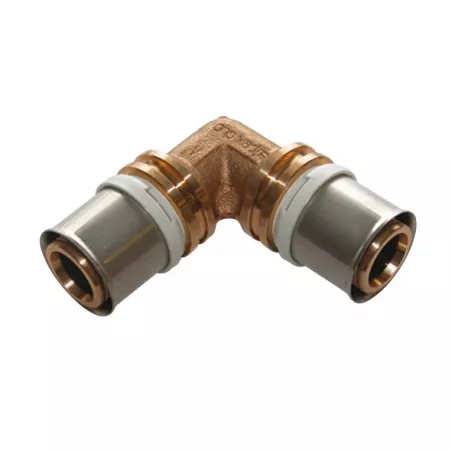

  • Raccord coude 90 à sertir laiton de type radial pour tubes multicouches Ø75
  • Scéma Raccord coude 90 à sertir laiton de type radial pour tubes multicouches Ø75

Photos non contractuelles

90° radial-type brass press fitting for Alpex-Duo XS and Alpex-Duo Ø75 multilayer systems

Brass body

Suitable for the following pipe dimensions:

  • 75 x 5

Standards, certification:

  • Technical Approval 14/13-1852
  • Technical Approval 14/13-1880
Plus de détails
Normes et certifications : Avis technique CSTB 14/13-1852Normes et certifications : Avis technique CSTB 14/13-1880Fluide admissible : Eau sanitaire et potable
Are you an individual?
Are you a professional?

Log in to find out your discount.

€180.80 Tax included

150.67 € tax excl.

Unité de vente : Pièce
MCRC9L000000075
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 90-degree radial-type brass press fitting for Ø75 multilayer pipes

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

  • Class 2: 10 bar – Domestic hot water supply (and domestic cold water supply at 20°C / 10 bar)
  • Class 4: 10 bar – Low-temperature radiators, underfloor heating
  • Class 5: 6 bar – High-temperature radiators
  • "Chilled water" class: 10 bar

Technical specifications:

  • Brass body = CuZn35Pb2AI-C
  • Sleeve = X5CrNi18-10 stainless steel
  • O-ring = EPDM
  • Minimum crimping force = 32 kN

"ALPEX DUO" system with a 10-year warranty on pipes and fittings

Type F crimping
die Compatible with TH and B dies from Ø16 to Ø32 only

Installation:

The fitting consists of:

  • a body consisting of an insert with an EPDM O-ring designed to receive the pipe and an end for connecting to the system or to another pipe,
  • a ring for securing the crimp sleeve to the body, ensuring the tube is properly seated
  • a crimp sleeve that compresses the tube onto the insert through mechanical deformation

Pipe assembly must be performed using the tools recommended by the manufacturer and in the following order:

  • Cut the tube with a tube cutter
  • Deburr and calibrate the tube
  • Insert the tube into the fitting until it stops
  • Place the assembly to be crimped into the tool head and close the head
  • Engage the clamping mechanism, and press the button to release the crimped assembly

Caractéristiques techniques 90-degree radial-type brass press fitting for Ø75 multilayer pipes

Data sheet

Reference
MCRC9L000000075
Système
ALPEX DUO Multicouches
Matière
Inox Laiton
Joint
EPDM PTFE Torique
Forme
Coude 90°
Rayon
Petit rayon
Type de raccordement
Sertissage radial
Diamètre
Ø75
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Avis technique CSTB 14/13-1852 Avis technique CSTB 14/13-1880
Unité de vente
Pièce
Garantie fabricant
Système ALPEX DUO garantie 10 ans Tubes + Raccords + Empreintes

Specific References

ean13
4013960322156

Download documentation

FT288

Fiche technique Coude à sertir laiton FT76-V1

Download (535.35KB)
