Wall outlet for Alpex - Duo multilayer system, Ø16

Description:

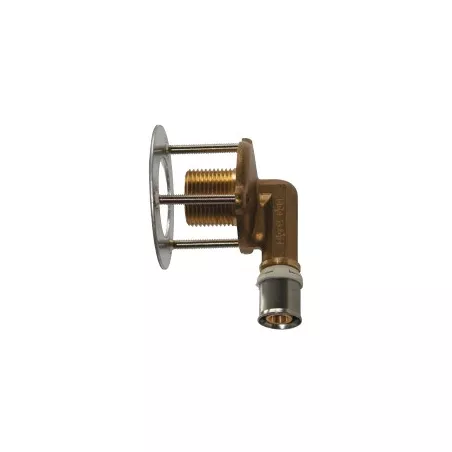

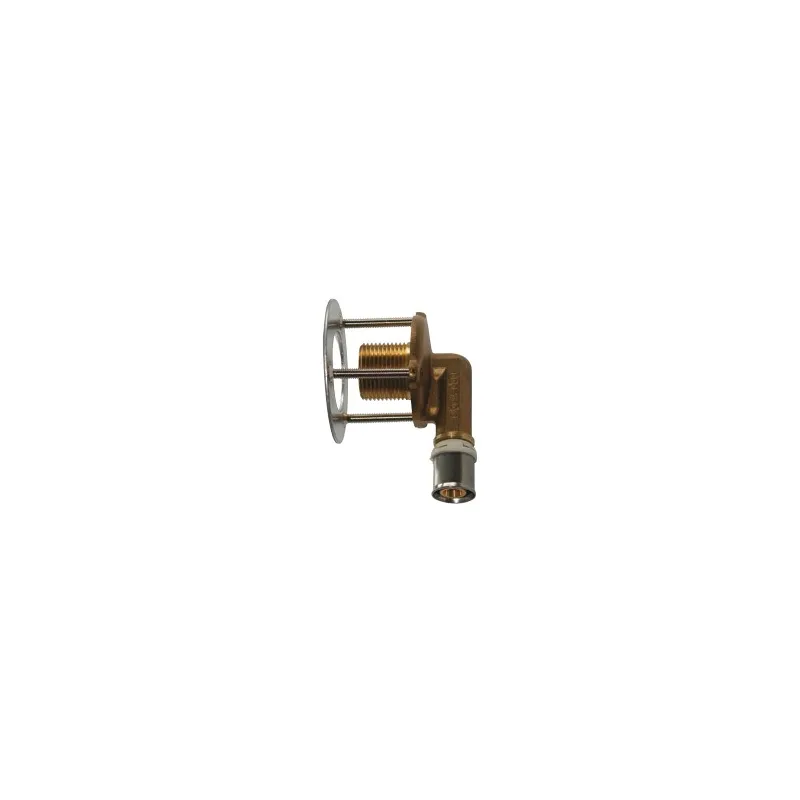

Radial press fitting for Alpex Duo XS and Turatec multilayer pipes. Pipe dimensions: 16 x 2.0. Brass body. Front-mounted.

Front-mounted wall outlet F1/2" and M3/4" x Ø16 press fitting for multilayer pipe

Set:

  • Wall outlet: Ø 16 tube, threaded outlet, 3/4" OD, 1/2" ID
  • Mounting plate for wall outlet with 3 screws

Standards, certifications:

  • Technical Approval 14/13-1852
  • Technical Approval 14/13-1880
Plus de détails
Normes et certifications : Avis technique CSTB 14/13-1852Normes et certifications : Avis technique CSTB 14/13-1880Type de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable
Are you an individual?
Are you a professional?

Log in to find out your discount.

€18.91 Tax included

15.76 € tax excl.

Unité de vente : Pièce
MCRSOL000001620
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Wall outlet for Alpex - Duo multilayer system, Ø16

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

  • Class 2: 10 bar – Domestic hot water supply (and domestic cold water supply at 20°C / 10 bar)
  • Class 4: 10 bar – Low-temperature radiators, underfloor heating
  • Class 5: 6 bar – High-temperature radiators
  • "Chilled water" class: 10 bar

Technical specifications:

  • Brass body = CuZn35Pb2AI-C
  • Sleeve = X5CrNi18-10 stainless steel
  • O-ring = EPDM
  • Minimum crimping force = 32 kN

"ALPEX DUO" system with a 10-year warranty on pipes and fittings

Type F crimping
die Compatible with TH and B dies from Ø16 to Ø32 only

Installation:

The fitting consists of:

  • a body consisting of an insert with an EPDM O-ring designed to receive the pipe and an end for connecting to the system or to another pipe,
  • a ring for securing the crimp sleeve to the body, ensuring the tube is properly seated
  • a crimp sleeve that compresses the tube onto the insert through mechanical deformation

Pipe assembly must be performed using the tools recommended by the manufacturer and in the following order:

  • Cut the tube with a tube cutter
  • Deburr and calibrate the tube
  • Insert the tube into the fitting until it stops
  • Place the assembly to be crimped into the tool head and close the head
  • Engage the clamping mechanism, and press the button to release the crimped assembly

Caractéristiques techniques Wall outlet for Alpex - Duo multilayer system, Ø16

Data sheet

Reference
MCRSOL000001620
Système
ALPEX DUO Multicouches
Matière
Inox Laiton
Joint
EPDM Torique
Type de raccordement
Sertissage radial Á visser BSP (pas du gaz)
Raccordement
Femelle Mâle
Diamètre
1/2" 3/4" Ø16
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Avis technique CSTB 14/13-1852 Avis technique CSTB 14/13-1880
Unité de vente
Pièce
Garantie fabricant
Système ALPEX DUO garantie 10 ans Tubes + Raccords + Empreintes

Specific References

ean13
3519610035441

Download documentation

Fiche technique FT99-V1

Fiche technique Sortie de cloison FT99-V1

Download (332.75KB)
