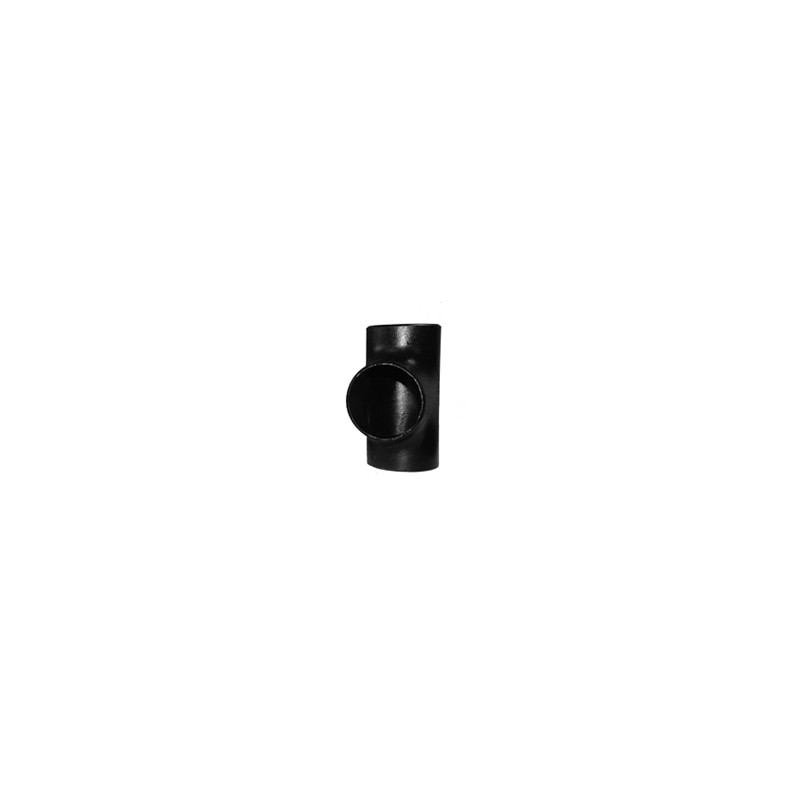

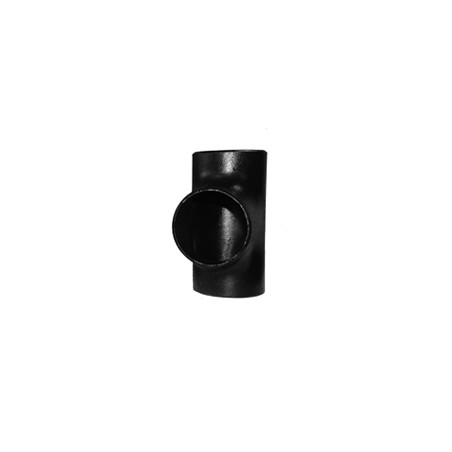

Equal tee ASTM seamless P265GH Series E / SCH20 42.4mm x 2.6mm

Description:

The P265GH steel seamless tee is a "T"-shaped fitting for connecting three pipe sections of the same nominal diameter. Made from P265GH carbon steel, this tee features a seamless construction, guaranteeing high mechanical strength and optimum sealing.

The main features of this product are

• Material: P265GH carbon steel, EN 10216-2 compliant.
• Type: Seamless.
• Series: E (equivalent to SCH20).
• Finish: Black
• Ends: Butt-weld (BW), facilitating seamless connection in piping systems

It's important to select the right dimensions for your specific project requirements.

The P265GH E-series steel seamless tee (SCH20) is an essential component in industrial piping systems. Here are additional details on its technical features:

Manufacturing standards: This tee complies with EN 10216-2 standards for seamless steel tubing and ASTM specifications for pipe fittings.

Pressure rating: Series E (SCH20) corresponds to a specific wall thickness, influencing the pressure rating the elbow can withstand. It is essential to consult the correspondence tables to determine the maximum pressure according to nominal diameter and wall thickness.

Available sizes: Equal Tees are available in a range of nominal diameters (DN), for example, from DN10 to DN600, with wall thicknesses varying according to diameter and series selected.

Applications: This type of elbow is commonly used in the oil, gas, chemical and power industries, where high-pressure and high-temperature conditions are present.

The ASTM LR 3D 90° seamless tee in P265GH E series steel (SCH20) features the following technical characteristics:

Temperature and pressure :

Service temperature: P265GH steel is designed for high-temperature applications, with notable creep resistance at 400°C.

Pressure rating: Series E (SCH20) corresponds to a specific wall thickness influencing the pressure rating. Precise values depend on the nominal diameter and wall thickness of the elbow. It is recommended to consult the relevant standards or the manufacturer's specifications for exact data.

Dimensional tolerances :

The dimensional tolerances of P265GH steel elbows are defined by EN 10253-2 and EN 10028-2. These standards specify permissible tolerances for dimensions such as outside diameter, wall thickness, bending radius and length. Precise values vary according to the nominal dimensions of the elbow and the specific requirements of the application. It is essential to refer to manufacturers' standards or data sheets for detailed information.

Mechanical properties :

Minimum yield strength: 265 MPa for thicknesses up to 16 mm.

Tensile strength: 410 to 530 MPa.

Elongation at break: 22% minimum.

These properties ensure that the P265GH elbow is suitable for pressure and high-temperature applications, offering a combination of mechanical strength and ductility.

Chemical composition:

P265GH steel is an unalloyed steel with the following chemical composition:

Carbon (C): ≤ 0.20

Silicon (Si): ≤ 0.40

Manganese (Mn): 0.80 to 1.40

Phosphorus (P): ≤ 0.025

Sulfur (S): ≤ 0.010 %

Total aluminum (Al): ≥ 0,020 %

Nitrogen (N): ≤ 0.012 %

This composition gives P265GH steel good weldability and mechanical properties suitable for high-temperature and pressure applications.

For precise and detailed information, we recommend consulting EN 10253-2 and EN 10028-2, as well as the manufacturers' technical data sheets.
