Brass cam coupling with C-type spline 1/2" (15/21)

Raccords à cames laiton

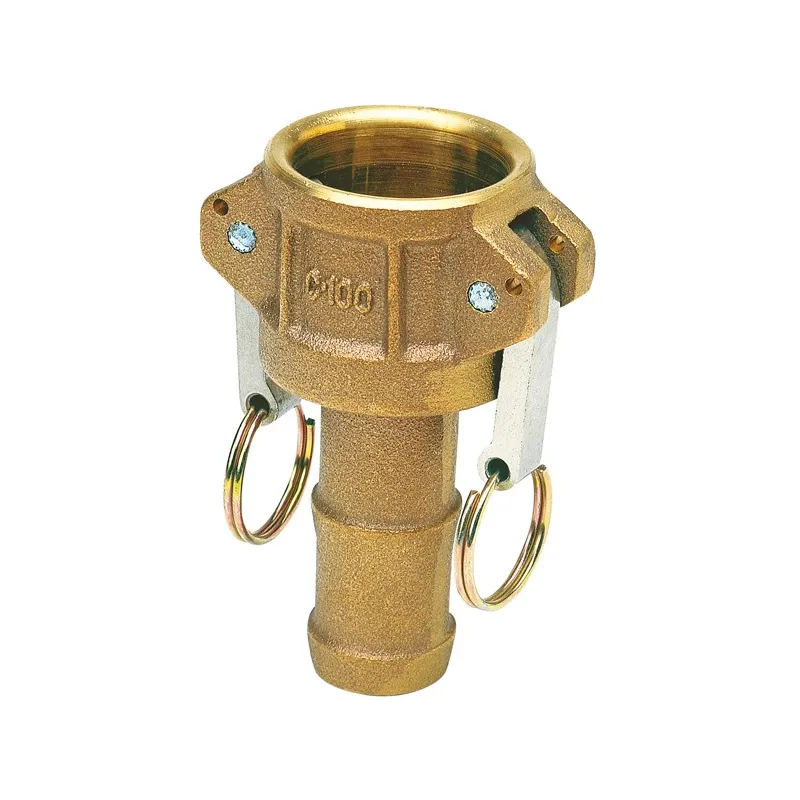

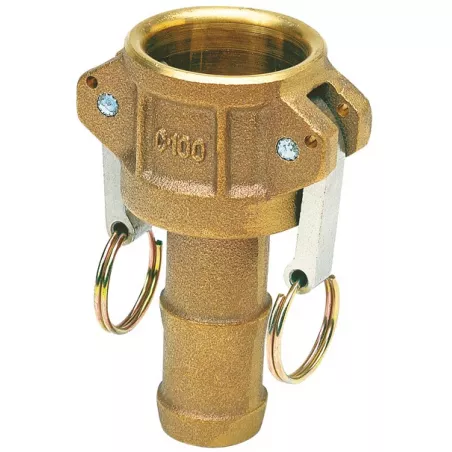

Raccord à cames laiton coupleur cannelé C
search
  • Raccord à cames laiton coupleur cannelé C
  • Coupleur cannelé type C Ref.2263
  • NOMENCLATURE 2261-2268

Photos non contractuelles

Brass cam-type spline coupling, Type C - BSP

Application:

  • Compatible common fluids
  • Minimum and maximum permissible temperature Ts: -10°C to +60°C with NBR seal
  • Maximum allowable pressure Ps: See table below

Available in: DN 1/2" to DN 4"

Option: Upon request: EPDM, Nitrile, FKM, or PTFE (Viton) seals

Plus de détails
Normes et certifications : ISO 9001 ACM-UKAS1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€13.61 Tax included

11.34 € tax excl.

Unité de vente : Pièce
22630L0000CA015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Brass cam coupling with C-type spline

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
DN 1/2“ 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
Ps (Bar) 11 16 16 16 16 16 11 9 7

Features:

  • Brass fittings
  • NBR seal (only on couplers)
  • Complies with MIL-C-27487

Construction:

  • Brass body
  • NBR seal (only on couplers)
  • Brass cams
  • Dimensions: DN 1/2" to DN 4"
  • Connection: C-type splined coupling
  • Material: Brass

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 2014/68/EU: Products excluded from the directive (Article 4, § 3)
  • Manufactured in accordance with MIL-C-27487 and A-A 59326
  • Female thread and cylindrical BSP male thread in accordance with ISO 228-1

Caractéristiques techniques Brass cam coupling with C-type spline

Data sheet

Reference
22630L0000CA015
Matière
Laiton
Joint
NBR
Forme
Coupleur cannelé
Entraxe
En fonction du modèle choisi
Type de raccordement
À cames
Raccordement
Cannelé
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-10°C
Température maximum
60°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
ISO 9001 ACM-UKAS
Normalisation
Directive 97/23/CE : produits exclus (article 1, § 3.2) Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598780003962

Download documentation

FT 2261-2268

Fiche technique raccords rapides à cames laiton

Download (793.07KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Brass cam coupling with C-type spline

Voici la liste des références et poids correspondants aux options séléctionnées.
22630L0000CA015 - Brass cam coupling with C-type spline - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,1743kg
11.34 € tax excl.
Consulter
22630L0000CA020 - Brass cam coupling with C-type spline - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,25725kg
14.24 € tax excl.
Consulter
22630L0000CA025 - Brass cam coupling with C-type spline - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,41475kg
17.65 € tax excl.
Consulter
22630L0000CA032 - Brass cam coupling with C-type spline - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,61425kg
26.55 € tax excl.
Consulter
22630L0000CA040 - Brass cam coupling with C-type spline - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 0,7476kg
30.78 € tax excl.
Consulter
22630L0000CA050 - Brass cam coupling with C-type spline - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 0,87045kg
45.14 € tax excl.
Consulter
22630L0000CA065 - Brass cam coupling with C-type spline - 2"1/2 (66/76)
Diameter (in inches) 2"1/2 (66/76)
Packed weight 1,37235kg
56.84 € tax excl.
Consulter
22630L0000CA080 - Brass cam coupling with C-type spline - 3" (80/90)
Diameter (in inches) 3" (80/90)
Packed weight 1,554kg
89.12 € tax excl.
Consulter
22630L0000CA100 - Brass cam coupling with C-type spline - 4" (102/114)
Diameter (in inches) 4" (102/114)
Packed weight 2,6145kg
122.07 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
22630L0000CA015 - Brass cam coupling with C-type spline - 1/2" (15/21) 1/2" (15/21) 0,1743kg 11.34 € tax excl.
22630L0000CA020 - Brass cam coupling with C-type spline - 3/4" (20/27) 3/4" (20/27) 0,25725kg 14.24 € tax excl.
22630L0000CA025 - Brass cam coupling with C-type spline - 1" (26/34) 1" (26/34) 0,41475kg 17.65 € tax excl.
22630L0000CA032 - Brass cam coupling with C-type spline - 1"1/4 (33/42) 1"1/4 (33/42) 0,61425kg 26.55 € tax excl.
22630L0000CA040 - Brass cam coupling with C-type spline - 1"1/2 (40/49) 1"1/2 (40/49) 0,7476kg 30.78 € tax excl.
22630L0000CA050 - Brass cam coupling with C-type spline - 2" (50/60) 2" (50/60) 0,87045kg 45.14 € tax excl.
22630L0000CA065 - Brass cam coupling with C-type spline - 2"1/2 (66/76) 2"1/2 (66/76) 1,37235kg 56.84 € tax excl.
22630L0000CA080 - Brass cam coupling with C-type spline - 3" (80/90) 3" (80/90) 1,554kg 89.12 € tax excl.
22630L0000CA100 - Brass cam coupling with C-type spline - 4" (102/114) 4" (102/114) 2,6145kg 122.07 € tax excl.
