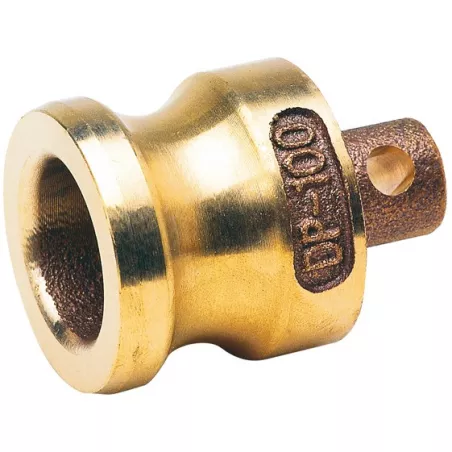

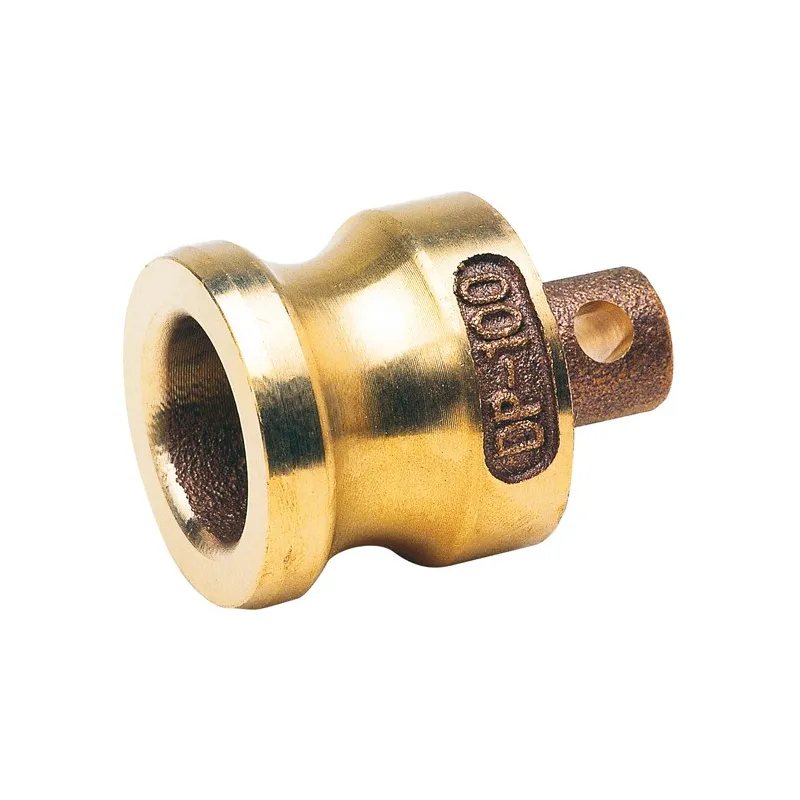

Brass cam fitting with DP adapter cap 1/2" (15/21)

Raccords à cames laiton
Raccord à cames laiton bouchon adaptateur DP
search
  • Raccord à cames laiton bouchon adaptateur DP
  • Bouchon adaptateur type DP Ref.2268
  • NOMENCLATURE 2261-2268

Photos non contractuelles

DP-type brass cam adapter plug - BSP

Application:

  • Compatible common fluids
  • Minimum and maximum permissible temperature Ts: -10°C to +60°C with NBR seal
  • Maximum allowable pressure Ps: See table below

Available in: DN 1/2" to DN 4"

Option: Upon request: EPDM, Nitrile, FKM, or PTFE (Viton) seals

Plus de détails
Normes et certifications : ISO 9001 ACM-UKAS1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€6.40 Tax included

5.33 € tax excl.

Unité de vente : Pièce
22680L000000015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Brass cam fitting with DP adapter cap

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
DN 1/2“ 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
Ps (Bar) 11 16 16 16 16 16 11 9 7

Features:

  • Brass fittings
  • NBR seal (only on couplers)
  • Complies with MIL-C-27487

Construction:

  • Brass body
  • NBR seal (only on couplers)
  • Brass cams
  • Dimensions: DN 1/2" to DN 4"
  • Connection: DP adapter plug
  • Material: Brass

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 2014/68/EU: Products excluded from the directive (Article 4, § 3)
  • Manufactured in accordance with MIL-C-27487 and A-A 59326
  • Female thread and cylindrical BSP male thread in accordance with ISO 228-1

Caractéristiques techniques Brass cam fitting with DP adapter cap

Data sheet

Reference
22680L000000015
Matière
Laiton
Joint
NBR
Forme
Bouchon
Entraxe
En fonction du modèle choisi
Type de raccordement
À cames
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-10°C
Température maximum
60°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
ISO 9001 ACM-UKAS
Normalisation
Directive 97/23/CE : produits exclus (article 1, § 3.2) Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598780004419

Download documentation

FT 2261-2268

Fiche technique raccords rapides à cames laiton

Download (793.07KB)

Caractéristiques liées à la version du produit Brass cam fitting with DP adapter cap

Voici la liste des références et poids correspondants aux options séléctionnées.
22680L000000015 - Brass cam fitting with DP adapter cap - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,0987kg
5.33 € tax excl.
Consulter
22680L000000020 - Brass cam fitting with DP adapter cap - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,11025kg
6.21 € tax excl.
Consulter
22680L000000025 - Brass cam fitting with DP adapter cap - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,168kg
9.78 € tax excl.
Consulter
22680L000000032 - Brass cam fitting with DP adapter cap - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,24675kg
14.04 € tax excl.
Consulter
22680L000000040 - Brass cam fitting with DP adapter cap - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 0,3255kg
16.77 € tax excl.
Consulter
22680L000000050 - Brass cam fitting with DP adapter cap - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 0,4578kg
25.06 € tax excl.
Consulter
22680L000000065 - Brass cam fitting with DP adapter cap - 2"1/2 (66/76)
Diameter (in inches) 2"1/2 (66/76)
Packed weight 0,735kg
34.16 € tax excl.
Consulter
22680L000000080 - Brass cam fitting with DP adapter cap - 3" (80/90)
Diameter (in inches) 3" (80/90)
Packed weight 0,903kg
46.54 € tax excl.
Consulter
22680L000000100 - Brass cam fitting with DP adapter cap - 4" (102/114)
Diameter (in inches) 4" (102/114)
Packed weight 1,47525kg
73.32 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
22680L000000015 - Brass cam fitting with DP adapter cap - 1/2" (15/21) 1/2" (15/21) 0,0987kg 5.33 € tax excl.
22680L000000020 - Brass cam fitting with DP adapter cap - 3/4" (20/27) 3/4" (20/27) 0,11025kg 6.21 € tax excl.
22680L000000025 - Brass cam fitting with DP adapter cap - 1" (26/34) 1" (26/34) 0,168kg 9.78 € tax excl.
22680L000000032 - Brass cam fitting with DP adapter cap - 1"1/4 (33/42) 1"1/4 (33/42) 0,24675kg 14.04 € tax excl.
22680L000000040 - Brass cam fitting with DP adapter cap - 1"1/2 (40/49) 1"1/2 (40/49) 0,3255kg 16.77 € tax excl.
22680L000000050 - Brass cam fitting with DP adapter cap - 2" (50/60) 2" (50/60) 0,4578kg 25.06 € tax excl.
22680L000000065 - Brass cam fitting with DP adapter cap - 2"1/2 (66/76) 2"1/2 (66/76) 0,735kg 34.16 € tax excl.
22680L000000080 - Brass cam fitting with DP adapter cap - 3" (80/90) 3" (80/90) 0,903kg 46.54 € tax excl.
22680L000000100 - Brass cam fitting with DP adapter cap - 4" (102/114) 4" (102/114) 1,47525kg 73.32 € tax excl.
