Brass male quick-connect fitting without a gasket 1/4" (8/13)

Raccords express (tête de chat)
Raccord express laiton mâle sans joint
search
  • Raccord express laiton mâle sans joint
  • NOMENCLATURE 2280 - 2288
  • Raccord express mâle Ref. 2281 et 2286

Photos non contractuelles

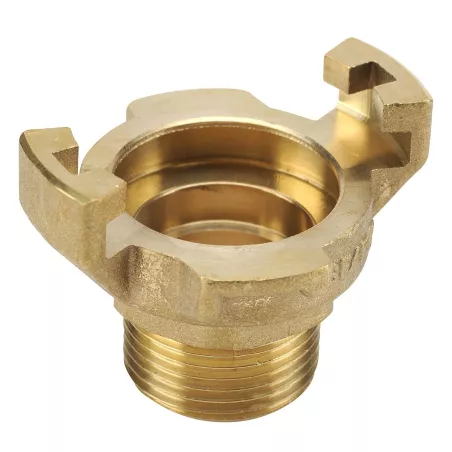

Quick-connect fitting (known as a "cat's head")—male brass, without a gasket

Application:

  • For water and compressed air
  • Minimum and maximum permissible temperature Ts: -5°C to +60°C
  • Maximum allowable pressure Ps: 10 bar

Available in: Male BSP quick-connect fitting without gasket, from 1/4" to 1-1/4"

Plus de détails
Normes et certifications : ISO 9001 WCS1
1/4" (8/13)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€3.83 Tax included

3.19 € tax excl.

Unité de vente : Pièce
EXPNML000000008
Diameter (in inches): 1/4" (8/13)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Brass male quick-connect fitting without a gasket

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Forged brass fittings
  • Complies with NFE 29573 standard
  • 41 mm between jaws

Construction:

  • Die-cast brass body
  • Clamp width: 41 mm
  • Size: 1/4" to 1-1/4"
  • Connection: BSP male
  • Material: Brass

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Directive 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Manufactured in accordance with NFE 29573
  • Cylindrical BSP tapping and threading in accordance with ISO 228-1

Caractéristiques techniques Brass male quick-connect fitting without a gasket

Data sheet

Reference
EXPNML000000008
Matière
Laiton matricé
Forme
Adaptateur mâle
Entraxe
En fonction du modèle choisi
Type de raccordement
Express
Raccordement
Mâle
Diamètre
En fonction du modèle choisi
Pression de service
10B
Température minimum
-5°C
Température maximum
60°C
Fluide admissible
Air comprimé Eau
Normes et certifications
ISO 9001 WCS NFE 29573
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598780002613

Download documentation

FT 2280

Fiche technique Raccord express laiton dit tête de chat 2280

Download (747.38KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Brass male quick-connect fitting without a gasket

Voici la liste des références et poids correspondants aux options séléctionnées.
EXPNML000000008 - Brass male quick-connect fitting without a gasket - 1/4" (8/13)
Diameter (in inches) 1/4" (8/13)
Packed weight 0,105kg
3.19 € tax excl.
Consulter
EXPNML000000010 - Brass male quick-connect fitting without a gasket - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,105kg
3.19 € tax excl.
Consulter
EXPNML000000015 - Brass male quick-connect fitting without a gasket - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,105kg
3.19 € tax excl.
Consulter
EXPNML000000020 - Brass male quick-connect fitting without a gasket - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,1176kg
3.35 € tax excl.
Consulter
EXPNML000000025 - Brass male quick-connect fitting without a gasket - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,12915kg
3.93 € tax excl.
Consulter
EXPNML000000032 - Brass male quick-connect fitting without a gasket - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,21525kg
5.62 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
EXPNML000000008 - Brass male quick-connect fitting without a gasket - 1/4" (8/13) 1/4" (8/13) 0,105kg 3.19 € tax excl.
EXPNML000000010 - Brass male quick-connect fitting without a gasket - 3/8" (12/17) 3/8" (12/17) 0,105kg 3.19 € tax excl.
EXPNML000000015 - Brass male quick-connect fitting without a gasket - 1/2" (15/21) 1/2" (15/21) 0,105kg 3.19 € tax excl.
EXPNML000000020 - Brass male quick-connect fitting without a gasket - 3/4" (20/27) 3/4" (20/27) 0,1176kg 3.35 € tax excl.
EXPNML000000025 - Brass male quick-connect fitting without a gasket - 1" (26/34) 1" (26/34) 0,12915kg 3.93 € tax excl.
EXPNML000000032 - Brass male quick-connect fitting without a gasket - 1"1/4 (33/42) 1"1/4 (33/42) 0,21525kg 5.62 € tax excl.
