Quick-connect brass plug without a gasket

Raccords express (tête de chat)
Raccord express laiton bouchon sans joint
search
  • Raccord express laiton bouchon sans joint
  • Bouchon express Ref.2283 et 2288
  • NOMENCLATURE 2280 - 2288

Photos non contractuelles

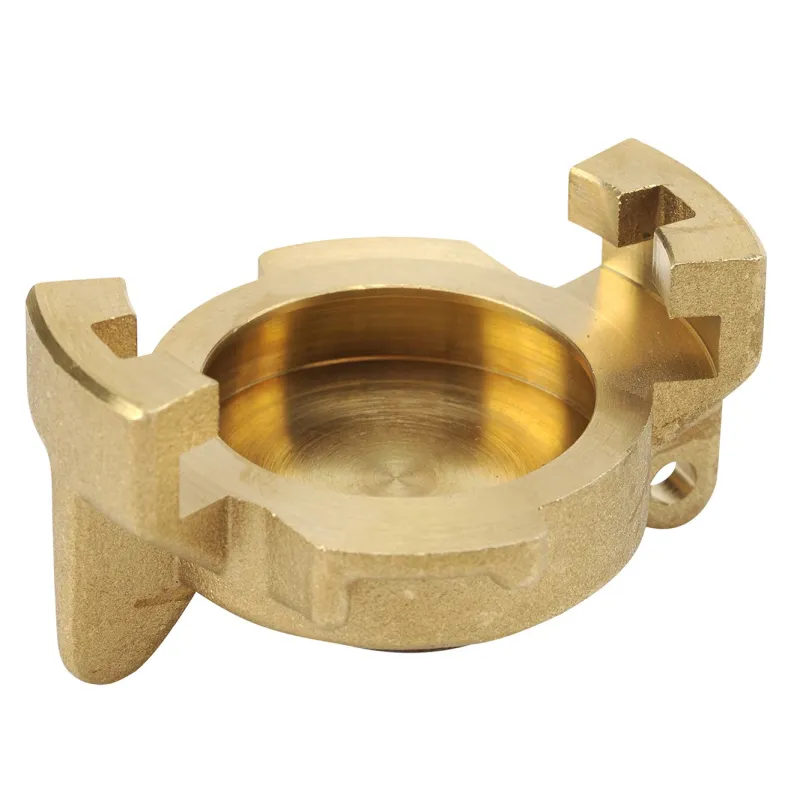

Quick-connect fitting (also known as a "cat's head" fitting) made of brass with a cap and no gasket

Application:

  • For water and compressed air
  • Minimum and maximum permissible temperature Ts: -5°C to +60°C
  • Maximum allowable pressure Ps: 10 bar

Available in: Plug without seal

Plus de détails
Normes et certifications : ISO 9001 WCS1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€3.67 Tax included

3.06 € tax excl.

Unité de vente : Pièce
EXPNBL000000000
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Quick-connect brass plug without a gasket

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Forged brass fittings
  • Complies with NFE 29573 standard
  • 41 mm between jaws

Construction:

  • Die-cast brass body
  • Clamp width: 41 mm
  • Dimensions: For all models, 41 mm between jaws
  • Connection: Plug
  • Material: Brass

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Directive 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Manufactured in accordance with NFE 29573
  • Cylindrical BSP tapping and threading in accordance with ISO 228-1

Caractéristiques techniques Quick-connect brass plug without a gasket

Data sheet

Reference
EXPNBL000000000
Matière
Laiton matricé
Forme
Bouchon
Entraxe
41mm
Type de raccordement
Express
Diamètre
En fonction du modèle choisi
Pression de service
10B
Température minimum
-5°C
Température maximum
60°C
Fluide admissible
Air comprimé Eau
Normes et certifications
ISO 9001 WCS NFE 29573
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598780002736

Download documentation

FT 2280

Fiche technique Raccord express laiton dit tête de chat 2280

Download (747.38KB)
