Quick-connect brass fitting with NBR seal

Raccords express (tête de chat)
Raccord express laiton bouchon avec joint NBR
search
  • Raccord express laiton bouchon avec joint NBR
  • Bouchon express Ref.2283 et 2288
  • NOMENCLATURE 2280 - 2288

Photos non contractuelles

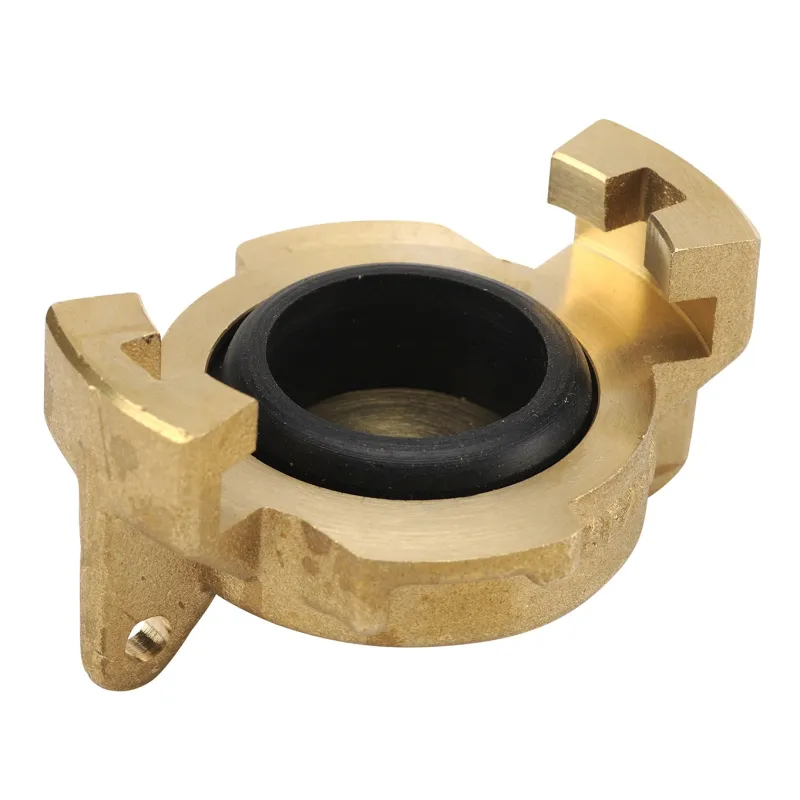

Quick-connect fitting (so-called "cat's head" type) with brass plug and pre-installed NBR gasket

Application:

  • For water and compressed air
  • Minimum and maximum permissible temperature Ts: -5°C to +60°C
  • Maximum allowable pressure Ps: 10 bar

Available in: Cap

Plus de détails
Normes et certifications : ISO 9001 WCS1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€4.61 Tax included

3.84 € tax excl.

Unité de vente : Pièce
EXPBBL000000000
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Quick-connect brass fitting with NBR seal

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Forged brass fittings
  • Complies with NFE 29573 standard
  • 41 mm between jaws

Construction:

  • Die-cast brass body
  • Clamp width: 41 mm
  • Dimensions: For all models, 41 mm between jaws
  • Connection: Plug
  • Material: Brass

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Directive 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Manufactured in accordance with NFE 29573
  • Cylindrical BSP tapping and threading in accordance with ISO 228-1

Caractéristiques techniques Quick-connect brass fitting with NBR seal

Data sheet

Reference
EXPBBL000000000
Matière
Laiton matricé
Joint
NBR
Forme
Bouchon
Entraxe
41mm
Type de raccordement
Express
Diamètre
En fonction du modèle choisi
Pression de service
10B
Température minimum
-5°C
Température maximum
60°C
Fluide admissible
Air comprimé - Eau
Normes et certifications
ISO 9001 WCS - NFE 29573
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598780002507

Download documentation

FT 2280

Fiche technique Raccord express laiton dit tête de chat 2280

Download (747.38KB)

Accessoires et équipements (vendus séparément)
