Straight female polypropylene fitting with external compression ø16 x 1/2"

Raccords polypropylène pour PEHD

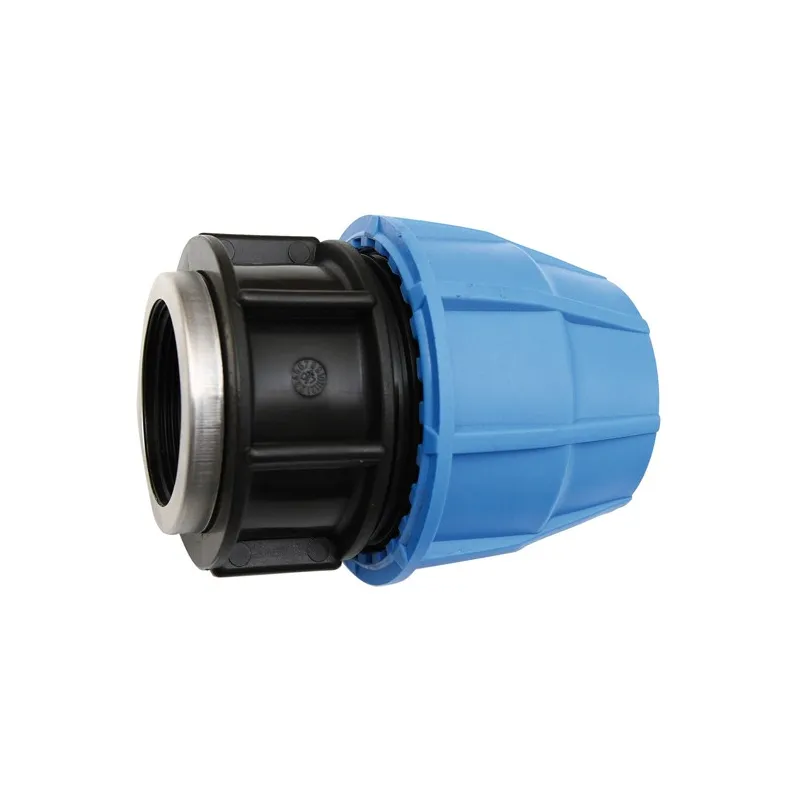

Raccord polypropylène droit femelle à serrage extérieur
search
  • Raccord polypropylène droit femelle à serrage extérieur
  • NOMENCLATURE série 1000
  • Raccord droit femelle Ref.1003
  • INSTRUCTIONS DE MONTAGE

Photos non contractuelles

Straight female polypropylene fitting with external compression for high-density polyethylene pipe

Application:

  • Water distribution and supply networks
  • NBR lip seal
  • Pipe installation without removing the fitting
  • Compatible with HDPE pipe (PE63-80-100)

Available in: Straight female fittings from DN 1/2" (D.16) to DN 2" (D.63)

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : KIWANormes et certifications : ISO 9001 SGSNormes et certifications : DVGWNormes et certifications : WaterMarkType de raccordement : Á visser BSP (pas du gaz)1
ø16 x 1/2"
Are you an individual?
Are you a professional?

Log in to find out your discount.

€2.22 Tax included

1.85 € tax excl.

Unité de vente : Pièce
MAGRFP000016015
Ø tube x à visser: Ø16 x 1/2"
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Straight female polypropylene fitting with external compression

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Polypropylene external compression fittings
  • NBR lip seal
  • Pipe installation without removing the fitting
  • Compatible with PE-HD pipe (PE63-80-100)

Construction:

  • Fitting, end cap, and retaining ring: Polypropylene
  • Clamping ring: Nylon
  • NBR lip seal
  • Size: DN 1/2" (D.16) to DN 2" (D.63)
  • Connection: Female and on polyethylene pipe
  • Material: Polypropylene

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Tests in accordance with UNI 9561 and ISO 14236
  • Tensile tests in accordance with DIN 8076-ISO 3501
  • Aging tests in accordance with DIN 8076-3 and ISO 14236
  • Directive 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 15 ACC LY 629
  • German drinking water approval DVGW No. DW-8616BT0204
  • Dutch drinking water approval KIWA BRL-K534 No. K48818/01
  • Australian drinking water approval WATERMARK LEVEL 1 AS/NZS 4129:2000 No. WMKA 01765
  • Cylindrical thread and BSP tapered thread in accordance with EN 12226-3 (ISO 7/1)

Caractéristiques techniques Straight female polypropylene fitting with external compression

Data sheet

Reference
MAGRFP000016015
Avis de l'équipe
Montage sur tube sans démontage du raccord, faire un coupe propre à 90° et bien aller jusqu'à la deuxième buté avant serrage.
Matière
Polypropylène
Joint
NBR
Forme
Adaptateur femelle
Entraxe
En fonction du modèle choisi
Type de raccordement
À compression Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
En fonction du modèle choisi
Pression de service
16B jusqu'au DN63, 10B au-delà
Température minimum
-10°C
Température maximum
+45°C
Fluide admissible
réseaux d'adduction et distribution d'eau
Normes et certifications
Certification ACS DVGW ISO 9001 SGS KIWA WaterMark
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781110218

Download documentation

FT 1001-1020

Fiche technique Raccord polypropylène à serrage extérieur 1000

Download (1.8MB)

Caractéristiques liées à la version du produit Straight female polypropylene fitting with external compression

Voici la liste des références et poids correspondants aux options séléctionnées.
MAGRFP000016015 - Straight female polypropylene fitting with external compression - Ø16 x 1/2"
Ø tube x à visser Ø16 x 1/2"
Packed weight 0,0441kg
1.85 € tax excl.
Consulter
MAGRFP000020015 - Straight female polypropylene fitting with external compression - Ø20 x 1/2"
Ø tube x à visser Ø20 x 1/2"
Packed weight 0,0441kg
2.21 € tax excl.
Consulter
MAGRFP000025020 - Straight female polypropylene fitting with external compression - Ø25 x 3/4"
Ø tube x à visser Ø25 x 3/4"
Packed weight 0,0819kg
2.41 € tax excl.
Consulter
MAGRFP000032025 - Straight female polypropylene fitting with external compression - Ø32 x 1"
Ø tube x à visser Ø32 x 1"
Packed weight 0,1218kg
2.99 € tax excl.
Consulter
MAGRFP000040032 - Straight female polypropylene fitting with external compression - Ø40 x 1"1/4
Ø tube x à visser Ø40 x 1"1/4
Packed weight 0,2331kg
5.01 € tax excl.
Consulter
MAGRFP000050040 - Straight female polypropylene fitting with external compression - Ø50 x 1"1/2
Ø tube x à visser Ø50 x 1"1/2
Packed weight 0,336kg
7.12 € tax excl.
Consulter
MAGRFP000063050 - Straight female polypropylene fitting with external compression - Ø63 x 2"
Ø tube x à visser Ø63 x 2"
Packed weight 0,6426kg
10.01 € tax excl.
Consulter
Référence - Désignation Ø tube x à visser Packed weight Prix
MAGRFP000016015 - Straight female polypropylene fitting with external compression - Ø16 x 1/2" Ø16 x 1/2" 0,0441kg 1.85 € tax excl.
MAGRFP000020015 - Straight female polypropylene fitting with external compression - Ø20 x 1/2" Ø20 x 1/2" 0,0441kg 2.21 € tax excl.
MAGRFP000025020 - Straight female polypropylene fitting with external compression - Ø25 x 3/4" Ø25 x 3/4" 0,0819kg 2.41 € tax excl.
MAGRFP000032025 - Straight female polypropylene fitting with external compression - Ø32 x 1" Ø32 x 1" 0,1218kg 2.99 € tax excl.
MAGRFP000040032 - Straight female polypropylene fitting with external compression - Ø40 x 1"1/4 Ø40 x 1"1/4 0,2331kg 5.01 € tax excl.
MAGRFP000050040 - Straight female polypropylene fitting with external compression - Ø50 x 1"1/2 Ø50 x 1"1/2 0,336kg 7.12 € tax excl.
MAGRFP000063050 - Straight female polypropylene fitting with external compression - Ø63 x 2" Ø63 x 2" 0,6426kg 10.01 € tax excl.
