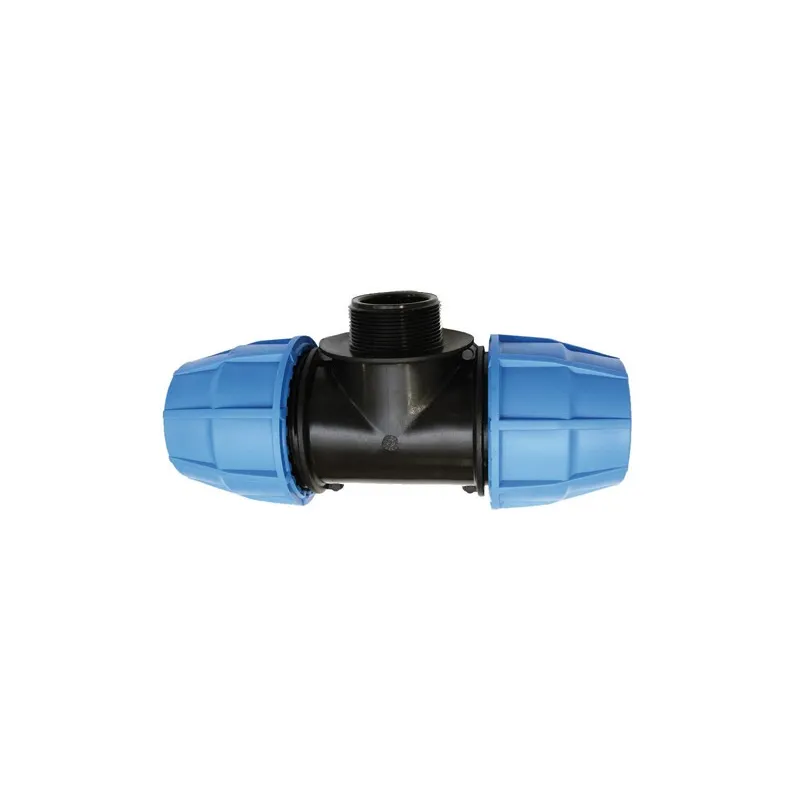

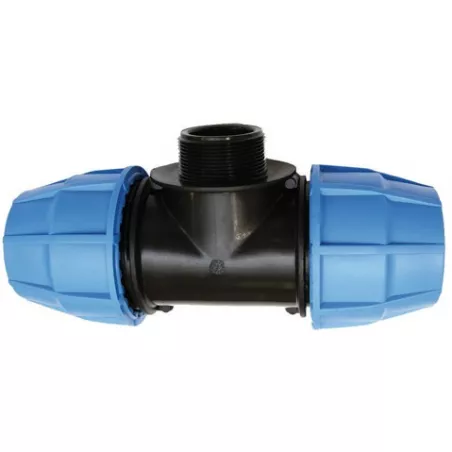

Polypropylene T-fitting with a male threaded center and external clamping ø25 x 3/4"

Raccords polypropylène pour PEHD
Raccord polypropylène en T fileté mâle au centre à serrage extérieur
search
  • Raccord polypropylène en T fileté mâle au centre à serrage extérieur
  • Raccord en T fileté mâle au centre Ref.1017
  • NOMENCLATURE série 1000
  • INSTRUCTIONS DE MONTAGE

Photos non contractuelles

Polypropylene T-fitting with a male threaded center and external clamping for high-density polyethylene pipe

Application:

  • Water distribution and supply networks
  • NBR lip seal
  • Pipe installation without removing the fitting
  • Compatible with HDPE pipe (PE63-80-100)

Available in: T-fitting with male thread in the center, Ref. 1017, from DN 1/2" (D.20) to DN 2" (D.63)

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : KIWANormes et certifications : ISO 9001 SGSNormes et certifications : DVGWNormes et certifications : WaterMarkType de raccordement : Á visser BSP (pas du gaz)1
ø25 x 3/4"
Are you an individual?
Are you a professional?

Log in to find out your discount.

€5.46 Tax included

4.55 € tax excl.

Unité de vente : Pièce
MAGTMP000025020
Ø tube x à visser: Ø25 x 3/4"
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Polypropylene T-fitting with a male threaded center and external clamping

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Polypropylene external compression fittings
  • NBR lip seal
  • Pipe installation without removing the fitting
  • Compatible with PE-HD pipe (PE63-80-100)

Construction:

  • Fitting, end cap, and retaining ring: Polypropylene
  • Clamping ring: Nylon
  • NBR lip seal
  • Size: DN 1/2"–D.20 to DN 2"–D.63
  • Connection: T-fitting with male thread in the center and on polyethylene pipe
  • Material: Polypropylene

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Tests in accordance with UNI 9561 and ISO 14236
  • Tensile tests in accordance with DIN 8076-ISO 3501
  • Aging tests in accordance with DIN 8076-3 and ISO 14236
  • Directive 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 15 ACC LY 629
  • German drinking water approval DVGW No. DW-8616BT0204
  • Dutch drinking water approval KIWA BRL-K534 No. K48818/01
  • Australian drinking water approval WATERMARK LEVEL 1 AS/NZS 4129:2000 No. WMKA 01765
  • Cylindrical thread and BSP tapered thread in accordance with EN 12226-3 (ISO 7/1)

Caractéristiques techniques Polypropylene T-fitting with a male threaded center and external clamping

Data sheet

Reference
MAGTMP000025020
Avis de l'équipe
Montage sur tube sans démontage du raccord, faire un coupe propre à 90° et bien aller jusqu'à la deuxième buté avant serrage.
Matière
Polypropylène
Joint
NBR
Forme
Adaptateur mâle Té
Entraxe
En fonction du modèle choisi
Type de raccordement
À compression Á visser BSP (pas du gaz)
Raccordement
FMF (femelle - mâle - femelle) Mâle
Diamètre
En fonction du modèle choisi
Pression de service
16B jusqu'au DN63, 10B au-delà
Température minimum
-10°C
Température maximum
+45°C
Fluide admissible
réseaux d'adduction et distribution d'eau
Normes et certifications
Certification ACS DVGW ISO 9001 SGS KIWA WaterMark
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781110997

Download documentation

FT 1001-1020

Fiche technique Raccord polypropylène à serrage extérieur 1000

Download (1.8MB)

Caractéristiques liées à la version du produit Polypropylene T-fitting with a male threaded center and external clamping

Voici la liste des références et poids correspondants aux options séléctionnées.
