90° Elbow Polypropylene Fitting with External Clamp 16 ø

Raccords polypropylène pour PEHD
Raccord polypropylène manchon coudé 90° à serrage extérieur
search
  • Raccord polypropylène manchon coudé 90° à serrage extérieur
  • Manchon coudé 90° Ref.1012
  • NOMENCLATURE série 1000
  • INSTRUCTIONS DE MONTAGE

Photos non contractuelles

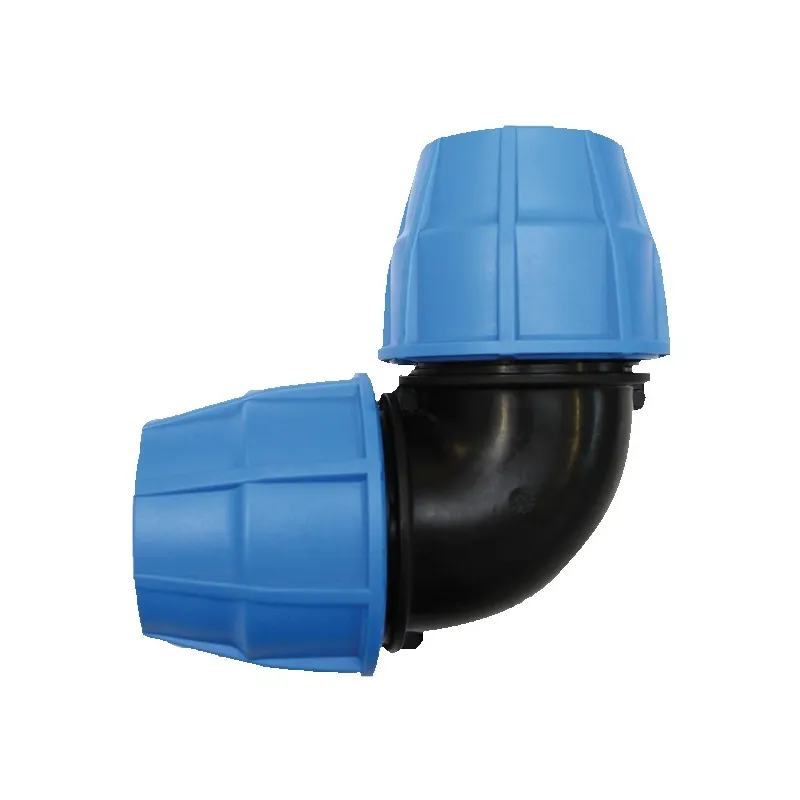

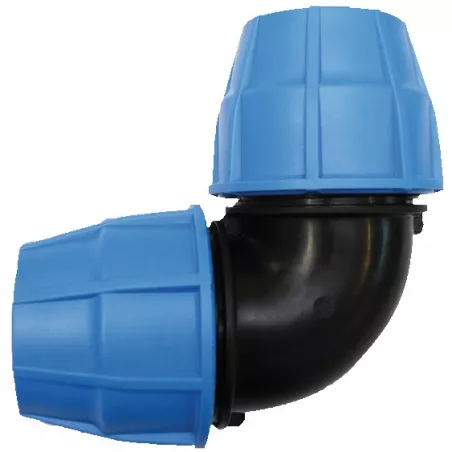

90° elbow fitting with external clamping for high-density polyethylene pipe

Application:

  • Water distribution and supply networks
  • NBR lip seal
  • Pipe installation without removing the fitting
  • Compatible with HDPE pipe (PE63-80-100)

Available as: 90° elbow sleeve from DN 16 to DN 75

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : KIWANormes et certifications : ISO 9001 SGSNormes et certifications : DVGWNormes et certifications : WaterMark1
16 ø
Are you an individual?
Are you a professional?

Log in to find out your discount.

€3.00 Tax included

2.5 € tax excl.

Unité de vente : Pièce
MAGC9P000000016
Tube diameter: 16 Ø
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 90° Elbow Polypropylene Fitting with External Clamp

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Polypropylene external compression fittings
  • NBR lip seal
  • Pipe installation without removing the fitting
  • Compatible with PE-HD pipe (PE63-80-100)

Construction:

  • Fitting, end cap, and retaining ring: Polypropylene
  • Clamping ring: Nylon
  • NBR lip seal
  • Size: DN 16 to DN 75
  • Connection: Elbow fitting on polyethylene pipe
  • Material: Polypropylene

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Tests in accordance with UNI 9561 and ISO 14236
  • Tensile tests in accordance with DIN 8076-ISO 3501
  • Aging tests in accordance with DIN 8076-3 and ISO 14236
  • Directive 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 15 ACC LY 629
  • German drinking water approval DVGW No. DW-8616BT0204
  • Dutch drinking water approval KIWA BRL-K534 No. K48818/01
  • Australian drinking water approval WATERMARK LEVEL 1 AS/NZS 4129:2000 No. WMKA 01765
  • Cylindrical thread and BSP tapered thread in accordance with EN 12226-3 (ISO 7/1)

Caractéristiques techniques 90° Elbow Polypropylene Fitting with External Clamp

Data sheet

Reference
MAGC9P000000016
Avis de l'équipe
Montage sur tube sans démontage du raccord, faire un coupe propre à 90° et bien aller jusqu'à la deuxième buté avant serrage.
Matière
Polypropylène
Joint
NBR
Forme
Coude 90°
Entraxe
En fonction du modèle choisi
Type de raccordement
À compression
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
16B jusqu'au DN63, 10B au-delà
Température minimum
-10°C
Température maximum
+45°C
Fluide admissible
réseaux d'adduction et distribution d'eau
Normes et certifications
Certification ACS DVGW ISO 9001 SGS KIWA WaterMark
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781110683

Download documentation

FT 1001-1020

Fiche technique Raccord polypropylène à serrage extérieur 1000

Download (1.8MB)

Caractéristiques liées à la version du produit 90° Elbow Polypropylene Fitting with External Clamp

Voici la liste des références et poids correspondants aux options séléctionnées.
MAGC9P000000016 - 90° Elbow Polypropylene Fitting with External Clamp - 16 Ø
Tube diameter 16 Ø
Packed weight 0,0777kg
2.5 € tax excl.
Consulter
MAGC9P000000020 - 90° Elbow Polypropylene Fitting with External Clamp - 20 Ø
Tube diameter 20 Ø
Packed weight 0,0777kg
3.19 € tax excl.
Consulter
MAGC9P000000025 - 90° Elbow Polypropylene Fitting with External Clamp - 25 Ø
Tube diameter 25 Ø
Packed weight 0,1323kg
3.9 € tax excl.
Consulter
MAGC9P000000032 - 90° Elbow Polypropylene Fitting with External Clamp - 32 Ø
Tube diameter 32 Ø
Packed weight 0,2079kg
4.88 € tax excl.
Consulter
MAGC9P000000040 - 90° Elbow Polypropylene Fitting with External Clamp - 40 Ø
Tube diameter 40 Ø
Packed weight 0,4242kg
8.26 € tax excl.
Consulter
MAGC9P000000050 - 90° Elbow Polypropylene Fitting with External Clamp - 50 Ø
Tube diameter 50 Ø
Packed weight 0,5775kg
11.6 € tax excl.
Consulter
MAGC9P000000063 - 90° Elbow Polypropylene Fitting with External Clamp - 63 Ø
Tube diameter 63 Ø
Packed weight 1,1655kg
13.98 € tax excl.
Consulter
MAGC9P000000075 - 90° Elbow Polypropylene Fitting with External Clamp - 75 Ø
Tube diameter 75 Ø
Packed weight 1,575kg
27.04 € tax excl.
Consulter
Référence - Désignation Tube diameter Packed weight Prix
MAGC9P000000016 - 90° Elbow Polypropylene Fitting with External Clamp - 16 Ø 16 Ø 0,0777kg 2.5 € tax excl.
MAGC9P000000020 - 90° Elbow Polypropylene Fitting with External Clamp - 20 Ø 20 Ø 0,0777kg 3.19 € tax excl.
MAGC9P000000025 - 90° Elbow Polypropylene Fitting with External Clamp - 25 Ø 25 Ø 0,1323kg 3.9 € tax excl.
MAGC9P000000032 - 90° Elbow Polypropylene Fitting with External Clamp - 32 Ø 32 Ø 0,2079kg 4.88 € tax excl.
MAGC9P000000040 - 90° Elbow Polypropylene Fitting with External Clamp - 40 Ø 40 Ø 0,4242kg 8.26 € tax excl.
MAGC9P000000050 - 90° Elbow Polypropylene Fitting with External Clamp - 50 Ø 50 Ø 0,5775kg 11.6 € tax excl.
MAGC9P000000063 - 90° Elbow Polypropylene Fitting with External Clamp - 63 Ø 63 Ø 1,1655kg 13.98 € tax excl.
MAGC9P000000075 - 90° Elbow Polypropylene Fitting with External Clamp - 75 Ø 75 Ø 1,575kg 27.04 € tax excl.
