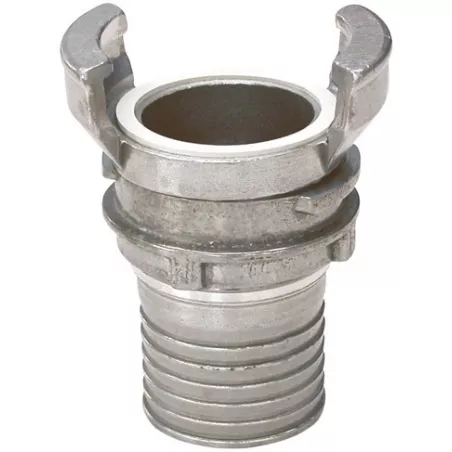

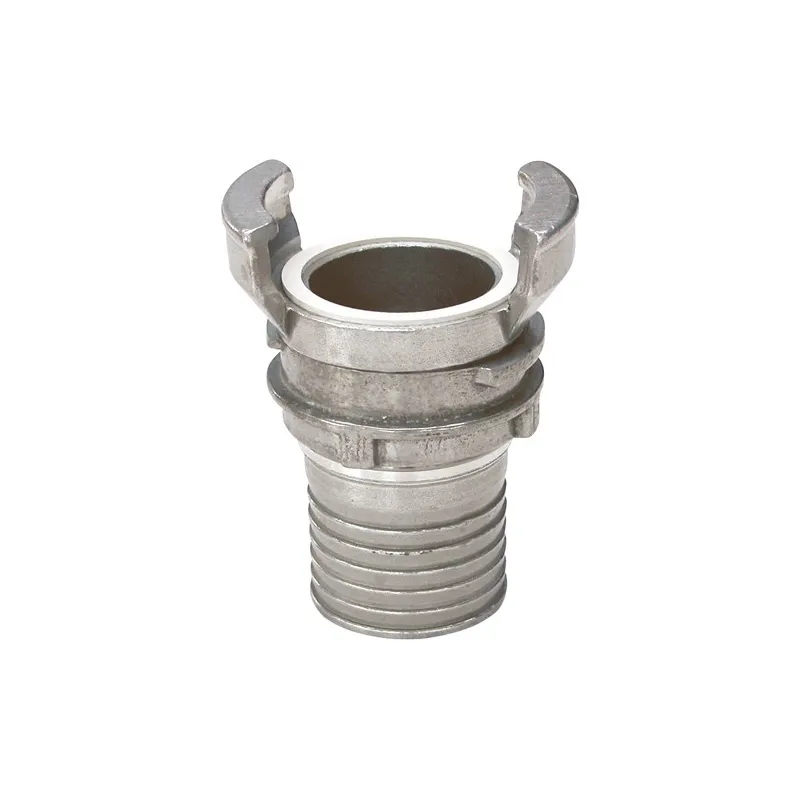

Symmetrical aluminum fire hose coupling with a BSP lock-ring socket dn 20 - ø 25

Raccords symétriques aluminium
Raccord symétrique aluminium à douille annelé à verrou BSP
search
  • Raccord symétrique aluminium à douille annelé à verrou BSP
  • Demi-raccord symétrique à douille annelée à verrou Ref.2410
  • NOMENCLATURE 2410-2417
  • DIMENSIONS ( en mm ) sauf bouchon 2410-2417

Photos non contractuelles

Symmetrical aluminum BSP locknut fitting with a flanged socket

Applications:

  • Irrigation, fire protection, hydrocarbons, compatible fluids
  • Minimum and maximum permissible temperature Ts: -10°C to +80°C
  • Maximum allowable pressure Ps: 16 bar

Available in: DN 20–25 to DN 150–152

Plus de détails
1
dn 20 - ø 25
Are you an individual?
Are you a professional?

Log in to find out your discount.

€7.26 Tax included

6.05 € tax excl.

Unité de vente : Pièce
24100AAV25CA020
Diamètre - Douille: DN 20 - Ø 25
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Symmetrical aluminum fire hose coupling with a BSP lock-ring socket

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Aluminum fittings
  • White NBR gasket (only on lock-type fittings)
  • Complies with NF-E 29572 standard

Construction:

  • Aluminum body
  • White NBR seal
  • Zinc-plated steel retaining ring
  • Dimensions: DN 20-25 to DN 150-152
  • Connection: Symmetrical with lock-ring socket
  • Material: Aluminum

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with NF-E 29572
  • BSP tapping and threading in accordance with NF EN ISO 228-1

Caractéristiques techniques Symmetrical aluminum fire hose coupling with a BSP lock-ring socket

Data sheet

Reference
24100AAV25CA020
Matière
Aluminium
Joint
NBR blanc
Forme
Adaptateur cannelé
Entraxe
En fonction du modèle choisi
Type de raccordement
Symétrique
Raccordement
Cannelé
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-10°C
Température maximum
80°C
Fluide admissible
Arrosage et irrigation Fluides courants compatibles Hydrocarbures Réseaux incendie
Normes et certifications
NF-E 29572
Équipements
Verrou
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781144961

Download documentation

FT 2410-2417

Fiche technique raccords symétriques guillemin aluminium

Download (939.08KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Symmetrical aluminum fire hose coupling with a BSP lock-ring socket

Voici la liste des références et poids correspondants aux options séléctionnées.
24100AAV25CA020 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 20 - Ø 25
Diamètre - Douille DN 20 - Ø 25
Packed weight 0,063kg
6.05 € tax excl.
Consulter
24100AAV30CA025 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 25 - Ø 30
Diamètre - Douille DN 25 - Ø 30
Packed weight 0,084kg
6.05 € tax excl.
Consulter
24100AAV35CA032 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 32 - Ø 35
Diamètre - Douille DN 32 - Ø 35
Packed weight 0,0945kg
6.89 € tax excl.
Consulter
24100AAV40CA040 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 40 - Ø 40
Diamètre - Douille DN 40 - Ø 40
Packed weight 0,189kg
9.04 € tax excl.
Consulter
24100AAV45CA040 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 40 - Ø 45
Diamètre - Douille DN 40 - Ø 45
Packed weight 0,189kg
9.04 € tax excl.
Consulter
24100AAV55CA050 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 50 - Ø 55
Diamètre - Douille DN 50 - Ø 55
Packed weight 0,336kg
11.41 € tax excl.
Consulter
24100AAV70CA065 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 65 - Ø 70
Diamètre - Douille DN 65 - Ø 70
Packed weight 0,4095kg
14.37 € tax excl.
Consulter
24100AAV90CA080 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 80 - Ø 90
Diamètre - Douille DN 80 - Ø 90
Packed weight 0,63kg
21.87 € tax excl.
Consulter
24100AAV10CA100 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 100 - Ø 110
Diamètre - Douille DN 100 - Ø 110
Packed weight 1,1025kg
34.71 € tax excl.
Consulter
24100AAV05CA100 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 100 - Ø 105
Diamètre - Douille DN 100 - Ø 105
Packed weight 1,0605kg
34.71 € tax excl.
Consulter
24100AAV52CA150 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 150 - Ø 152
Diamètre - Douille DN 150 - Ø 152
Packed weight 2,625kg
86.58 € tax excl.
Consulter
Référence - Désignation Diamètre - Douille Packed weight Prix
24100AAV25CA020 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 20 - Ø 25 DN 20 - Ø 25 0,063kg 6.05 € tax excl.
24100AAV30CA025 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 25 - Ø 30 DN 25 - Ø 30 0,084kg 6.05 € tax excl.
24100AAV35CA032 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 32 - Ø 35 DN 32 - Ø 35 0,0945kg 6.89 € tax excl.
24100AAV40CA040 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 40 - Ø 40 DN 40 - Ø 40 0,189kg 9.04 € tax excl.
24100AAV45CA040 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 40 - Ø 45 DN 40 - Ø 45 0,189kg 9.04 € tax excl.
24100AAV55CA050 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 50 - Ø 55 DN 50 - Ø 55 0,336kg 11.41 € tax excl.
24100AAV70CA065 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 65 - Ø 70 DN 65 - Ø 70 0,4095kg 14.37 € tax excl.
24100AAV90CA080 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 80 - Ø 90 DN 80 - Ø 90 0,63kg 21.87 € tax excl.
24100AAV10CA100 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 100 - Ø 110 DN 100 - Ø 110 1,1025kg 34.71 € tax excl.
24100AAV05CA100 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 100 - Ø 105 DN 100 - Ø 105 1,0605kg 34.71 € tax excl.
24100AAV52CA150 - Symmetrical aluminum fire hose coupling with a BSP lock-ring socket - DN 150 - Ø 152 DN 150 - Ø 152 2,625kg 86.58 € tax excl.
