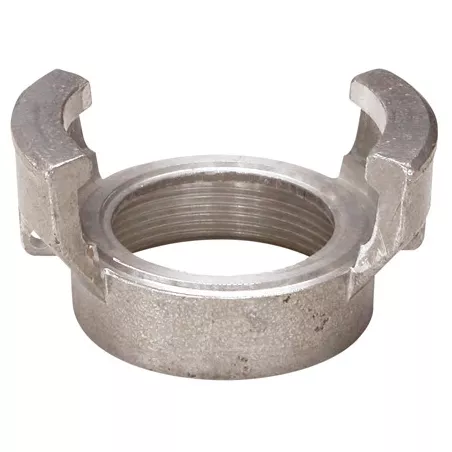

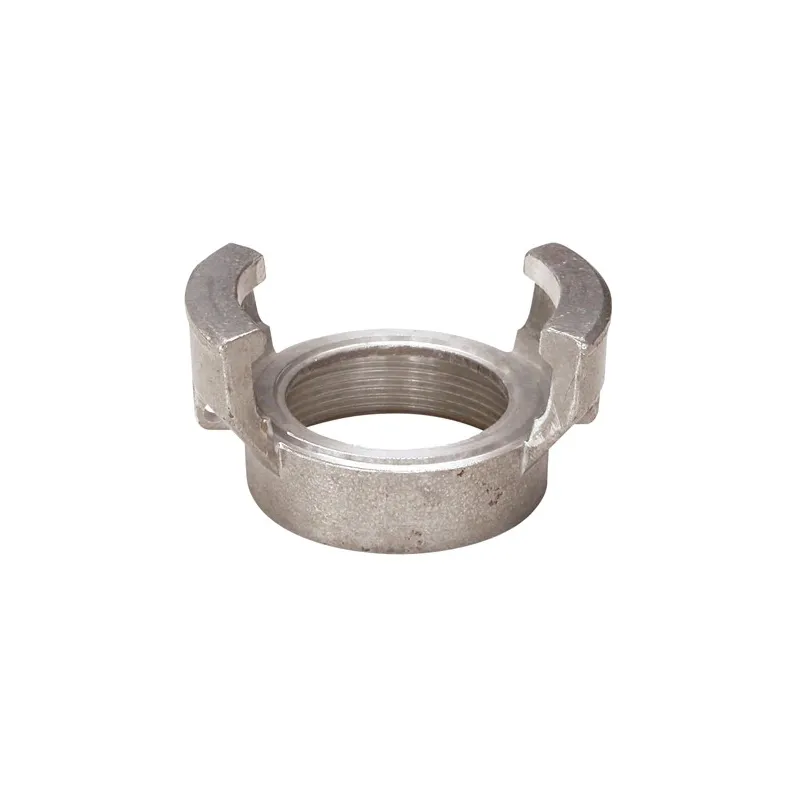

Symmetrical aluminum female fire hose coupling without a lock, BSP dn 20

Raccords symétriques aluminium
Raccord symétrique aluminium femelle sans verrou BSP
search
  • Raccord symétrique aluminium femelle sans verrou BSP
  • Demi-raccord symétrique femelle BSP sans verrou Ref.2416
  • NOMENCLATURE 2410-2417
  • DIMENSIONS ( en mm ) 2410-2417

Photos non contractuelles

BSP female aluminum coupling without lock

Applications:

  • Irrigation, fire protection, hydrocarbons, compatible fluids
  • Minimum and maximum permissible temperature Ts: -10°C to +80°C
  • Maximum allowable pressure Ps: 16 bar

Available in: DN 20 to DN 100

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
dn 20
Are you an individual?
Are you a professional?

Log in to find out your discount.

€4.40 Tax included

3.67 € tax excl.

Unité de vente : Pièce
24160ASV00BF020
Diameter DN: DN 20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Symmetrical aluminum female fire hose coupling without a lock, BSP

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Aluminum fittings
  • White NBR gasket (only on lock-type fittings)
  • Complies with NF-E 29572 standard

Construction:

  • Aluminum body
  • White NBR seal
  • Zinc-plated steel retaining ring
  • Sizes: DN 20 to DN 100
  • Connection: Symmetrical female BSP without lock
  • Material: Aluminum

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with NF-E 29572
  • BSP tapping and threading in accordance with standard NF EN ISO 228-1

Caractéristiques techniques Symmetrical aluminum female fire hose coupling without a lock, BSP

Data sheet

Reference
24160ASV00BF020
Matière
Aluminium
Joint
NBR blanc
Forme
Adaptateur femelle
Entraxe
En fonction du modèle choisi
Type de raccordement
Symétrique Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-10°C
Température maximum
80°C
Fluide admissible
Arrosage et irrigation Fluides courants compatibles Hydrocarbures Réseaux incendie
Normes et certifications
NF-E 29572
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781145531

Download documentation

FT 2410-2417

Fiche technique raccords symétriques guillemin aluminium

Download (939.08KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Symmetrical aluminum female fire hose coupling without a lock, BSP

Voici la liste des références et poids correspondants aux options séléctionnées.
24160ASV00BF020 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 20
Diameter DN DN 20
Packed weight 0,021kg
3.67 € tax excl.
Consulter
24160ASV00BF025 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 25
Diameter DN DN 25
Packed weight 0,0315kg
3.97 € tax excl.
Consulter
24160ASV00BF032 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 32
Diameter DN DN 32
Packed weight 0,0735kg
4.65 € tax excl.
Consulter
24160ASV00BF040 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 40
Diameter DN DN 40
Packed weight 0,0945kg
5.17 € tax excl.
Consulter
24160ASV00BF050 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 50
Diameter DN DN 50
Packed weight 0,1995kg
6.89 € tax excl.
Consulter
24160ASV00BF065 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 65
Diameter DN DN 65
Packed weight 0,273kg
10.04 € tax excl.
Consulter
24160ASV00BF080 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 80
Diameter DN DN 80
Packed weight 0,357kg
12.29 € tax excl.
Consulter
24160ASV00BF100 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 100
Diameter DN DN 100
Packed weight 0,5145kg
14.95 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
24160ASV00BF020 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 20 DN 20 0,021kg 3.67 € tax excl.
24160ASV00BF025 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 25 DN 25 0,0315kg 3.97 € tax excl.
24160ASV00BF032 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 32 DN 32 0,0735kg 4.65 € tax excl.
24160ASV00BF040 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 40 DN 40 0,0945kg 5.17 € tax excl.
24160ASV00BF050 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 50 DN 50 0,1995kg 6.89 € tax excl.
24160ASV00BF065 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 65 DN 65 0,273kg 10.04 € tax excl.
24160ASV00BF080 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 80 DN 80 0,357kg 12.29 € tax excl.
24160ASV00BF100 - Symmetrical aluminum female fire hose coupling without a lock, BSP - DN 100 DN 100 0,5145kg 14.95 € tax excl.
