Symmetrical male aluminum fire hose coupling with BSP thread dn 20

Raccords symétriques aluminium

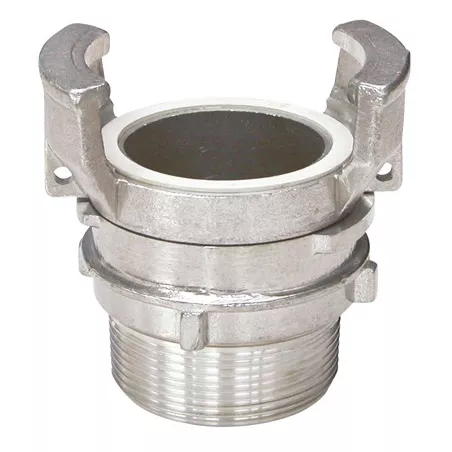

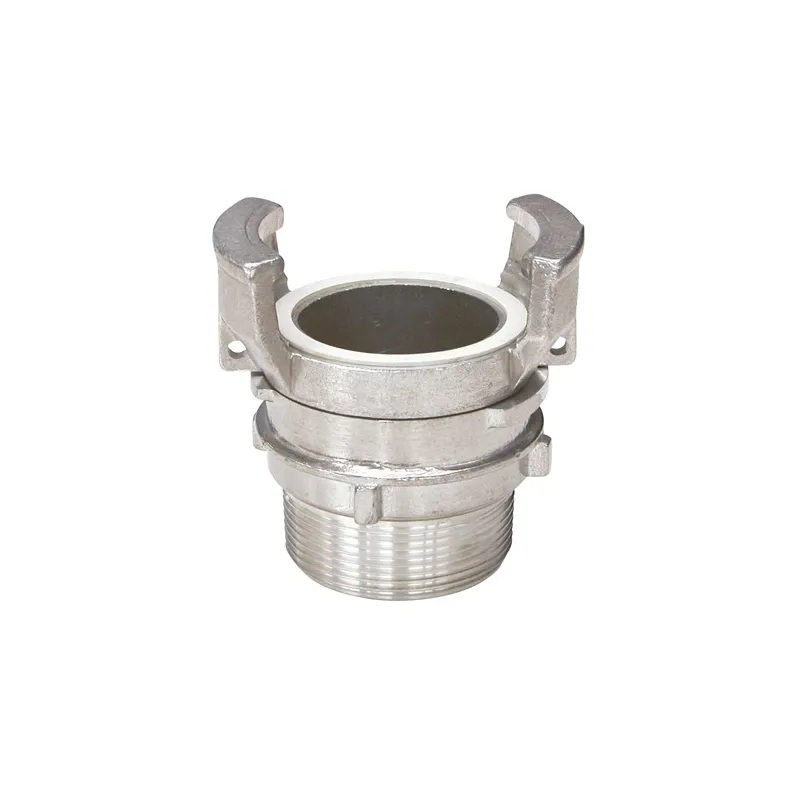

Raccord symétrique aluminium mâle à verrou BSP
search
  • Raccord symétrique aluminium mâle à verrou BSP
  • Demi-raccord symétrique mâle BSP à verrou Ref.2413
  • NOMENCLATURE 2410-2417
  • DIMENSIONS ( en mm ) 2410-2417

Photos non contractuelles

BSP male locking aluminum fitting

Applications:

  • Irrigation, fire protection, hydrocarbons, compatible fluids
  • Minimum and maximum permissible temperature Ts: -10°C to +80°C
  • Maximum allowable pressure Ps: 16 bar

Available in: DN 20 to DN 150

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
dn 20
Are you an individual?
Are you a professional?

Log in to find out your discount.

€5.58 Tax included

4.65 € tax excl.

Unité de vente : Pièce
24130AAV00BM020
Diameter DN: DN 20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Symmetrical male aluminum fire hose coupling with BSP thread

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Aluminum fittings
  • White NBR gasket (only on lock-type fittings)
  • Complies with NF-E 29572 standard

Construction:

  • Aluminum body
  • White NBR seal
  • Zinc-plated steel retaining ring
  • Sizes: DN 20 to DN 150
  • Connection: Symmetrical male BSP with lock
  • Material: Aluminum

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with NF-E 29572
  • BSP tapping and threading in accordance with standard NF EN ISO 228-1

Caractéristiques techniques Symmetrical male aluminum fire hose coupling with BSP thread

Data sheet

Reference
24130AAV00BM020
Matière
Aluminium
Joint
NBR blanc
Forme
Adaptateur mâle
Entraxe
En fonction du modèle choisi
Type de raccordement
Symétrique Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-10°C
Température maximum
80°C
Fluide admissible
Arrosage et irrigation Fluides courants compatibles Hydrocarbures Réseaux incendie
Normes et certifications
NF-E 29572
Équipements
Verrou
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781145289

Download documentation

FT 2410-2417

Fiche technique raccords symétriques guillemin aluminium

Download (939.08KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Symmetrical male aluminum fire hose coupling with BSP thread

Voici la liste des références et poids correspondants aux options séléctionnées.
24130AAV00BM020 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 20
Diameter DN DN 20
Packed weight 0,063kg
4.65 € tax excl.
Consulter
24130AAV00BM025 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 25
Diameter DN DN 25
Packed weight 0,084kg
4.94 € tax excl.
Consulter
24130AAV00BM032 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 32
Diameter DN DN 32
Packed weight 0,1155kg
6.63 € tax excl.
Consulter
24130AAV00BM040 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 40
Diameter DN DN 40
Packed weight 0,168kg
7.48 € tax excl.
Consulter
24130AAV00BM050 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 50
Diameter DN DN 50
Packed weight 0,315kg
9.65 € tax excl.
Consulter
24130AAV00BM065 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 65
Diameter DN DN 65
Packed weight 0,3675kg
12.77 € tax excl.
Consulter
24130AAV00BM080 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 80
Diameter DN DN 80
Packed weight 0,651kg
19.14 € tax excl.
Consulter
24130AAV00BM100 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 100
Diameter DN DN 100
Packed weight 0,861kg
28.05 € tax excl.
Consulter
24130AAV00BM150 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 150
Diameter DN DN 150
Packed weight 2,205kg
172.19 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
24130AAV00BM020 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 20 DN 20 0,063kg 4.65 € tax excl.
24130AAV00BM025 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 25 DN 25 0,084kg 4.94 € tax excl.
24130AAV00BM032 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 32 DN 32 0,1155kg 6.63 € tax excl.
24130AAV00BM040 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 40 DN 40 0,168kg 7.48 € tax excl.
24130AAV00BM050 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 50 DN 50 0,315kg 9.65 € tax excl.
24130AAV00BM065 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 65 DN 65 0,3675kg 12.77 € tax excl.
24130AAV00BM080 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 80 DN 80 0,651kg 19.14 € tax excl.
24130AAV00BM100 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 100 DN 100 0,861kg 28.05 € tax excl.
24130AAV00BM150 - Symmetrical male aluminum fire hose coupling with BSP thread - DN 150 DN 150 2,205kg 172.19 € tax excl.
