Symmetrical stainless steel fire hose coupling with locking cap dn 20

Raccords symétriques inox

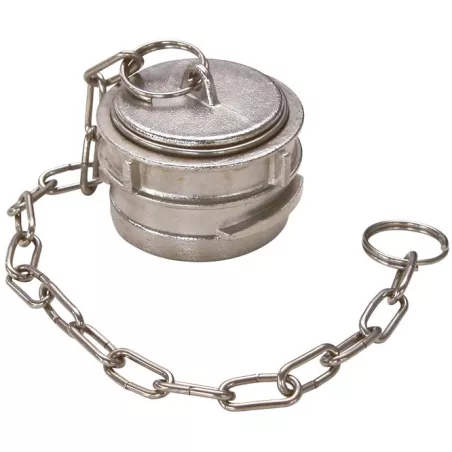

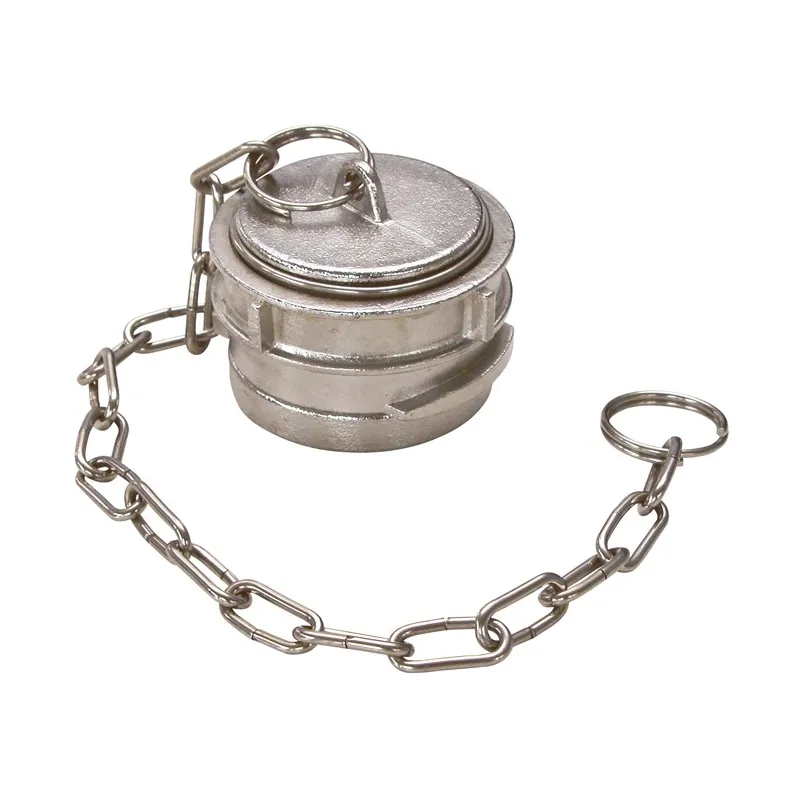

Raccord symétrique acier inox bouchon à verrou
search
  • Raccord symétrique acier inox bouchon à verrou
  • Bouchon symétrique à verrou avec chaînette Ref.2427
  • NOMENCLATURE 2420-2429

Photos non contractuelles

Symmetrical stainless steel fitting, ASTM A351 CF8M, with locking cap

Applications:

  • Irrigation, fire protection, hydrocarbons, compatible fluids
  • Minimum and maximum permissible temperature Ts: -10°C to +180°C
  • Maximum allowable pressure Ps: 16 bar

Available in: DN 20 to DN 100

Option: Upon request: white EPDM or white NBR seals

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
dn 20
Are you an individual?
Are you a professional?

Log in to find out your discount.

€23.80 Tax included

19.83 € tax excl.

Unité de vente : Pièce
24270IAV0000020
Diameter DN: DN 20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Symmetrical stainless steel fire hose coupling with locking cap

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Stainless steel fittings
  • FKM seal (only on lock-type fittings)
  • Complies with NF-E 29572 standard

Construction:

  • Body: ASTM A351 CF8M stainless steel
  • FKM seal
  • Retaining ring: Stainless steel ASTM A182 F304
  • Sizes: DN 20 to DN 100
  • Connection: plug with lock
  • Material: Stainless steel

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with NF-E 29572
  • Cylindrical BSP tapping and threading in accordance with standard NF EN ISO 228-1

Caractéristiques techniques Symmetrical stainless steel fire hose coupling with locking cap

Data sheet

Reference
24270IAV0000020
Matière
Inox ASTM A351 CF8M
Joint
FKM
Forme
Bouchon
Entraxe
En fonction du modèle choisi
Type de raccordement
Symétrique Á visser BSP (pas du gaz)
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-10°C
Température maximum
180°C
Fluide admissible
Arrosage et irrigation Fluides courants compatibles Hydrocarbures Réseaux incendie
Normes et certifications
NF-E 29572
Équipements
Verrou
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781146354

Download documentation

FT 2420-2429

Fiche technique raccords symétriques guillemin inox

Download (920.59KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Symmetrical stainless steel fire hose coupling with locking cap

Voici la liste des références et poids correspondants aux options séléctionnées.
24270IAV0000020 - Symmetrical stainless steel fire hose coupling with locking cap - DN 20
Diameter DN DN 20
Packed weight 0,1785kg
19.83 € tax excl.
Consulter
24270IAV0000025 - Symmetrical stainless steel fire hose coupling with locking cap - DN 25
Diameter DN DN 25
Packed weight 0,2205kg
20.61 € tax excl.
Consulter
24270IAV0000032 - Symmetrical stainless steel fire hose coupling with locking cap - DN 32
Diameter DN DN 32
Packed weight 0,2415kg
23.08 € tax excl.
Consulter
24270IAV0000040 - Symmetrical stainless steel fire hose coupling with locking cap - DN 40
Diameter DN DN 40
Packed weight 0,336kg
26.29 € tax excl.
Consulter
24270IAV0000050 - Symmetrical stainless steel fire hose coupling with locking cap - DN 50
Diameter DN DN 50
Packed weight 0,5775kg
40.3 € tax excl.
Consulter
24270IAV0000065 - Symmetrical stainless steel fire hose coupling with locking cap - DN 65
Diameter DN DN 65
Packed weight 0,4515kg
52.81 € tax excl.
Consulter
24270IAV0000080 - Symmetrical stainless steel fire hose coupling with locking cap - DN 80
Diameter DN DN 80
Packed weight 1,1025kg
81.28 € tax excl.
Consulter
24270IAV0000100 - Symmetrical stainless steel fire hose coupling with locking cap - DN 100
Diameter DN DN 100
Packed weight 1,8375kg
123.18 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
24270IAV0000020 - Symmetrical stainless steel fire hose coupling with locking cap - DN 20 DN 20 0,1785kg 19.83 € tax excl.
24270IAV0000025 - Symmetrical stainless steel fire hose coupling with locking cap - DN 25 DN 25 0,2205kg 20.61 € tax excl.
24270IAV0000032 - Symmetrical stainless steel fire hose coupling with locking cap - DN 32 DN 32 0,2415kg 23.08 € tax excl.
24270IAV0000040 - Symmetrical stainless steel fire hose coupling with locking cap - DN 40 DN 40 0,336kg 26.29 € tax excl.
24270IAV0000050 - Symmetrical stainless steel fire hose coupling with locking cap - DN 50 DN 50 0,5775kg 40.3 € tax excl.
24270IAV0000065 - Symmetrical stainless steel fire hose coupling with locking cap - DN 65 DN 65 0,4515kg 52.81 € tax excl.
24270IAV0000080 - Symmetrical stainless steel fire hose coupling with locking cap - DN 80 DN 80 1,1025kg 81.28 € tax excl.
24270IAV0000100 - Symmetrical stainless steel fire hose coupling with locking cap - DN 100 DN 100 1,8375kg 123.18 € tax excl.
