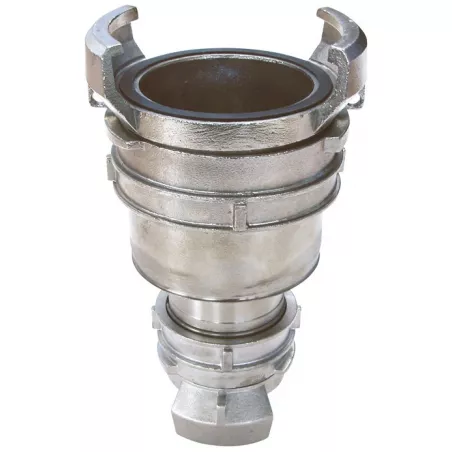

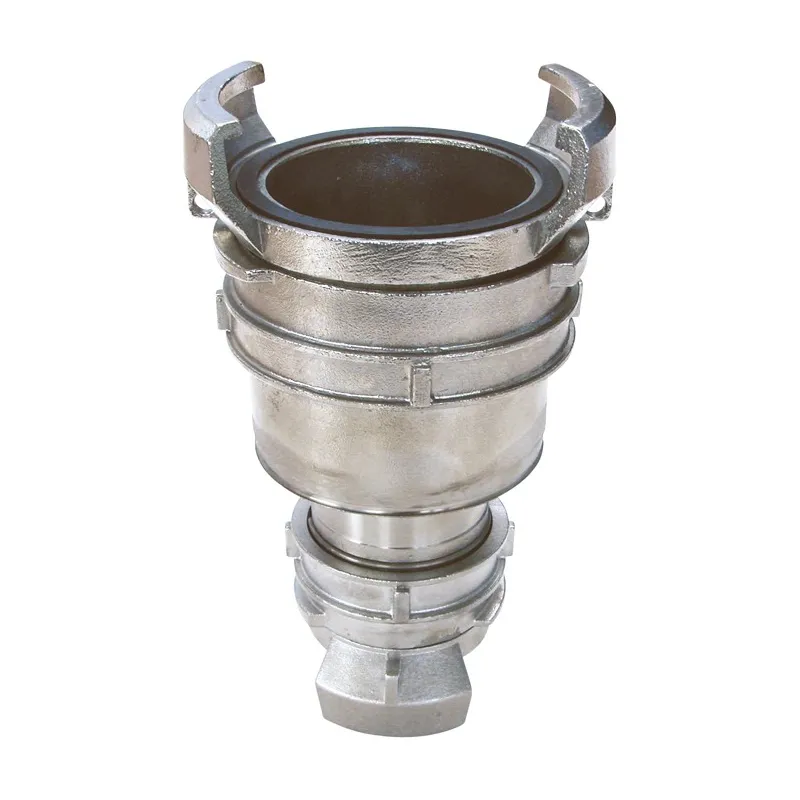

Symmetrical stainless steel fire hose coupling with locking reduction 50 x 40

Raccords symétriques inox
Raccord symétrique acier inox réduction à verrou
search
  • Raccord symétrique acier inox réduction à verrou
  • Jonction symétrique à verrou Ref.2422
  • NOMENCLATURE 2420-2429
  • Tous les modèles ( sauf bouchon ) 2420-2429

Photos non contractuelles

ASTM A351 CF8M stainless steel symmetrical locking coupling

Applications:

  • Irrigation, fire protection, hydrocarbons, compatible fluids
  • Minimum and maximum permissible temperature Ts: -10°C to +180°C
  • Maximum allowable pressure Ps: 16 bar

Available in: DN 50-40 to DN 100-80

Option: Upon request: white EPDM or white NBR seals

Plus de détails
1
50 x 40
Are you an individual?
Are you a professional?

Log in to find out your discount.

€118.99 Tax included

99.16 € tax excl.

Unité de vente : Pièce
24220IAV0050040
Diamètre Ø: 50 x 40
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Symmetrical stainless steel fire hose coupling with locking reduction

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Stainless steel fittings
  • FKM seal (only on lock-type fittings)
  • Complies with NF-E 29572 standard

Construction:

  • Body: ASTM A351 CF8M stainless steel
  • FKM seal
  • Retaining ring: Stainless steel ASTM A182 F304
  • Dimensions: DN 50-40 to DN 100-80
  • Connection: Symmetrical locking joint
  • Material: Stainless steel

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with NF-E 29572
  • Cylindrical BSP tapping and threading in accordance with standard NF EN ISO 228-1

Caractéristiques techniques Symmetrical stainless steel fire hose coupling with locking reduction

Data sheet

Reference
24220IAV0050040
Matière
Inox ASTM A351 CF8M
Joint
FKM
Forme
Réduction
Entraxe
En fonction du modèle choisi
Type de raccordement
Symétrique
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-10°C
Température maximum
180°C
Fluide admissible
Arrosage et irrigation Fluides courants compatibles Hydrocarbures Réseaux incendie
Normes et certifications
NF-E 29572
Équipements
Verrou
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781145913

Download documentation

FT 2420-2429

Fiche technique raccords symétriques guillemin inox

Download (920.59KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Symmetrical stainless steel fire hose coupling with locking reduction

Voici la liste des références et poids correspondants aux options séléctionnées.
24220IAV0050040 - Symmetrical stainless steel fire hose coupling with locking reduction - 50 x 40
Diamètre Ø 50 x 40
Packed weight 1,7115kg
99.16 € tax excl.
Consulter
24220IAV0065040 - Symmetrical stainless steel fire hose coupling with locking reduction - 65 x 40
Diamètre Ø 65 x 40
Packed weight 2,142kg
141.86 € tax excl.
Consulter
24220IAV0065050 - Symmetrical stainless steel fire hose coupling with locking reduction - 65 x 50
Diamètre Ø 65 x 50
Packed weight 2,9295kg
141.86 € tax excl.
Consulter
24220IAV0080050 - Symmetrical stainless steel fire hose coupling with locking reduction - 80 x 50
Diamètre Ø 80 x 50
Packed weight 4,1475kg
272.58 € tax excl.
Consulter
24220IAV0080065 - Symmetrical stainless steel fire hose coupling with locking reduction - 80 x 65
Diamètre Ø 80 x 65
Packed weight 4,326kg
218.89 € tax excl.
Consulter
24220IAV0100040 - Symmetrical stainless steel fire hose coupling with locking reduction - 100 x 40
Diamètre Ø 100 x 40
Packed weight 4,4205kg
186.19 € tax excl.
Consulter
24220IAV0100065 - Symmetrical stainless steel fire hose coupling with locking reduction - 100 x 65
Diamètre Ø 100 x 65
Packed weight 4,368kg
343.75 € tax excl.
Consulter
24220IAV0100050 - Symmetrical stainless steel fire hose coupling with locking reduction - 100 x 50
Diamètre Ø 100 x 50
Packed weight 3,6855kg
377.03 € tax excl.
Consulter
24220IAV0100080 - Symmetrical stainless steel fire hose coupling with locking reduction - 100 x 80
Diamètre Ø 100 x 80
Packed weight 4,851kg
343.75 € tax excl.
Consulter
Référence - Désignation Diamètre Ø Packed weight Prix
24220IAV0050040 - Symmetrical stainless steel fire hose coupling with locking reduction - 50 x 40 50 x 40 1,7115kg 99.16 € tax excl.
24220IAV0065040 - Symmetrical stainless steel fire hose coupling with locking reduction - 65 x 40 65 x 40 2,142kg 141.86 € tax excl.
24220IAV0065050 - Symmetrical stainless steel fire hose coupling with locking reduction - 65 x 50 65 x 50 2,9295kg 141.86 € tax excl.
24220IAV0080050 - Symmetrical stainless steel fire hose coupling with locking reduction - 80 x 50 80 x 50 4,1475kg 272.58 € tax excl.
24220IAV0080065 - Symmetrical stainless steel fire hose coupling with locking reduction - 80 x 65 80 x 65 4,326kg 218.89 € tax excl.
24220IAV0100040 - Symmetrical stainless steel fire hose coupling with locking reduction - 100 x 40 100 x 40 4,4205kg 186.19 € tax excl.
24220IAV0100065 - Symmetrical stainless steel fire hose coupling with locking reduction - 100 x 65 100 x 65 4,368kg 343.75 € tax excl.
24220IAV0100050 - Symmetrical stainless steel fire hose coupling with locking reduction - 100 x 50 100 x 50 3,6855kg 377.03 € tax excl.
24220IAV0100080 - Symmetrical stainless steel fire hose coupling with locking reduction - 100 x 80 100 x 80 4,851kg 343.75 € tax excl.
