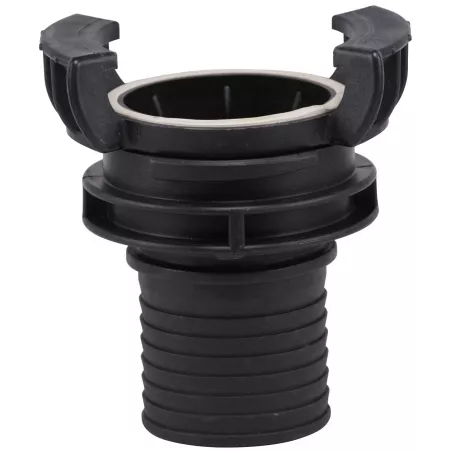

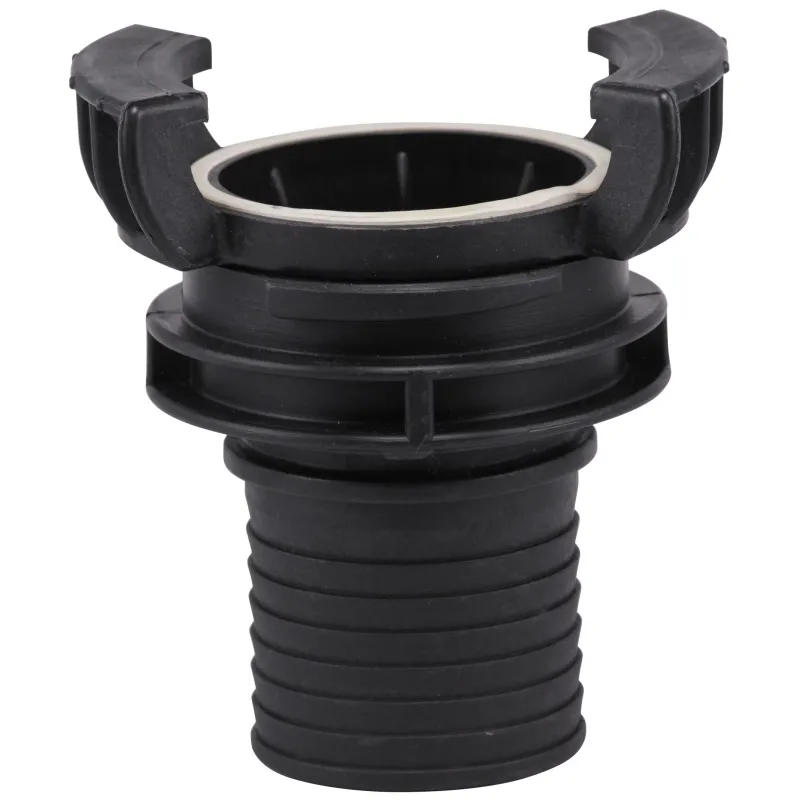

Symmetrical polypropylene fire hose coupling with a BSP lock-ring socket dn 40

Raccords symétriques polypropylène
Demi raccord symétrique polypropylène à douille annelé à verrou BSP
search
  • Demi raccord symétrique polypropylène à douille annelé à verrou BSP
  • Demi-raccord symétrique à douille annelée à verrou Ref.2430
  • NOMENCLATURE 2430-2437

Photos non contractuelles

Symmetrical polypropylene coupling with BSP lock-ring socket

Application:

  • Irrigation, compatible fluids
  • Minimum and maximum permissible temperature Ts: +0°C to +30°C
  • Maximum allowable pressure Ps: 6 bar

Available in: DN 40-40 to DN 80-76 (with flange for DN 50 and 80)

Plus de détails
Normes et certifications : ISO 9001 ACM-UKAS1
dn 40
Are you an individual?
Are you a professional?

Log in to find out your discount.

€8.98 Tax included

7.48 € tax excl.

Unité de vente : Pièce
24300PAV0000040
Diameter DN: DN 40
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Symmetrical polypropylene fire hose coupling with a BSP lock-ring socket

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Polypropylene fittings
  • White NBR gasket (only on lock-type fittings)
  • Complies with NF-E 29572 standard

Construction:

  • Polypropylene body
  • White NBR seal
  • Polypropylene stop seal
  • Dimensions: DN 40-40 to DN 80-76
  • Connection: Symmetrical with flanged socket
  • Material: Polypropylene

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with NF-E 29572
  • BSP tapping and threading in accordance with NF EN ISO 228-1

Caractéristiques techniques Symmetrical polypropylene fire hose coupling with a BSP lock-ring socket

Data sheet

Reference
24300PAV0000040
Matière
Polypropylène
Joint
NBR blanc
Forme
Adaptateur cannelé
Entraxe
En fonction du modèle choisi
Type de raccordement
Symétrique
Raccordement
Cannelé
Diamètre
En fonction du modèle choisi
Pression de service
6B
Température minimum
0°C
Température maximum
30°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
ISO 9001 ACM-UKAS NF-E 29572
Équipements
Verrou
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781185919

Download documentation

FT 2430-2437

Fiche technique Raccord symétrique polypropylène

Download (553.91KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Symmetrical polypropylene fire hose coupling with a BSP lock-ring socket

Voici la liste des références et poids correspondants aux options séléctionnées.
