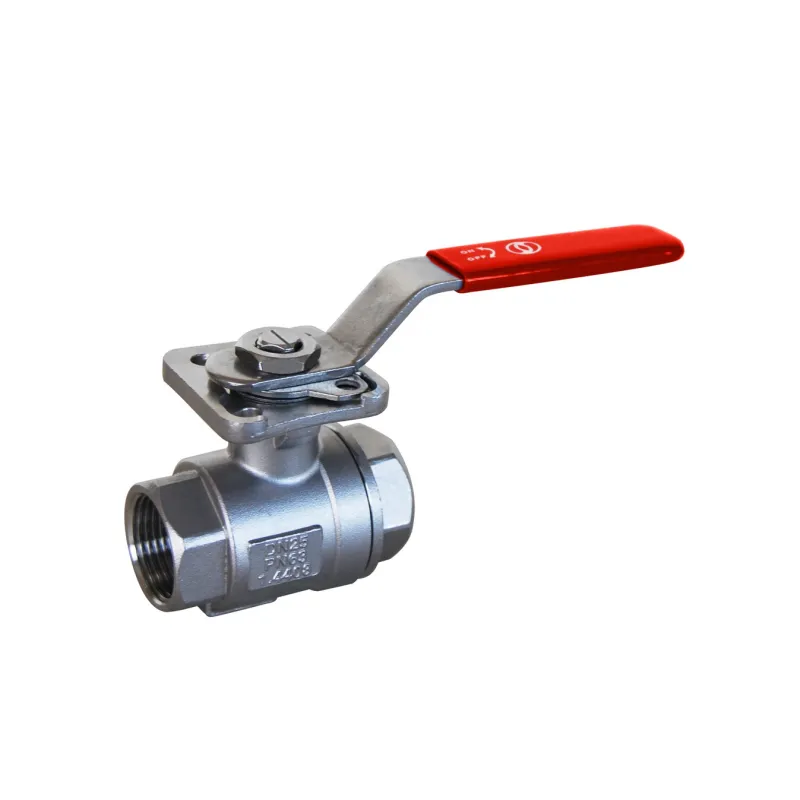

RBS 2-piece ball valve with ISO mounting pad - ACS Female-Female

2-piece ball valve with ISO 5211 mounting pad

Applications:

Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air, drinking
water. Steam: 11 bar max. Minimum and maximum
permissible temperatures Ts: -20°C to +200°C. Maximum permissible
pressure Ps: 63 bar (see curve)

CCPU 3.1 material certificate available

2-piece stainless steel ball valve with ISO 5211 mounting plate, sizes DN 1/4" to DN 3"

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ATEXNormes et certifications : TUV PED 97/23/CENormes et certifications : ISO 9001 : 2008 Bureau VéritasType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Vapeur (11B maximum)1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€76.16 Tax included

63.47 € tax excl.

Unité de vente : Pièce
73300CCD0BFF015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour RBS 2-piece ball valve with ISO flange - ACS

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 2-piece ball valve with ISO flange - ACS

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • Glass-filled PTFE seats
  • Lockable handle
  • ATEX
  • Double shaft seal: PTFE + FKM
  • 2-piece model
  • Solid ball
  • Motorizable (ISO 5211 mounting plate)

Construction:

  • Body and ball: ASTM A351 CF8M stainless steel.
  • Non-ejectable shaft: ASTM A276-316 stainless steel.
  • Seats: Glass-filled PTFE.
  • Body seal and gland: PTFE.
  • FKM O-ring.
  • Red padlockable handle: ASTM A182 F304 stainless steel.
  • ISO 5211 mounting plate.
  • Dimensions: DN 1/2" to 3"
  • Connection: Female BSP
  • Material: Stainless steel

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0035 Risk
    Category III, Module H
  • Leak testing in accordance with API 598, Table 6
  • Cylindrical BSP female threaded connection in accordance with ISO 7/1 Rp
  • ATEX Group II, Category 2, G/2D, Zone 1 & 21, Zone 2 & 22 (optional marking)
  • Sanitary Conformity Certificate A.C.S. No. 15 ACC LY 431

Nominal Ø 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2 1/2" 3"
Passage diameter 15 20 25 32 38 50 63 76
PS 63 63 63 63 63 63 63 63
Track gauge 58 65.6 78.7 90 105 124 146.2 163.7

Caractéristiques techniques RBS 2-piece ball valve with ISO flange - ACS

Data sheet

Reference
73300CCD0BFF015
Type de vanne
RBS (Robinet à tournant sphérique)
Passage
Intégral
Corps
Inox ASTM A351 CF8M
Obturateur
Sphère inox ASTM A351 CF8M
Siège
PTFE chargés Verre
Axe
Axe inéjectable Inox ASTM A276-316.
Presse-étoupe
PTFE
Platine
Platine ISO 5211
Joint
Torique FKM
Commande
Couleur rouge Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression de service
63B
Température minimum
-20°C
Température maximum
200°C
Fluide admissible
Fluides courants compatibles Vapeur (11B maximum)
Normes et certifications
ATEX Certification ACS ISO 9001 : 2008 Bureau Véritas TUV PED 97/23/CE Test d'étanchéité API 598
Normalisation
Directive 97/23/CE : CE N° 0035
Équipements
Cadenassable Platine ISO
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 733

Fiche technique robinet à tournant sphérique RBS 2 pièces à platine ISO - ACS 733

Download (1.08MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit RBS 2-piece ball valve with ISO flange - ACS

Voici la liste des références et poids correspondants aux options séléctionnées.
73300CCD0BFF015 - RBS 2-piece ball valve with ISO flange - ACS - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,42kg
63.47 € tax excl.
Consulter
73300CCD0BFF020 - RBS 2-piece ball valve with ISO flange - ACS - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,525kg
74.98 € tax excl.
Consulter
73300CCD0BFF025 - RBS 2-piece ball valve with ISO flange - ACS - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,7875kg
112.39 € tax excl.
Consulter
73300CCD0BFF032 - RBS 2-piece ball valve with ISO flange - ACS - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,26kg
156.33 € tax excl.
Consulter
73300CCD0BFF040 - RBS 2-piece ball valve with ISO flange - ACS - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,89kg
250.25 € tax excl.
Consulter
73300CCD0BFF050 - RBS 2-piece ball valve with ISO flange - ACS - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 2,94kg
346.26 € tax excl.
Consulter
73300CCD0BFF065 - RBS 2-piece ball valve with ISO flange - ACS - 2"1/2 (66/76)
Diameter (in inches) 2"1/2 (66/76)
Packed weight 6,3kg
668.95 € tax excl.
Consulter
73300CCD0BFF080 - RBS 2-piece ball valve with ISO flange - ACS - 3" (80/90)
Diameter (in inches) 3" (80/90)
Packed weight 9,45kg
807.82 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
73300CCD0BFF015 - RBS 2-piece ball valve with ISO flange - ACS - 1/2" (15/21) 1/2" (15/21) 0,42kg 63.47 € tax excl.
73300CCD0BFF020 - RBS 2-piece ball valve with ISO flange - ACS - 3/4" (20/27) 3/4" (20/27) 0,525kg 74.98 € tax excl.
73300CCD0BFF025 - RBS 2-piece ball valve with ISO flange - ACS - 1" (26/34) 1" (26/34) 0,7875kg 112.39 € tax excl.
73300CCD0BFF032 - RBS 2-piece ball valve with ISO flange - ACS - 1"1/4 (33/42) 1"1/4 (33/42) 1,26kg 156.33 € tax excl.
73300CCD0BFF040 - RBS 2-piece ball valve with ISO flange - ACS - 1"1/2 (40/49) 1"1/2 (40/49) 1,89kg 250.25 € tax excl.
73300CCD0BFF050 - RBS 2-piece ball valve with ISO flange - ACS - 2" (50/60) 2" (50/60) 2,94kg 346.26 € tax excl.
73300CCD0BFF065 - RBS 2-piece ball valve with ISO flange - ACS - 2"1/2 (66/76) 2"1/2 (66/76) 6,3kg 668.95 € tax excl.
73300CCD0BFF080 - RBS 2-piece ball valve with ISO flange - ACS - 3" (80/90) 3" (80/90) 9,45kg 807.82 € tax excl.
