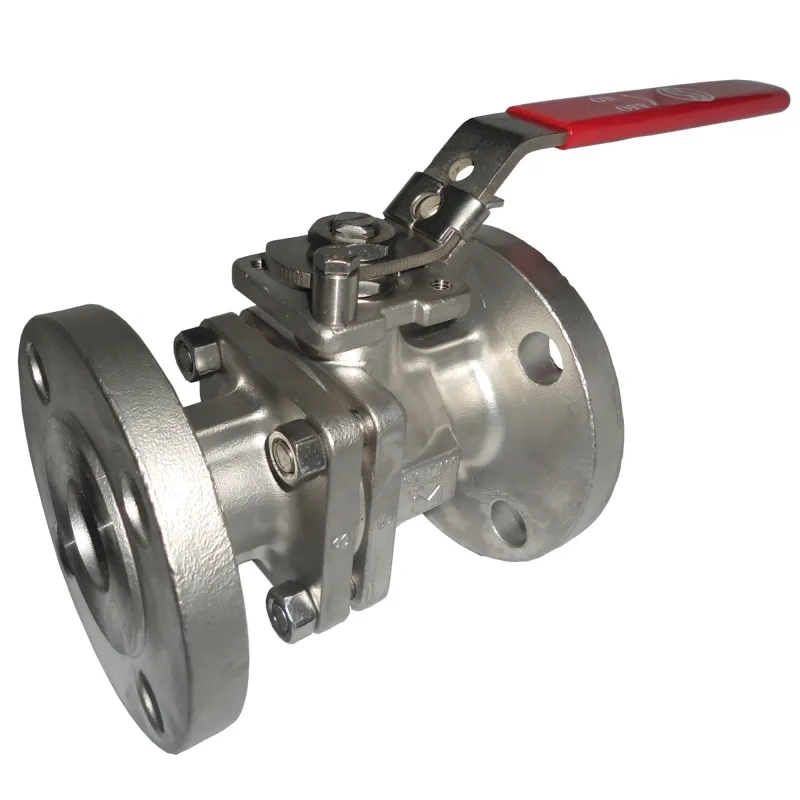

RBS 2-piece flanged ball valve, stainless steel ASTM A351 CF8M, Class 150, PN20, fire-safe

2-piece flanged ball valve, Class 150, PN20

Applications:

Chemicals, petrochemical industries, hydraulic systems, heating systems, air and water distribution
, steam (max. 11 bar). Minimum
and maximum permissible temperatures (Ts): -20°C to +200°C. Maximum permissible
pressure (Ps): 20 bar (see curve)

Available with CCPU 3.1 material certificate and ATEX marking

Class 150 (PN20) stainless steel ball valve, Ref. 779, from DN 15 to DN 100 (NPS 1/2" to 8")

Plus de détails
Normes et certifications : CENormes et certifications : ATEXNormes et certifications : TUV PED 97/23/CENormes et certifications : ISO 9001 : 2008 Bureau VéritasType de raccordement : À brides 150LBS (ISO PN20)Fluide admissible : Vapeur (11B maximum)1
dn 15
Are you an individual?
Are you a professional?

Log in to find out your discount.

€254.94 Tax included

212.45 € tax excl.

Unité de vente : Pièce
77900C000150015
Diameter DN: DN 15
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour RBS 2-piece flanged ball valve, stainless steel ASTM A351 CF8M, Class 150, PN20

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 2-piece flanged ball valve, stainless steel ASTM A351 CF8M, Class 150, PN20

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • 15% glass-filled PTFE seats
  • Lockable handle
  • Motorizable (ISO 5211 mounting plate)
  • 2-piece model (split body)
  • Venting hole in the ball (at the point of contact with the stem to prevent overpressure in the ball)

Construction:

  • Hollow ball (DN15 to DN100): ASTM A351 CF8M stainless steel.
  • Stuffing box: Graphite + carbon-filled PTFE.
  • Non-ejectable shaft: ASTM A276 316 stainless steel.
  • Dual antistatic system.
  • Glass-filled PTFE seats.
  • Padlockable handle: 778 - 779 (DN65 to DN100): Steel.
  • Dimensions: DN 15 to 100 mm
  • Connection: Class 150 (PN20) R.F. flanges
  • Material: Stainless steel

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0035 Risk
    Category III Module H
  • Manufactured in accordance with ASME B16.34
  • Leak testing in accordance with API 598, Table 6
  • Class 150 PN20 150 R.F. flanges in accordance with ASME B16.5
  • Base plate in accordance with ISO 5211
  • Spacing in accordance with ASME B16.10 (EN 558 Series 3 up to DN100, Series 12 from DN125 to 200)
  • ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 & 22 (optional marking)
  • Fire safety in accordance with API 607 Version 5 up to DN100

Nominal Ø 15 20 25 32 40 50 65 80 100
Passage diameter 15 20 24 30 38 50 64 76 98
PS 20 20 20 20 20 20 20 20 20
Track width 108 117 127 140 165 178 190 203 229

Caractéristiques techniques RBS 2-piece flanged ball valve, stainless steel ASTM A351 CF8M, Class 150, PN20

Data sheet

Reference
77900C000150015
Type de vanne
RBS (Robinet à tournant sphérique)
Passage
Intégral
Corps
Inox ASTM A351 CF8M
Obturateur
inox
Siège
PTFE chargé 15% verre
Axe
Inéjectable
Presse-étoupe
Graphite, PTFE chargé 25% carbone
Platine
Platine ISO 5211
Commande
Couleur rouge Poignée plate Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
À brides 150LBS (ISO PN20)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-20°C
Température maximum
200°C
Fluide admissible
Air comprimé Eau Eau chauffage Industries chimiques Industries pétrochimiques Installations hydrauliques Vapeur (11B maximum)
Classement Feu
API607 version 5 jusqu’au DN100
Normes et certifications
ATEX CE ISO 9001 : 2008 Bureau Véritas TUV PED 97/23/CE Test d'étanchéité API 598
Normalisation
Directive 97/23/CE : CE N° 0035
Équipements
Cadenassable Platine ISO
Possibilité de certificat 3.1
Oui
Possibilité de marquage ATEX
Oui
Unité de vente
Pièce
Garantie fabricant
1 an
