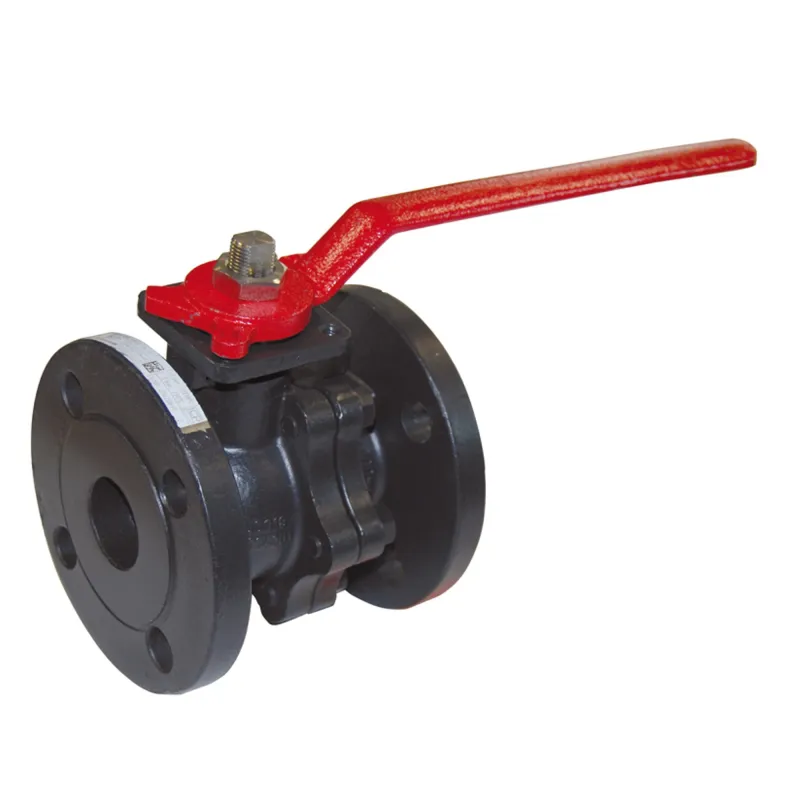

Robinet à tournant sphérique RBS 2 pièces à brides PN16/40
search
  • Robinet à tournant sphérique RBS 2 pièces à brides PN16/40
  • Robinet à tournant sphérique RBS 2 pièces à brides PN16/40
  • RBS 2 pièces à brides PN16/40 NOMENCLATURE ROBINETS 752
  • RBS 2 pièces à brides PN16/40 DIMENSIONS ROBINETS DN15-200 752
  • RBS 2 pièces à brides PN16/40 COURBE PRESSION-TEMPERATURE 752
  • RBS 2 pièces à brides PN16/40 DIMENSIONS REDUCTEURS DN100-200 752
  • RBS 2 pièces à brides PN16/40 DIMENSIONS RBS DN250-300 CMD REDUCT 752
  • RBS 2 pièces à brides PN16/40 NOMENCLATURE REDUCTEUR 752
  • RBS 2 pièces à brides PN16/40 DIMENSIONS POIGNEES INOX 752
  • RBS 2 pièces à brides PN16/40 DIMENSIONS Platine et bride 752

Photos non contractuelles

RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel

2-piece flanged ball valve PN16/40 ~ 2-piece flanged ball valve PN16/40

Applications:

Chemicals, petrochemical industries, hydraulic systems, heating, air and water distribution Minimum and
maximum permissible temperatures Ts: -20°C to +230°C Maximum permissible
pressure Ps: 40 bar up to DN50, 16 bar above (see curve) Vacuum
resistance: 10⁻² torr Compressed
air at ambient temperature: 8 bar maximum
Steam: 12 bar maximum

CCPU 3.1 material certificate and ATEX marking available

DN 125, DN 150, and DN 200: Models with hollow sphere.

DN250 and DN300: products available upon request, supplied with a reducer.

Plus de détails
Normes et certifications : CENormes et certifications : ATEXNormes et certifications : ISO 9001 : 2008 Bureau VéritasNormes et certifications : Sécurité feu ISO 10497Normes et certifications : Émissions fugitives ISO 15848-1 : 2003 classe AFluide admissible : Vapeur : (12 bars maximum)1Gamme : Excellence
dn 15
Are you an individual?
Are you a professional?

Log in to find out your discount.

€199.96 Tax included

166.63 € tax excl.

Unité de vente : Pièce
75200W00PN16015
Diameter DN: DN 15
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Carbon steel ball valve with lever handle Ref. 752 from DN 15 to DN 200 Can
be operated by a handwheel gearbox Ref. 9830221-9830222 and 9830266-267 from DN 100 to DN 200 Can
be operated by a stainless steel handle ASTM A351 CF8M Ref. 9812090-9812097 from DN 15 to DN 200 Carbon steel
ball valve with handwheel gearbox actuation Ref. 752 from DN 250 to DN 300

Technical specifications:

  • Full bore
  • Non-ejectable stem
  • Pure PTFE seat TFM1600 (PMD FF)
  • Handle lockable
  • Motorizable (ISO 5211 mounting plate)
  • 2-piece model (split body)
  • With R.F. flanges, PN40 up to DN 50, PN16 and above
  • Antistatic system up to DN200
  • Fire safety ISO 10497:2004 up to DN200
  • Fugitive emissions EN 15848-1:2006 up to DN200
  • Shaft seal via graphite gland + FKM O-ring
  • Venting hole in the ball (at the point of contact with the shaft to prevent overpressure in the ball)
  • Black paint, RAL 9004, 5–15 microns thick

Construction:

  • Ball: ASTM A351 CF8M stainless steel.
  •  Graphite gland + FKM O-ring.
  • Non-ejectable shaft: ASTM A182 F316 stainless steel.
  • Antistatic system.
  • Seat: TFM1600 (PTFE). Body seal: spiral-wound metal + graphite.
  • Red spheroidal cast iron handle, padlockable.
  • ISO 5211 mounting plate.
  • Sizes: DN 15 to 300 mm
  • Connection: R.F. flanges PN40 up to DN 50, PN16 above
  • Material: Carbon steel

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0035 Risk
    Category III, Module H
  • Designed in accordance with EN 1983 – ISO 17292
  • Leak testing in accordance with EN 12266-1, Class A
  • Marking in accordance with EN 19
  • Fire safety in accordance with ISO 10497:2004 up to DN200
  • Fugitive emissions in accordance with EN 15848-1:2006 up to DN200
  • Welded flanges in accordance with EN 1092-1 PN16/40
  • Flange plate in accordance with ISO 5211 and shaft in accordance with EN 15081
  • Spacing in accordance with EN 558 Series 27 (DIN 3202 F4/F5)
  • ATEX Group II Category 2 G/2Dc Zone 1 & 21 Zone 2 & 22 (optional marking) up to DN200

Nominal Ø 15 20 25 32 40 50 65 80 100 125 150 200
Passage diameter 15 20 25 32 40 50 65 78 100 125 151 203
PS 40 40 40 40 40 40 16 16 16 16 16 16
Track gauge 115 120 125 130 140 150 170 180 190 325 350 400

Caractéristiques techniques RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel

Data sheet

Reference
75200W00PN16015
Gamme
Excellence
Type de vanne
RBS (Robinet à tournant sphérique)
Passage
Intégral
Corps
Acier A216WCB
Obturateur
inox
Siège
PTFE pur TFM 1600 ( PMD FF )
Axe
Inéjectable
Presse-étoupe
Graphite
Platine
Platine ISO 5211
Commande
Couleur rouge Poignée plate Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
A brides R.F. PN40 jusqu’au DN 50, PN16 au-delà
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-20°C
Température maximum
230°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Industries chimiques Industries pétrochimiques Vapeur : (12 bars maximum)
Normes et certifications
ATEX CE ISO 9001 : 2008 Bureau Véritas Sécurité feu ISO 10497 Tests d’étanchéité EN 12266-1, Classe A Émissions fugitives ISO 15848-1 : 2003 classe A
Normalisation
Directive 97/23/CE : CE N° 0035
Équipements
Cadenassable Platine ISO
Possibilité de certificat 3.1
Oui
Possibilité de marquage ATEX
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 752

Fiche technique 752 RBS 2 pièces à brides PN16/40

Download (1.81MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel

Voici la liste des références et poids correspondants aux options séléctionnées.
75200W00PN16015 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 15
Diameter DN DN 15
Packed weight 2,52kg
166.63 € tax excl.
Consulter
75200W00PN16020 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 20
Diameter DN DN 20
Packed weight 3,36kg
189.25 € tax excl.
Consulter
75200W00PN16025 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 25
Diameter DN DN 25
Packed weight 4,305kg
257.17 € tax excl.
Consulter
75200W00PN16032 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 32
Diameter DN DN 32
Packed weight 6,09kg
348.01 € tax excl.
Consulter
75200W00PN16040 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 40
Diameter DN DN 40
Packed weight 8,505kg
360.04 € tax excl.
Consulter
75200W00PN16050 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 50
Diameter DN DN 50
Packed weight 11,13kg
422.4 € tax excl.
Consulter
75200W00PN16065 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 65
Diameter DN DN 65
Packed weight 13,965kg
593.09 € tax excl.
Consulter
75200W00PN16080 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 80
Diameter DN DN 80
Packed weight 20,055kg
741.91 € tax excl.
Consulter
75200W00PN16100 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 100
Diameter DN DN 100
Packed weight 26,88kg
1227.72 € tax excl.
Consulter
75200W00PN16125 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 125
Diameter DN DN 125
Packed weight 49,98kg
2039.57 € tax excl.
Consulter
75200W00PN16150 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 150
Diameter DN DN 150
Packed weight 66,675kg
2735.46 € tax excl.
Consulter
75200W00PN16200 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 200
Diameter DN DN 200
Packed weight 121,065kg
5661.27 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
75200W00PN16015 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 15 DN 15 2,52kg 166.63 € tax excl.
75200W00PN16020 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 20 DN 20 3,36kg 189.25 € tax excl.
75200W00PN16025 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 25 DN 25 4,305kg 257.17 € tax excl.
75200W00PN16032 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 32 DN 32 6,09kg 348.01 € tax excl.
75200W00PN16040 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 40 DN 40 8,505kg 360.04 € tax excl.
75200W00PN16050 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 50 DN 50 11,13kg 422.4 € tax excl.
75200W00PN16065 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 65 DN 65 13,965kg 593.09 € tax excl.
75200W00PN16080 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 80 DN 80 20,055kg 741.91 € tax excl.
75200W00PN16100 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 100 DN 100 26,88kg 1227.72 € tax excl.
75200W00PN16125 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 125 DN 125 49,98kg 2039.57 € tax excl.
75200W00PN16150 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 150 DN 150 66,675kg 2735.46 € tax excl.
75200W00PN16200 - RBS 2-piece flanged ball valve, PN16/40, ASTM A216 WCB steel - DN 200 DN 200 121,065kg 5661.27 € tax excl.
