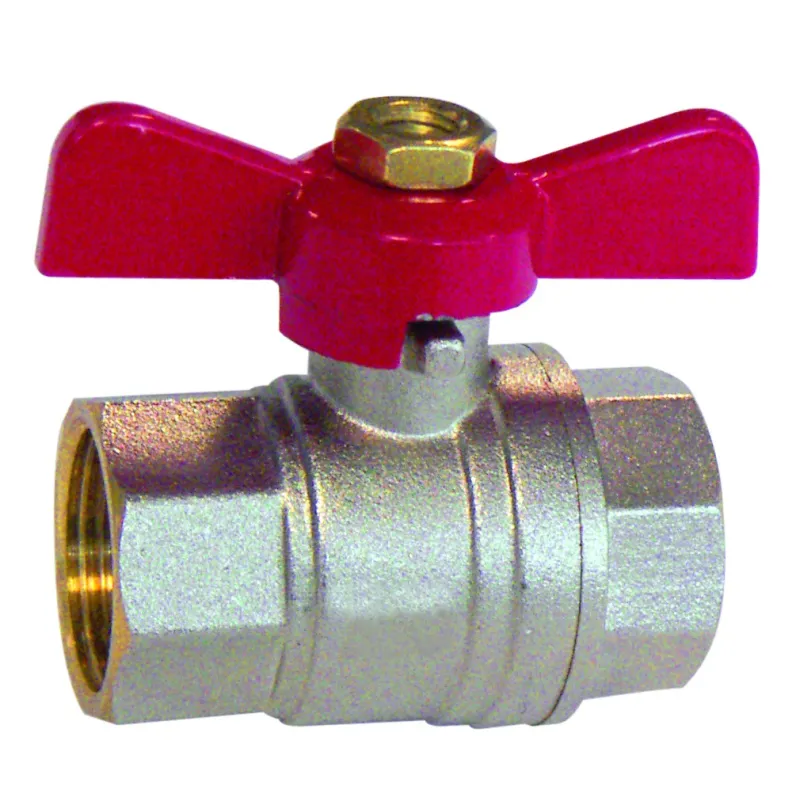

CW510L-grade brass ball valve, model number + female-female 1" (26/34) red butterfly lever
CW510L-grade brass ball valve, part number + lead-free female-to-female
Brass ball valve
Applications:
Domestic hot water, drinking water, air conditioning, sprinkler systems, and irrigation Minimum permissible
temperature Ts: - 10°C Maximum permissible
temperature Ts: +120°C Maximum permissible
pressures Ps: 40 bar up to DN 1", 30 bar at 1-1/4", 25 bar at 1-1/2", 20 bar at 2", and 10 bar above
Available in:
Female/Female with red flat steel handle from 1/4" to 4"
Female/Female with red butterfly handle from 1/4" to 1"
Female/Female with blue flat steel handle from 1/4" to 4"
1
1" (26/34)
red butterfly lever
Are you an individual?
Are you a professional?
Log in to find out your discount.
€19.58
Tax included
16.32 € tax excl.
Unité de vente : Pièce
Are you an individual?
Save time and have it delivered to your workplace..
Are you a professional?
Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account
FREE SHIPPING
From €150 incl. VAT
For a cart not exceeding 30Kg
Complément d'information CW510L-grade brass ball valve, model number + female-female
The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
Technical specifications:
- Lead-free brass body CW510L (CuZn42)
- Brass compliant with the list of materials authorized by 4MS
- Full bore
- Non-ejectable spindle
- Stainless steel ball from DN3/4"
- PTFE gland
- Flat steel handle or aluminum butterfly lever
- Dacromet-coated handle nut (salt spray protection)
- Body marked “9SP” with ACS, date of manufacture, and logo
- ACS number on the handle
- Reversible handle
Construction:
- Body: CW510L brass, brushed on the inside and nickel-plated on the outside.
- Brass compliant with the list of materials authorized by 4MS.
- Stainless steel ball for DN 3/4" and larger; chrome-plated brass for smaller DN sizes.
- PTFE ball seals.
- PTFE gland.
- Non-ejectable stem.
- Reversible handle.
Standardization:
- Manufactured in accordance with ISO 9001:2008
- DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
- Sanitary Conformity Certificate A.C.S. No. 14 ACC LY 469
- Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1
| Nominal Ø | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2 1/2" | 3" | 4" |
| Passage diameter | 9 | 10 | 15 | 20 | 24.5 | 32 | 40 | 50 | 63 | 79 | 99 |
| PS | 40 | 40 | 40 | 40 | 40 | 30 | 25 | 20 | 10 | 10 | 10 |
| Track gauge | 45 | 45 | 53 | 60 | 70 | 84 | 94 | 105 | 136 | 160 | 189 |
Caractéristiques techniques CW510L-grade brass ball valve, model number + female-female
Data sheet
- Reference
- 52500N000BFF025
- Avis de l'équipe
- Meilleur rapport qualité/prix
- Type de vanne
- RBS (robinet à boisseau sphérique)
- Passage
- Intégral
- Corps
- Laiton titré CW510L interne brossé et externe nickelé
- Obturateur
- Joint de sphère PTFE Sphère inox à partir du 3/4" Sphère laiton chromé du 1/4" au 1/2"
- Axe
- Inéjectable
- Presse-étoupe
- PTFE
- Commande
- Couleur rouge En fonction du modèle choisi Réversible
- Entraxe
- En fonction du modèle choisi
- Type de raccordement
- Á visser BSP (pas du gaz)
- Raccordement
- FF (femelle - femelle)
- Diamètre
- En fonction du modèle choisi
- Débit
- En fonction du modèle choisi
- Pression de service
- 1"1/2 : 25B 1"1/4 : 30B 2" : 20B De 1/4" à 1" : 40 B De 2"1/2 à 4" : 10B
- Température minimum
- -10°C
- Température maximum
- 120°C
- Fluide admissible
- Arrosage et irrigation Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
- Normes et certifications
- Certification ACS ISO 9001 : 2008 (BSI) Sans plomb
- Normalisation
- Directive 97/23/CE
- Unité de vente
- Pièce
- Garantie fabricant
- 1 an
Specific References
- ean13
- 3598781131084
Download documentation
Caractéristiques liées à la version du produit CW510L-grade brass ball valve, model number + female-female
Voici la liste des références et poids correspondants aux options séléctionnées.50100N000BFF008 - CW510L-grade brass ball valve, model number + female-female - 1/4" (8/13) - Blue flat handle
| Diameter (in inches) | 1/4" (8/13) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 0,1554kg |
50900N000BFF008 - CW510L-grade brass ball valve, model number + female-female - 1/4" (8/13) - Red flat handle
| Diameter (in inches) | 1/4" (8/13) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 0,1554kg |
52500N000BFF008 - CW510L-grade brass ball valve, model number + female-female - 1/4" (8/13) - Red butterfly lever
| Diameter (in inches) | 1/4" (8/13) |
|---|---|
| Handle type | Red butterfly lever |
| Packed weight | 0,1323kg |
52500N000BFF010 - CW510L-grade brass ball valve, model number + female-female - 3/8" (12/17) - Red butterfly lever
| Diameter (in inches) | 3/8" (12/17) |
|---|---|
| Handle type | Red butterfly lever |
| Packed weight | 0,1113kg |
50900N000BFF010 - CW510L-grade brass ball valve, model number + female-female - 3/8" (12/17) - Red flat handle
| Diameter (in inches) | 3/8" (12/17) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 0,1365kg |
50100N000BFF010 - CW510L-grade brass ball valve, model number + female-female - 3/8" (12/17) - Blue flat handle
| Diameter (in inches) | 3/8" (12/17) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 0,1365kg |
50900N000BFF015 - CW510L-grade brass ball valve, model number + female-female - 1/2" (15/21) - Red flat handle
| Diameter (in inches) | 1/2" (15/21) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 0,2184kg |
50100N000BFF015 - CW510L-grade brass ball valve, model number + female-female - 1/2" (15/21) - Blue flat handle
| Diameter (in inches) | 1/2" (15/21) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 0,2184kg |
52500N000BFF015 - CW510L-grade brass ball valve, model number + female-female - 1/2" (15/21) - Red butterfly lever
| Diameter (in inches) | 1/2" (15/21) |
|---|---|
| Handle type | Red butterfly lever |
| Packed weight | 0,18165kg |
50900N000BFF020 - CW510L-grade brass ball valve, model number + female-female - 3/4" (20/27) - Red flat handle
| Diameter (in inches) | 3/4" (20/27) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 0,315kg |
50100N000BFF020 - CW510L-grade brass ball valve, model number + female-female - 3/4" (20/27) - Blue flat handle
| Diameter (in inches) | 3/4" (20/27) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 0,315kg |
52500N000BFF020 - CW510L-grade brass ball valve, model number + female-female - 3/4" (20/27) - Red butterfly lever
| Diameter (in inches) | 3/4" (20/27) |
|---|---|
| Handle type | Red butterfly lever |
| Packed weight | 0,28035kg |
50900N000BFF025 - CW510L-grade brass ball valve, model number + female-female - 1" (26/34) - Red flat handle
| Diameter (in inches) | 1" (26/34) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 0,525kg |
50100N000BFF025 - CW510L-grade brass ball valve, model number + female-female - 1" (26/34) - Blue flat handle
| Diameter (in inches) | 1" (26/34) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 0,525kg |
52500N000BFF025 - CW510L-grade brass ball valve, model number + female-female - 1" (26/34) - Red butterfly lever
| Diameter (in inches) | 1" (26/34) |
|---|---|
| Handle type | Red butterfly lever |
| Packed weight | 0,4725kg |
50900N000BFF032 - CW510L-grade brass ball valve, model number + female-female - 1"1/4 (33/42) - Red flat handle
| Diameter (in inches) | 1"1/4 (33/42) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 0,8337kg |
50100N000BFF032 - CW510L-grade brass ball valve, model number + female-female - 1"1/4 (33/42) - Blue flat handle
| Diameter (in inches) | 1"1/4 (33/42) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 0,8127kg |
50100N000BFF040 - CW510L-grade brass ball valve, model number + female-female - 1"1/2 (40/49) - Blue flat handle
| Diameter (in inches) | 1"1/2 (40/49) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 1,1487kg |
50900N000BFF040 - CW510L-grade brass ball valve, model number + female-female - 1"1/2 (40/49) - Red flat handle
| Diameter (in inches) | 1"1/2 (40/49) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 1,1487kg |
50100N000BFF050 - CW510L-grade brass ball valve, model number + female-female - 2" (50/60) - Blue flat handle
| Diameter (in inches) | 2" (50/60) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 1,5057kg |
50900N000BFF050 - CW510L-grade brass ball valve, model number + female-female - 2" (50/60) - Red flat handle
| Diameter (in inches) | 2" (50/60) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 1,5057kg |
50100N000BFF065 - CW510L-grade brass ball valve, model number + female-female - 2"1/2 (66/76) - Blue flat handle
| Diameter (in inches) | 2"1/2 (66/76) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 3,35475kg |
50900N000BFF065 - CW510L-grade brass ball valve, model number + female-female - 2"1/2 (66/76) - Red flat handle
| Diameter (in inches) | 2"1/2 (66/76) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 3,35475kg |
50100N000BFF080 - CW510L-grade brass ball valve, model number + female-female - 3" (80/90) - Blue flat handle
| Diameter (in inches) | 3" (80/90) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 5,10825kg |
50900N000BFF080 - CW510L-grade brass ball valve, model number + female-female - 3" (80/90) - Red flat handle
| Diameter (in inches) | 3" (80/90) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 4,89825kg |
50100N000BFF100 - CW510L-grade brass ball valve, model number + female-female - 4" (102/114) - Blue flat handle
| Diameter (in inches) | 4" (102/114) |
|---|---|
| Handle type | Blue flat handle |
| Packed weight | 8,23305kg |
50900N000BFF100 - CW510L-grade brass ball valve, model number + female-female - 4" (102/114) - Red flat handle
| Diameter (in inches) | 4" (102/114) |
|---|---|
| Handle type | Red flat handle |
| Packed weight | 7,69125kg |
CW510L-grade brass ball valve, part number + lead-free female-to-female
Brass ball valve
Applications:
Domestic hot water, drinking water, air conditioning, sprinkler systems, and irrigation Minimum permissible
temperature Ts: - 10°C Maximum permissible
temperature Ts: +120°C Maximum permissible
pressures Ps: 40 bar up to DN 1", 30 bar at 1-1/4", 25 bar at 1-1/2", 20 bar at 2", and 10 bar above
Available in:
Female/Female with red flat steel handle from 1/4" to 4"
Female/Female with red butterfly handle from 1/4" to 1"
Female/Female with blue flat steel handle from 1/4" to 4"
