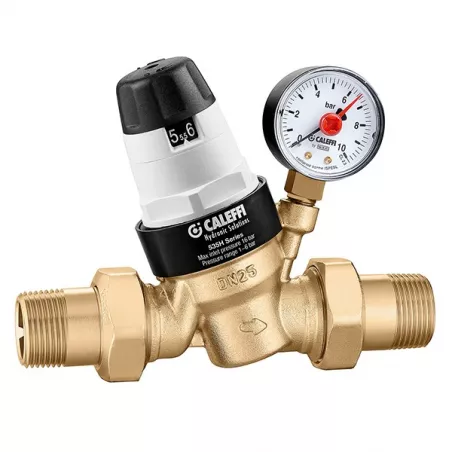

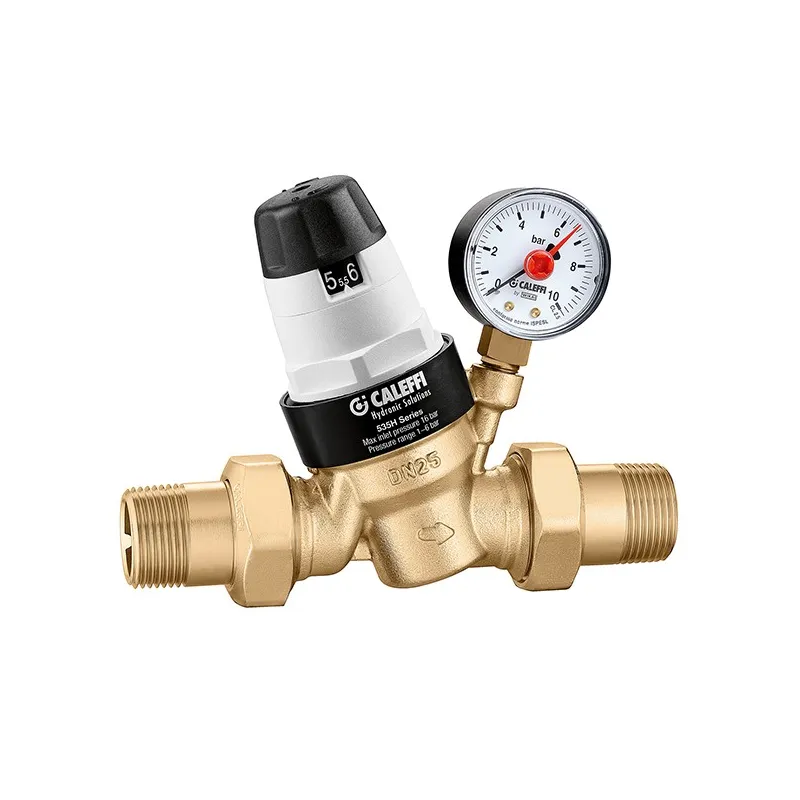

R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water 1/2" (15/21)

Réducteurs de pression
Réducteur de pression R535 à cartouche démontable MM pour eau chaude
search
  • Réducteur de pression R535 à cartouche démontable MM pour eau chaude

Photo non contractuelle

R535 Pressure Reducer with Removable MM Cartridge and Flow Meter for Hot Water

Function:

Pressure reducers are devices installed on private water distribution systems to reduce and stabilize the water pressure coming from the public water supply, as this pressure is generally too high and variable for domestic installations.

The functional components are housed in a single, removable cartridge.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€116.93 Tax included

97.44 € tax excl.

Unité de vente : Pièce
R53500H0000MM15
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Inlet pressure up to 25 bar
  • Adjustable downstream pressure from 1 to 6 bar
  • Factory-set to 3 bar
  • Maximum operating temperature: 80°C
  • Fluids: water
  • Certified to EN1567

Construction:

  • Dezincification-resistant brass body
  • EPDM diaphragm and seals
  • Filters: stainless steel EN 10088-2 (AISI 304)
  • Supplied with 0/10 bar pressure gauge
  • Main connections: 1/2”–2” M (EN 10226-1)
  • Pressure gauge connection: 1/4” F (ISO 228-1)

Caractéristiques techniques R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water

Data sheet

Reference
R53500H0000MM15
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression maximum
25 bar
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS EN 1567
Équipements
Filtre Manomètre
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT R53515 Caleffi

Fiche technique réducteur de pression

Download (1.96MB)

Brochure R53515

Brochure R53515 Caleffi

Download (804.73KB)

Caractéristiques liées à la version du produit R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water

Voici la liste des références et poids correspondants aux options séléctionnées.
R53500H0000MM15 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,9kg
97.44 € tax excl.
Consulter
R53500H0000MM20 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 1,1kg
107.58 € tax excl.
Consulter
R53500H0000MM25 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 1,3kg
132.67 € tax excl.
Consulter
R53500H0000MM32 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 2,6kg
280.25 € tax excl.
Consulter
R53500H0000MM40 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 3,2kg
326.24 € tax excl.
Consulter
R53500H0000MM50 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 4,2kg
399.72 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
R53500H0000MM15 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 1/2" (15/21) 1/2" (15/21) 0,9kg 97.44 € tax excl.
R53500H0000MM20 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 3/4" (20/27) 3/4" (20/27) 1,1kg 107.58 € tax excl.
R53500H0000MM25 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 1" (26/34) 1" (26/34) 1,3kg 132.67 € tax excl.
R53500H0000MM32 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 1"1/4 (33/42) 1"1/4 (33/42) 2,6kg 280.25 € tax excl.
R53500H0000MM40 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 1"1/2 (40/49) 1"1/2 (40/49) 3,2kg 326.24 € tax excl.
R53500H0000MM50 - R535 Pressure Reducing Valve with Removable MM Cartridge for Hot Water - 2" (50/60) 2" (50/60) 4,2kg 399.72 € tax excl.
