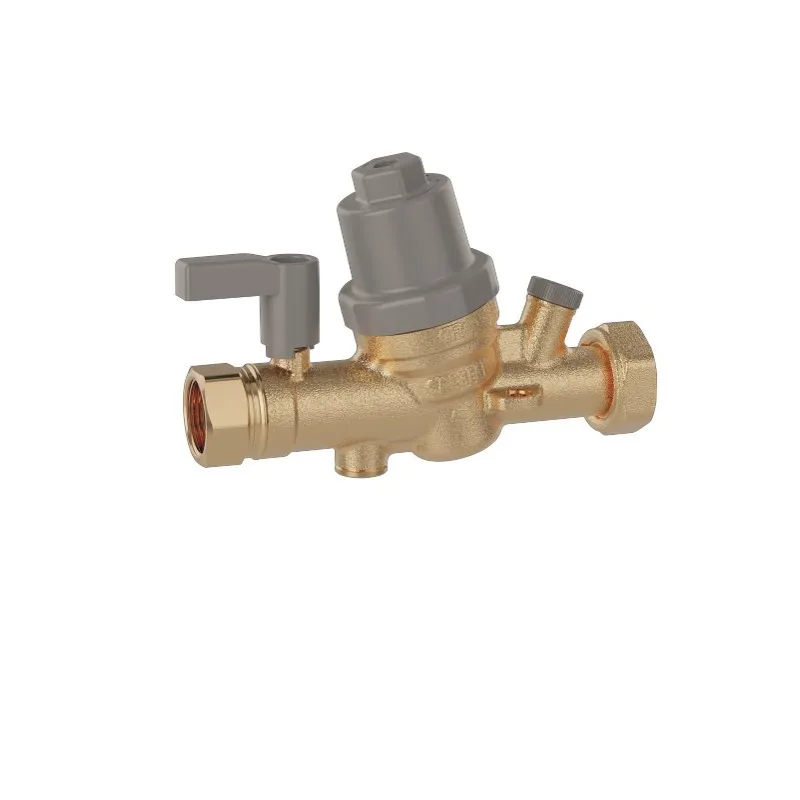

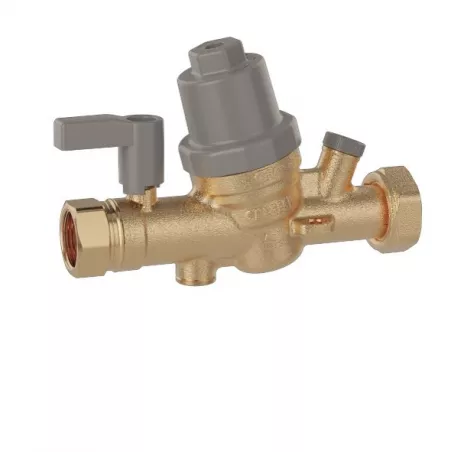

Multifunction pressure-reducing unit for domestic water systems

Function:

The multifunction pressure-reducing unit for sanitary water systems combines three different devices into a single component:
a ball shut-off valve, a pressure reducer with filter, and an EA-type check valve.
Installed on hot or cold water supply lines, it reduces pressure from the main line, prevents backflow into the system, and allows tap points to be isolated for inspection and maintenance.

3/4" RP and 1" G connections with swivel nut 1/4" G pressure
tap connections (ISO 228-1)

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : WRASType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€136.97 Tax included

114.14 € tax excl.

Unité de vente : Pièce
R359H00000M20F25
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Multifunction pressure-reducing unit

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional specifications: Pressure reducer

  • Cover: PA6G30 (not UV-resistant)
  • Drive shaft: stainless steel EN 10088-3 (AISI 303)
  • Spring: steel EN 10270-1
  • Cartridge: PPSG40
  • Internal components/moving parts: PSU
  • Diaphragm: EPDM
  • Seals: EPDM
  • Filter: stainless steel EN 10088-2 (AISI 304)
  • Upstream control port cap: CW724R
  • Downstream test port cap: PA66G30

Construction:

  • Body: dezincification-resistant brass EN 12165 CW724R

Caractéristiques techniques Multifunction pressure-reducing unit

Data sheet

Reference
R359H00000M20F25
Matière
Laiton
Joint
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
M 3/4" - F 1"
Pression maximum
16 bar
Température maximum
80°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS EN 1567 WRAS
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 539H

Fiche technique groupe combiné multifonction pour le contrôle de la pression dans les installations d'eaux sanitaires.

Download (6.34MB)
