Pressure reducing valve, lead-free bronze body 900 1/2" (15/21)

Réducteurs de pression

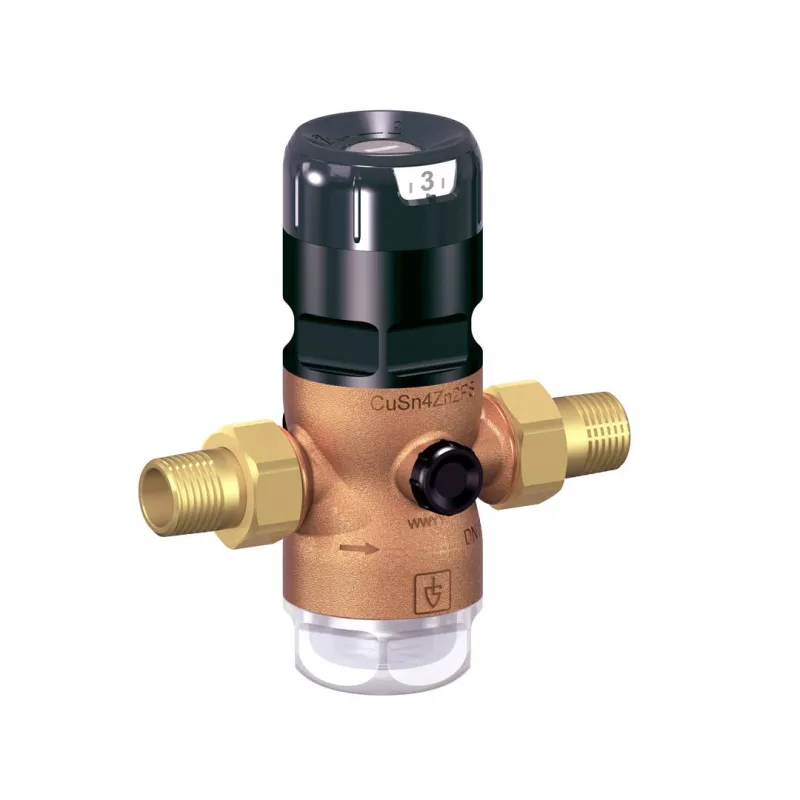

Pressure reducing valve, lead-free bronze body 900
search
  • Pressure reducing valve, lead-free bronze body 900

Photo non contractuelle

PRESSURE REDUCING VALVE WITH LEAD-FREE BRONZE BODY

Function:

The pressure reducer protects the system against overpressure and pressure variations.

Range:

  • R90015: 1/2" DIA
  • R90020: 3/4" DIA
  • R90026: Ø 1" R
  • R90033: Ø 1"1/4
  • R90040: Ø 1"1/2
  • R90050: Ø 2"
Plus de détails
Normes et certifications : Certification ACS
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€110.45 Tax included

92.04 € tax excl.

Unité de vente : Pièce
R90000000000015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Pressure reducing valve, lead-free bronze body 900

Technical data:

  • Body: Lead-free bronze: CuSn4Zn2PS
  • Valve system: Plastic | Stainless steel | Elastomer: PPSU | 1.4404 | EPDM
  • Filter cap: Plastic or lead-free bronze: PA
  • Filter element: Plastic | Stainless steel: POM | 1.4401
  • Spring cap: Plastic: PA Glass fiber reinforced
  • O-rings: Elastomer: EPDM
  • Plug: Plastic: PA Glass-fiber reinforced

  • Upstream pressure up to 16 bar
  • Downstream pressure adjustable from 1.5 to 7 bar depending on version
  • Factory-set to 3 bar
  • Max. operating temperature 85°C
  • Media: drinking water
  • High-precision flow and pressure control
  • 160µm filter element - system protection thanks to easy cleaning and visualization of contamination through transparent filter cartridge
  • Graduations visible from all sides for adjustment without a pressure gauge or operating pressure
  • High-quality plastic materials from medical technology
  • Lead-free bronze body
  • Technical specifications
  • It is recommended to choose the diameter of the reducer to be installed so that the flow velocity does not exceed 2 m/s for water in domestic installations.

Graphique VITESSE/DEBIT R900

Caractéristiques techniques Pressure reducing valve, lead-free bronze body 900

Data sheet

Reference
R90000000000015
Type de clapet / filtre
Plastique | Acier inoxydable | Elastomère
Corps
Bronze sans plomb
Joint
Elastomère
Pression maximum
16 bar
Température maximum
85°C
Normes et certifications
Certification ACS
Unité de vente
Pièce

Download documentation

FT R900

Fiche Technique R900

Download (708.28KB)

Caractéristiques liées à la version du produit Pressure reducing valve, lead-free bronze body 900

Voici la liste des références et poids correspondants aux options séléctionnées.
R90000000000015 - Pressure reducing valve, lead-free bronze body 900 - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,8kg
92.04 € tax excl.
Consulter
R90000000000020 - Pressure reducing valve, lead-free bronze body 900 - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,9kg
102.8 € tax excl.
Consulter
R90000000000026 - Pressure reducing valve, lead-free bronze body 900 - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 1,7kg
112.97 € tax excl.
Consulter
R90000000000033 - Pressure reducing valve, lead-free bronze body 900 - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,9kg
169.13 € tax excl.
Consulter
R90000000000040 - Pressure reducing valve, lead-free bronze body 900 - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 3,9kg
296.95 € tax excl.
Consulter
R90000000000050 - Pressure reducing valve, lead-free bronze body 900 - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 4,5kg
354.32 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
R90000000000015 - Pressure reducing valve, lead-free bronze body 900 - 1/2" (15/21) 1/2" (15/21) 0,8kg 92.04 € tax excl.
R90000000000020 - Pressure reducing valve, lead-free bronze body 900 - 3/4" (20/27) 3/4" (20/27) 0,9kg 102.8 € tax excl.
R90000000000026 - Pressure reducing valve, lead-free bronze body 900 - 1" (26/34) 1" (26/34) 1,7kg 112.97 € tax excl.
R90000000000033 - Pressure reducing valve, lead-free bronze body 900 - 1"1/4 (33/42) 1"1/4 (33/42) 1,9kg 169.13 € tax excl.
R90000000000040 - Pressure reducing valve, lead-free bronze body 900 - 1"1/2 (40/49) 1"1/2 (40/49) 3,9kg 296.95 € tax excl.
R90000000000050 - Pressure reducing valve, lead-free bronze body 900 - 2" (50/60) 2" (50/60) 4,5kg 354.32 € tax excl.
