Flanged pressure reducing valve, cast iron body - 382 dn 50

Réducteurs de pression

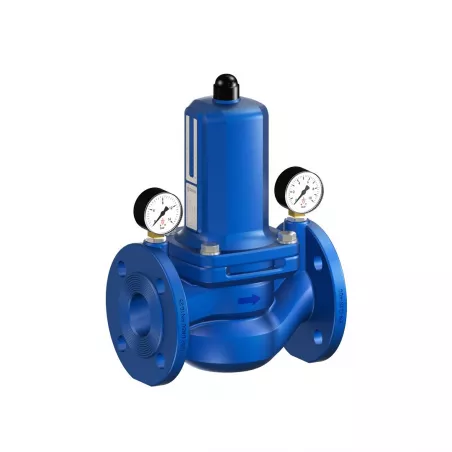

Réducteur de pression à brides corps fonte - 382
search
  • Réducteur de pression à brides corps fonte - 382

Photo non contractuelle

FLANGED PRESSURE REDUCING VALVE IN CAST IRON BODY

Function:

The pressure reducer protects the system against overpressure and pressure variations.

Range:

  • R38250: DN50 - PN16
  • R38265: DN65 - PN16
Plus de détails
Normes et certifications : Certification ACSFluide admissible : Eau sanitaire et potable
dn 50
Are you an individual?
Are you a professional?

Log in to find out your discount.

€881.87 Tax included

734.89 € tax excl.

Unité de vente : Pièce
R38200000000050
Diameter DN: DN 50
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Flanged pressure reducing valve, cast iron body - 382

Technical specifications:

  • Body: Spheroidal graphite cast iron: 0.7043
  • Coating: Polyamide: Polyamide
  • Cartridge with valve: Stainless steel / Elastomer: 1.4404/1.4408 | EPDM
  • Seal: Plastic: EPDM
  • Upstream pressure up to 16 bar
  • Downstream pressure adjustable from 1.5 to 7 bar depending on version
  • Factory-set to 3 bar
  • Max. operating temperature 65°C
  • Media: drinking water
  • Upstream pressure-balanced diaphragm regulator
  • Sintered polyamide coating for long-lasting protection against corrosion and cavitation
  • Setting scale for adjustment without operating pressure
  • Positionable hood
  • Cartridge-shaped valve insert for quick and easy maintenance EPDM flange seals with steel core (3mm)
  • Inlet and outlet pressure gauges
  • Contact area with lead-free drinking water
  • It is recommended to choose the diameter of the reducer to be installed so that the flow velocity does not exceed 2 m/s for water in domestic installations.

Caractéristiques techniques Flanged pressure reducing valve, cast iron body - 382

Data sheet

Reference
R38200000000050
Corps
Fonte
Joint
EPDM
Pression maximum
16 bar
Température maximum
65°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS
Unité de vente
Pièce

Download documentation

FT R382

Fiche Technique R382

Download (708.28KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Flanged pressure reducing valve, cast iron body - 382

Voici la liste des références et poids correspondants aux options séléctionnées.
R38200000000050 - Flanged pressure reducing valve, cast iron body - 382 - DN 50
Diameter DN DN 50
Packed weight 19kg
734.89 € tax excl.
Consulter
R38200000000065 - Flanged pressure reducing valve, cast iron body - 382 - DN 65
Diameter DN DN 65
Packed weight 20kg
1045.53 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
R38200000000050 - Flanged pressure reducing valve, cast iron body - 382 - DN 50 DN 50 19kg 734.89 € tax excl.
R38200000000065 - Flanged pressure reducing valve, cast iron body - 382 - DN 65 DN 65 20kg 1045.53 € tax excl.
