R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water 1/2" (15/21)

Réducteurs de pression
Réducteur de pression R535 à cartouche démontable MM
search

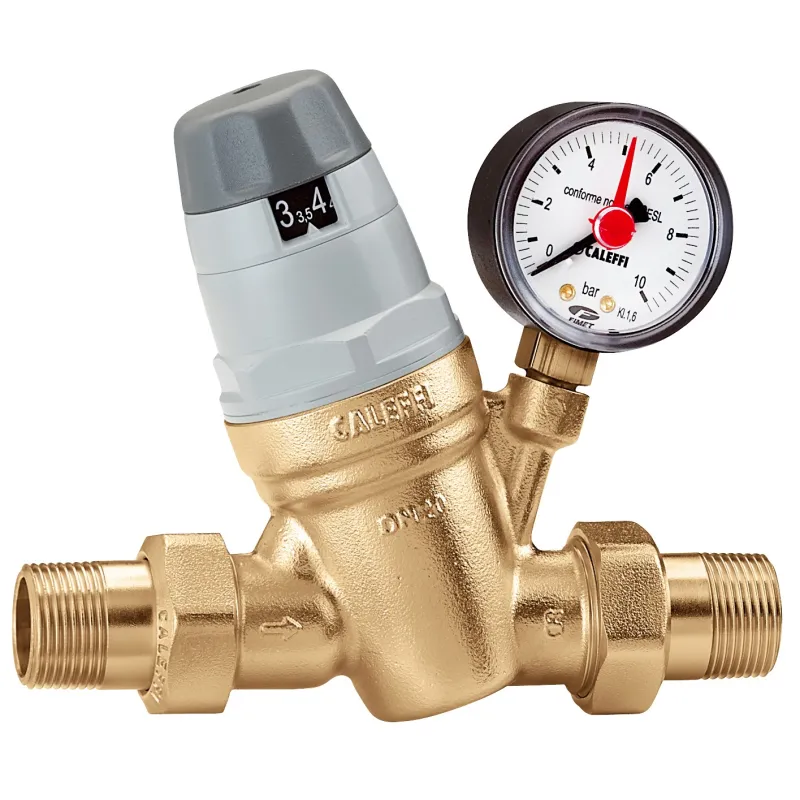

  • Réducteur de pression R535 à cartouche démontable MM
  • schéma Réducteur de pression R535 à cartouche démontable MM

Photos non contractuelles

R535 Pressure Reducer with Removable MM Cartridge and Gauge for Cold Water

Function:

The pressure reducer protects the system from overpressure and pressure fluctuations

The functional components are housed in a single, removable cartridge.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€92.54 Tax included

77.12 € tax excl.

Unité de vente : Pièce
R53500L0000MM15
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Inlet pressure up to 25 bar
  • Adjustable downstream pressure from 1 to 6 bar
  • Supplied factory-calibrated to 3 bar
  • Maximum operating temperature
  • R535: 40°C
  • Fluids: water
  • Certified to EN1567 standard

Construction:

  • Dezincification-resistant brass body
  • Stainless steel control stem
  • NBR diaphragm and seals
  • Stainless steel filters
  • Internal filter R535, mesh size: 0.51 mm
  • Removable external filter R535F, mesh size: 0.28 mm
  • Supplied with 0/10 bar pressure gauge

Caractéristiques techniques R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water

Data sheet

Reference
R53500L0000MM15
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression maximum
25 bar
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS EN 1567
Équipements
Filtre Manomètre
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615219685

Download documentation

FT R53515

Fiche technique Réducteur de pression R535

Download (1.03MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water

Voici la liste des références et poids correspondants aux options séléctionnées.
R53500L0000MM15 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,86625kg
77.12 € tax excl.
Consulter
R53500L0000MM20 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 1,0143kg
85.48 € tax excl.
Consulter
R53500L0000MM25 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 1,3713kg
114.14 € tax excl.
Consulter
R53500L0000MM32 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 2,7825kg
233.06 € tax excl.
Consulter
R53500L0000MM40 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 3,3432kg
285.61 € tax excl.
Consulter
R53500L0000MM50 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 4,56225kg
344.76 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
R53500L0000MM15 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 1/2" (15/21) 1/2" (15/21) 0,86625kg 77.12 € tax excl.
R53500L0000MM20 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 3/4" (20/27) 3/4" (20/27) 1,0143kg 85.48 € tax excl.
R53500L0000MM25 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 1" (26/34) 1" (26/34) 1,3713kg 114.14 € tax excl.
R53500L0000MM32 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 1"1/4 (33/42) 1"1/4 (33/42) 2,7825kg 233.06 € tax excl.
R53500L0000MM40 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 1"1/2 (40/49) 1"1/2 (40/49) 3,3432kg 285.61 € tax excl.
R53500L0000MM50 - R535 Pressure Reducing Valve with Removable MM Cartridge for Cold Water - 2" (50/60) 2" (50/60) 4,56225kg 344.76 € tax excl.
