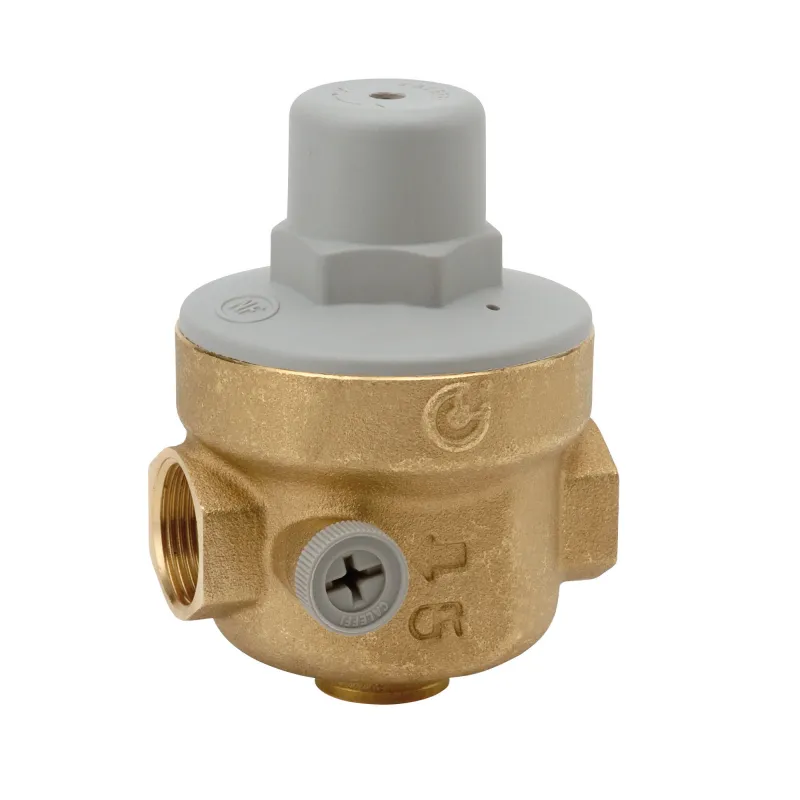

R539 FF 3/4" Pressure Reducer with Fittings

Réducteurs de pression
Réducteur de pression R539 FF 3/4"
search
  • Réducteur de pression R539 FF 3/4"
  • Schéma Réducteur de pression R539 FF 3/4"
  • Raccord Réducteur de pression R539 FF 3/4"

Photos non contractuelles

R539 FF 3/4" Pressure Reducer

Function:

The pressure reducer protects the system from overpressure and pressure fluctuations

Brass pressure reducer, NF-certified, 3/4" FF

Comes with 2 multi-threaded fittings

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€83.54 Tax included

69.62 € tax excl.

Unité de vente : Pièce
R53900L0000FF20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information R539 FF 3/4" Pressure Reducer with Fittings

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Inlet pressure up to 25 bar
  • Adjustable downstream pressure from 1 to 6 bar
  • Factory-set to 3 bar
  • Maximum operating temperature: 80°C
  • Fluids: water
  • 2 downstream pressure gauge ports (F1/4")
  • Certified to NF 079 doc.4 - EN 1567

Construction:

  • CB752S dezincification-resistant brass body
  • Cover: PA66G38
  • Shutter: dezincification-resistant brass CW602N
  • Regulator: brass CW614N
  • Spring: EN 10270-1-DH (C98)
  • Seat: AISI303 stainless steel
  • Diaphragm: 14QE3224 EP
  • Seals: NBR

Caractéristiques techniques R539 FF 3/4" Pressure Reducer with Fittings

Data sheet

Reference
R53900L0000FF20
Matière
Laiton
Joint
NBR
Internes
Inox
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
3/4"
Pression maximum
25 bar
Température maximum
80°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS - EN 1567 - NF 079 doc 4
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523830028817

Download documentation

FT R53920

Fiche technique Réducteur de pression R539

Download (495.73KB)
