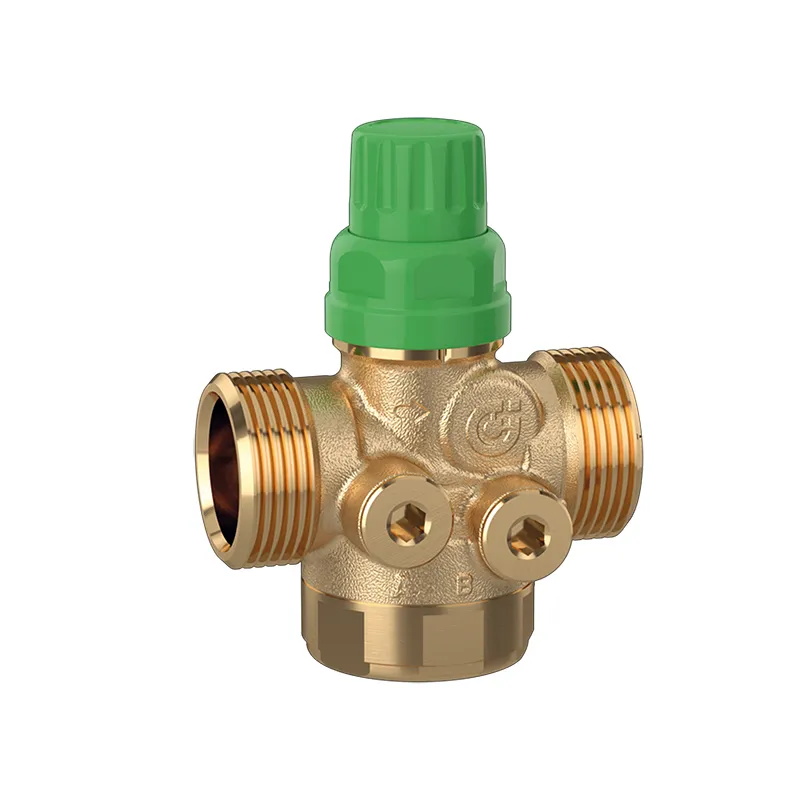

Vanne d'équilibrage PICV série 145 sans prises de pression.
search
  • Vanne d'équilibrage PICV série 145 sans prises de pression.

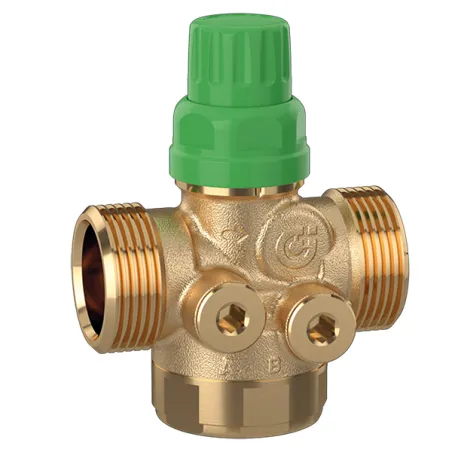

  • Vanne d'équilibrage PICV série 145 sans prises de pression
  • Dimensions vanne de régulation et d’équilibrage automatique indépendante de la pression
  • Schéma vanne de régulation et d’équilibrage automatique indépendante de la pression

Photos non contractuelles

Pressure-independent automatic control and balancing union valve

Function:

The pressure-independent automatic regulating and balancing valve is a device consisting of an automatic flow stabilizer and a regulating valve. It maintains a constant flow rate (with the ability to adjust it) regardless of variations in the differential pressure conditions of the circuit on which it is installed.

Additional sizes available from our sales representative

Maximum glycol content: 50%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
1/2" et 0,02 / 0,20 kvs (m³/h)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€84.36 Tax included

70.3 € tax excl.

Unité de vente : Pièce
VERISSP15KVS020
Diameter Ø and kVs(m³/h): 1/2" et 0,02 / 0,20 kVs (m³/h)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Pressure-independent automatic control and balancing valve with union fittings

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Flow is regulated in two ways:

  • Manually via the automatic flow stabilizer, to limit the maximum flow rate
  • Automatically, via the control valve, coupled with a proportional (0–10 V) or ON/OFF actuator, depending on the thermal requirements of the circuit to be controlled.

The pressure-independent automatic control and balancing valve (PICV) is supplied with fittings for pressure taps, upstream and downstream, to verify operating conditions.
The device is intended for HVAC systems.

  • Union fittings
  • Dezincification-resistant brass body, EPDM diaphragm
  • Max. operating pressure: 16 bar
  • Temperature range: -20 °C / 120 °C
  • Glycol: max. 50%
  • Differential pressure range: 25 / 400 Pa

Operating principle:

The pressure-independent automatic control and balancing valve (PICV) controls the flow rate of a circuit so that it is:

  • Regulated according to its thermal requirements
  • Constant regardless of variations in the circuit’s differential pressure.

Caractéristiques techniques Pressure-independent automatic control and balancing valve with union fittings

Data sheet

Reference
VERISSP15KVS020
Type de vanne
Vanne d'équilibrage
Matière
Laiton
Membrane
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression différentielle
25 / 400 Pa
Pression maximum
16 bar
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Équipements
Raccords unions
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT V145

Fiche technique vanne de régulation et d’équilibrage automatique indépendante de la pression

Download (5.45MB)

FT 145434H20

Fiche technique vanne d'équilibrage et de régulation indépendante

Download (2.11MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Pressure-independent automatic control and balancing valve with union fittings

Voici la liste des références et poids correspondants aux options séléctionnées.
VERISSP15KVS020 - Pressure-independent automatic control and balancing valve with union fittings - 1/2" et 0,02 / 0,20 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1/2" et 0,02 / 0,20 kVs (m³/h)
Packed weight 0,735kg
70.3 € tax excl.
Consulter
VERISSP20KVS040 - Pressure-independent automatic control and balancing valve with union fittings - 3/4" et 0,08 / 0,40 kVs (m³/h)
Diameter Ø and kVs(m³/h) 3/4" et 0,08 / 0,40 kVs (m³/h)
Packed weight 0,735kg
70.3 € tax excl.
Consulter
VERISSP20KVS080 - Pressure-independent automatic control and balancing valve with union fittings - 3/4" et 0,08 / 0,80 kVs (m³/h)
Diameter Ø and kVs(m³/h) 3/4" et 0,08 / 0,80 kVs (m³/h)
Packed weight 0,735kg
70.3 € tax excl.
Consulter
VERISSP25KVS040 - Pressure-independent automatic control and balancing valve with union fittings - 1" et 0,08 / 0,40 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1" et 0,08 / 0,40 kVs (m³/h)
Packed weight 0,84kg
72.28 € tax excl.
Consulter
VERISSP25KVS080 - Pressure-independent automatic control and balancing valve with union fittings - 1" et 0,08 / 0,80 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1" et 0,08 / 0,80 kVs (m³/h)
Packed weight 0,84kg
72.28 € tax excl.
Consulter
VERISSP25KVS120 - Pressure-independent automatic control and balancing valve with union fittings - 1" et 0,12 / 1,20 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1" et 0,12 / 1,20 kVs (m³/h)
Packed weight 0,84kg
72.28 € tax excl.
Consulter
VERISSP32KVS180 - Pressure-independent automatic control and balancing valve with union fittings - 1"1/4 et 0,18 / 1,80 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1"1/4 et 0,18 / 1,80 kVs (m³/h)
Packed weight 0,945kg
145.15 € tax excl.
Consulter
VERISSP32KVS300 - Pressure-independent automatic control and balancing valve with union fittings - 1"1/4 et 0,3 / 3,00 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1"1/4 et 0,3 / 3,00 kVs (m³/h)
Packed weight 0,945kg
145.15 € tax excl.
Consulter
Référence - Désignation Diameter Ø and kVs(m³/h) Packed weight Prix
VERISSP15KVS020 - Pressure-independent automatic control and balancing valve with union fittings - 1/2" et 0,02 / 0,20 kVs (m³/h) 1/2" et 0,02 / 0,20 kVs (m³/h) 0,735kg 70.3 € tax excl.
VERISSP20KVS040 - Pressure-independent automatic control and balancing valve with union fittings - 3/4" et 0,08 / 0,40 kVs (m³/h) 3/4" et 0,08 / 0,40 kVs (m³/h) 0,735kg 70.3 € tax excl.
VERISSP20KVS080 - Pressure-independent automatic control and balancing valve with union fittings - 3/4" et 0,08 / 0,80 kVs (m³/h) 3/4" et 0,08 / 0,80 kVs (m³/h) 0,735kg 70.3 € tax excl.
VERISSP25KVS040 - Pressure-independent automatic control and balancing valve with union fittings - 1" et 0,08 / 0,40 kVs (m³/h) 1" et 0,08 / 0,40 kVs (m³/h) 0,84kg 72.28 € tax excl.
VERISSP25KVS080 - Pressure-independent automatic control and balancing valve with union fittings - 1" et 0,08 / 0,80 kVs (m³/h) 1" et 0,08 / 0,80 kVs (m³/h) 0,84kg 72.28 € tax excl.
VERISSP25KVS120 - Pressure-independent automatic control and balancing valve with union fittings - 1" et 0,12 / 1,20 kVs (m³/h) 1" et 0,12 / 1,20 kVs (m³/h) 0,84kg 72.28 € tax excl.
VERISSP32KVS180 - Pressure-independent automatic control and balancing valve with union fittings - 1"1/4 et 0,18 / 1,80 kVs (m³/h) 1"1/4 et 0,18 / 1,80 kVs (m³/h) 0,945kg 145.15 € tax excl.
VERISSP32KVS300 - Pressure-independent automatic control and balancing valve with union fittings - 1"1/4 et 0,3 / 3,00 kVs (m³/h) 1"1/4 et 0,3 / 3,00 kVs (m³/h) 0,945kg 145.15 € tax excl.
