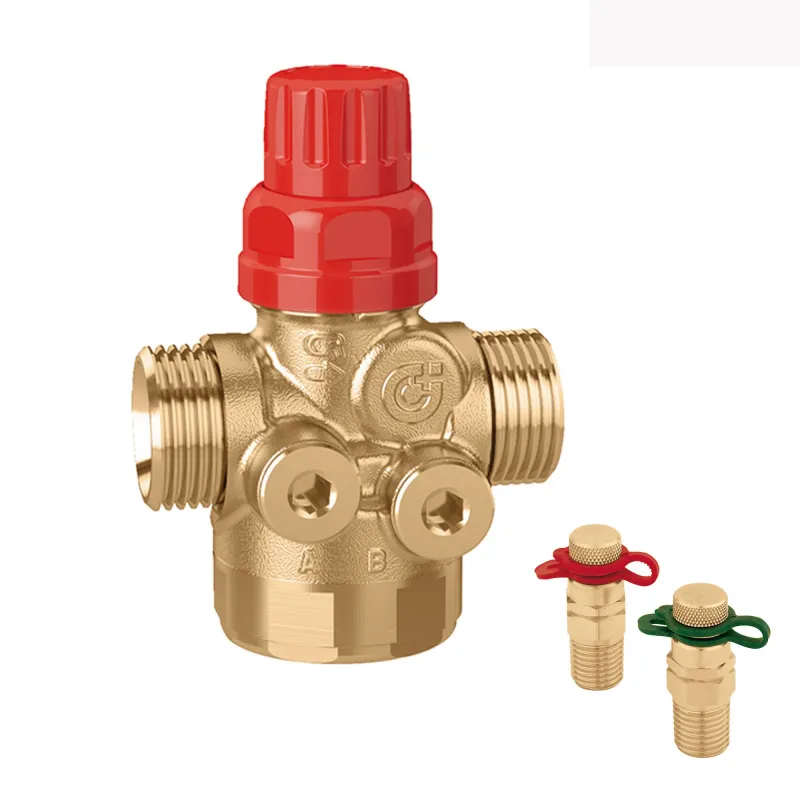

Automatic control and balancing valve with pressure taps

Function:

The pressure-independent automatic regulating and balancing valve is a device consisting of an automatic flow stabilizer and a regulating valve. It maintains a constant flow rate (with the ability to adjust it) regardless of variations in the differential pressure conditions of the circuit on which it is installed.

Maximum glycol content: 50%

Eurocone fittings: see below or click here

Plus de détails
1
1/2" et 0,02 / 0,20 kvs (m³/h)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€91.45 Tax included

76.21 € tax excl.

Unité de vente : Pièce
VERIAVP15KVS020
Diameter Ø and kVs(m³/h): 1/2" et 0,02 / 0,20 kVs (m³/h)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Automatic control and balancing valve with pressure taps

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Flow is regulated in two ways:

  • Manually via the automatic flow stabilizer, to limit the maximum flow rate
  • Automatically, via the control valve, coupled with a proportional (0–10 V) or ON/OFF actuator, depending on the thermal requirements of the circuit to be controlled.

The pressure-independent automatic control and balancing valve (PICV) is supplied with fittings for pressure taps, upstream and downstream, to verify operating conditions.
The device is intended for HVAC systems.

  • Union fittings
  • Dezincification-resistant brass body, EPDM diaphragm
  • Max. operating pressure: 16 bar
  • Temperature range: -20 °C / 120 °C
  • Glycol: max. 50%
  • Differential pressure range: 25 / 400 Pa

Operating principle:

The pressure-independent automatic control and balancing valve (PICV) controls the flow rate of a circuit so that it is:

  • Regulated according to its thermal requirements
  • Constant regardless of variations in the circuit’s differential pressure.

Caractéristiques techniques Automatic control and balancing valve with pressure taps

Data sheet

Reference
VERIAVP15KVS020
Type de vanne
Vanne d'équilibrage
Matière
Laiton
Membrane
EPDM
Type de raccordement
Eurocône
Raccordement
Mâle
Diamètre
3/4"
Débit
En fonction du modèle choisi
Pression différentielle
25 / 400 Pa
Pression maximum
16 bar
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT V145

Fiche technique vanne de régulation et d’équilibrage automatique indépendante de la pression

Download (5.45MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Automatic control and balancing valve with pressure taps

Voici la liste des références et poids correspondants aux options séléctionnées.
VERIAVP15KVS020 - Automatic control and balancing valve with pressure taps - 1/2" et 0,02 / 0,20 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1/2" et 0,02 / 0,20 kVs (m³/h)
Packed weight 0,84kg
76.21 € tax excl.
Consulter
VERIAVP20KVS040 - Automatic control and balancing valve with pressure taps - 3/4" et 0,08 / 0,40 kVs (m³/h)
Diameter Ø and kVs(m³/h) 3/4" et 0,08 / 0,40 kVs (m³/h)
Packed weight 0,84kg
76.21 € tax excl.
Consulter
VERIAVP20KVS080 - Automatic control and balancing valve with pressure taps - 3/4" et 0,08 / 0,80 kVs (m³/h)
Diameter Ø and kVs(m³/h) 3/4" et 0,08 / 0,80 kVs (m³/h)
Packed weight 0,84kg
78.85 € tax excl.
Consulter
VERIAVP25KVS040 - Automatic control and balancing valve with pressure taps - 1" et 0,08 / 0,40 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1" et 0,08 / 0,40 kVs (m³/h)
Packed weight 0,945kg
81.45 € tax excl.
Consulter
VERIAVP25KVS080 - Automatic control and balancing valve with pressure taps - 1" et 0,08 / 0,80 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1" et 0,08 / 0,80 kVs (m³/h)
Packed weight 0,945kg
81.45 € tax excl.
Consulter
VERIAVP25KVS120 - Automatic control and balancing valve with pressure taps - 1" et 0,12 / 1,20 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1" et 0,12 / 1,20 kVs (m³/h)
Packed weight 0,945kg
81.45 € tax excl.
Consulter
VERIAVP32KVS180 - Automatic control and balancing valve with pressure taps - 1"1/4 et 0,18 / 1,80 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1"1/4 et 0,18 / 1,80 kVs (m³/h)
Packed weight 1,05kg
151.06 € tax excl.
Consulter
VERIAVP32KVS300 - Automatic control and balancing valve with pressure taps - 1"1/4 et 0,3 / 3,00 kVs (m³/h)
Diameter Ø and kVs(m³/h) 1"1/4 et 0,3 / 3,00 kVs (m³/h)
Packed weight 1,05kg
151.06 € tax excl.
Consulter
Référence - Désignation Diameter Ø and kVs(m³/h) Packed weight Prix
VERIAVP15KVS020 - Automatic control and balancing valve with pressure taps - 1/2" et 0,02 / 0,20 kVs (m³/h) 1/2" et 0,02 / 0,20 kVs (m³/h) 0,84kg 76.21 € tax excl.
VERIAVP20KVS040 - Automatic control and balancing valve with pressure taps - 3/4" et 0,08 / 0,40 kVs (m³/h) 3/4" et 0,08 / 0,40 kVs (m³/h) 0,84kg 76.21 € tax excl.
VERIAVP20KVS080 - Automatic control and balancing valve with pressure taps - 3/4" et 0,08 / 0,80 kVs (m³/h) 3/4" et 0,08 / 0,80 kVs (m³/h) 0,84kg 78.85 € tax excl.
VERIAVP25KVS040 - Automatic control and balancing valve with pressure taps - 1" et 0,08 / 0,40 kVs (m³/h) 1" et 0,08 / 0,40 kVs (m³/h) 0,945kg 81.45 € tax excl.
VERIAVP25KVS080 - Automatic control and balancing valve with pressure taps - 1" et 0,08 / 0,80 kVs (m³/h) 1" et 0,08 / 0,80 kVs (m³/h) 0,945kg 81.45 € tax excl.
VERIAVP25KVS120 - Automatic control and balancing valve with pressure taps - 1" et 0,12 / 1,20 kVs (m³/h) 1" et 0,12 / 1,20 kVs (m³/h) 0,945kg 81.45 € tax excl.
VERIAVP32KVS180 - Automatic control and balancing valve with pressure taps - 1"1/4 et 0,18 / 1,80 kVs (m³/h) 1"1/4 et 0,18 / 1,80 kVs (m³/h) 1,05kg 151.06 € tax excl.
VERIAVP32KVS300 - Automatic control and balancing valve with pressure taps - 1"1/4 et 0,3 / 3,00 kVs (m³/h) 1"1/4 et 0,3 / 3,00 kVs (m³/h) 1,05kg 151.06 € tax excl.
