Draft regulator for solid-fuel boiler, brass, 3/4"

Régulateurs et stabilisateurs de tirage

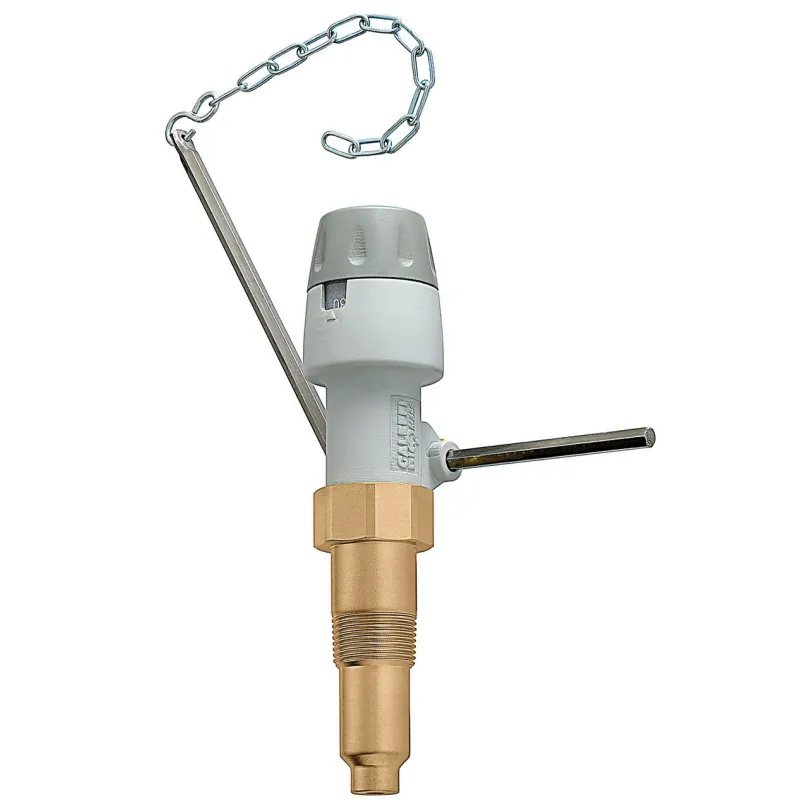

Régulateur de tirage pour chaudière à combustible solide laiton 3/4"
search
  • Régulateur de tirage pour chaudière à combustible solide laiton 3/4"
  • Schéma Régulateur de tirage pour chaudière à combustible solide laiton 3/4"
  • Schéma d'installation Régulateur de tirage pour chaudière à combustible solide laiton 3/4"

Photos non contractuelles

Thermostatic bulb-type draft regulator

Function:

The draft regulator installed on a solid fuel boiler automatically regulates the incoming air flow thanks to its immersed thermostatic bulb.

Description:

  • Brass body and synthetic materials reinforced with 30% fiberglass, offering high resistance to direct heat and radiation.
  • Adjustable from 30 to 90 °C with dual-view display depending on the unit’s orientation (horizontal or vertical).
    3/4" connection
  • 140 mm lever, 1.2 m chain, max. load 10 Nm

Maximum glycol content: 50%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€79.60 Tax included

66.33 € tax excl.

Unité de vente : Pièce
RESTABL00000M20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Draft regulator for solid-fuel boiler, brass, 3/4"

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Body: PA6G30
  • Handle: PA6G30
  • Adjustment ring: Brass CW614N
  • Piston: Brass CW614N
  • Spring: Stainless steel
  • Lever: Zinc-plated iron
  • Chain: Zinc-plated iron
  • Bulb: wax

Applications:

  • Fluids: water, water + glycol
  • Maximum glycol content: 50%
  • Maximum operating temperature (bulb): 120°C
  • Adjustment range: 30–90°C
  • Maximum operating pressure: 10 bar
  • Maximum load on the chain: 10 N
  • Chain length: 1200 mm

Synthetic materials with high resistance to heat and radiation

Caractéristiques techniques Draft regulator for solid-fuel boiler, brass, 3/4"

Data sheet

Reference
RESTABL00000M20
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
3/4"
Pression maximum
10 bar
Température maximum
120°C
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523830034023

Download documentation

FT R85

Fiche technique régulateur de tirage pour chaudière à combustible solide

Download (454.7KB)
